SECTION 7

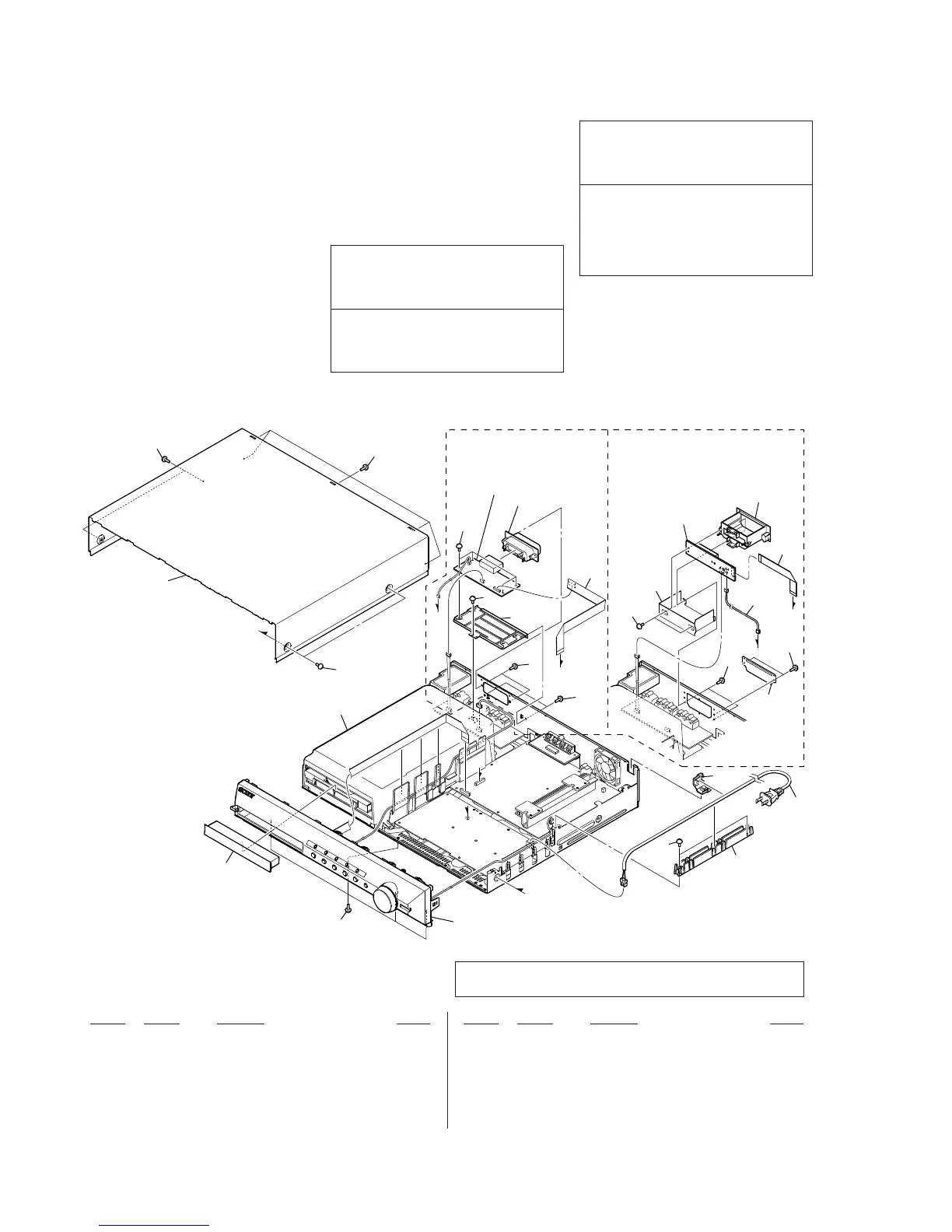

EXPLODED VIEWS
1 4-120-908-01 PANEL, LOADING (DCY)
2 3-077-331-21 +BV3 (3-CR)
3 4-120-919-01 CASE (DCY)
4 3-363-099-22 SCREW (CASE 3 TP2)
5 3-704-515-32 SCREW (BV/RING)
6 3-077-331-01 +BV3 (3-CR)
7 1-828-331-11 WIRE (FLAT TYPE) (13 CORE)
8 1-828-330-11 WIRE (FLAT TYPE) (13 CORE)
9 3-077-331-11 +BV3 (3-CR)
10 3-703-244-00 CORD BUSH (2104)
0 11 1-834-966-41 POWER-SUPPLY CORD (EA, E3)
0 11 1-834-978-11 CORD, POWER (US, CND)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
7-1. CASE SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifi é.
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color
• Abbreviation
CND : Canadian model
E3 : 240V AC area in E model
EA : Saudi Arabia model
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
9 contiennent des informations confi den-
tielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé
et / ou réparé.
1
3
4
4
5
9
2
6
2
7
6
8
9
10
11
2
9
2
"
#
#
"
$
$
$
#
not supplied
not supplied
not supplied
(S-AIR-CON board)
not supplied
(S-AIR INCLUDE board)
not supplied
not
supplied
not
supplied
not
supplied
not
supplied
back panel section
front panel section
(HDX287WC/HDX587WC/
HDX589W/HDX686W)
(HDX285/HDX585/HDX685)
Note: If wire (fl at type) is replaced, install it after bending it in the
same form as thet before replacement
