HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W
17

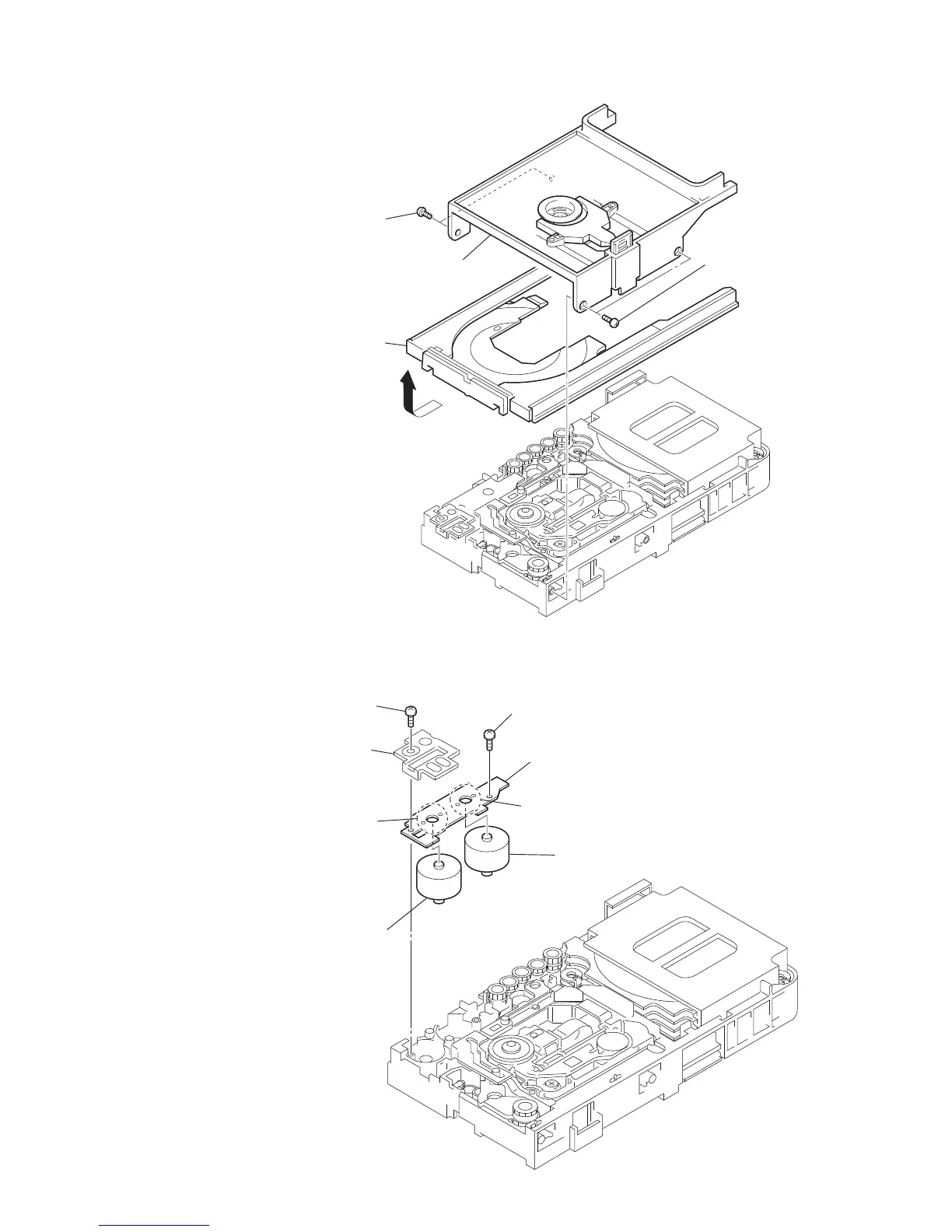

3-11. TRAY (MAIN) ASSY
3-12. MOTOR BOARD
tray (main) assy
Remove the tray (main) assy
in the direction of the arrow.
bracket (top) block
two screws
(BTTP M2.6)
two screws
(BTTP M2.6)
screw
(BTTP M2.6)
cover (PWB)
screw
(BTTP M2.6)
MOTOR board
Remove two solders.
motor (81) assy (loading)
(M761)
Remove two solders.
motor (81) assy (stocker up/down)
(M762 )
