82
HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W

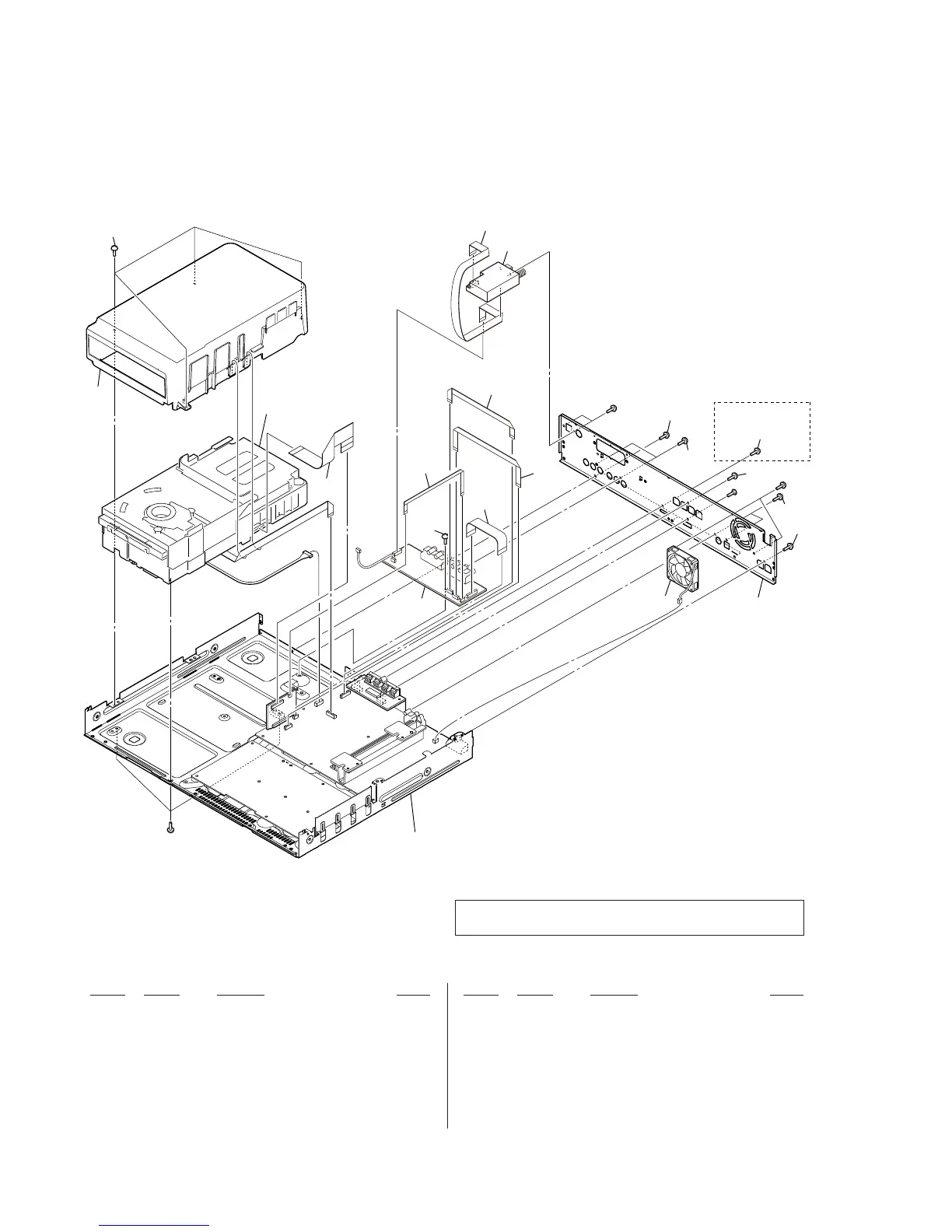

7-3. BACK PANEL SECTION
101 4-120-915-01 COVER (CDM-DCY)
102 3-077-331-21 +BV3 (3-CR)
103 1-828-370-11 WIRE (FLAT TYPE) (21 CORE)
104 A-1602-537-A I/O BOARD, COMPLETE
105 1-828-347-11 WIRE (FLAT TYPE) (17 CORE)
106 1-828-289-11 WIRE (FLAT TYPE) (5 CORE)
107 1-828-310-11 WIRE (FLAT TYPE) (9 CORE)
108 1-828-955-11 WIRE (FLAT TYPE) (9 CORE)
109 1-693-778-11 TUNER (FM/AM) (EA, E3)
109 1-693-779-11 TUNER (FM/AM) (US, CND)
110 3-077-331-01 +BV3 (3-CR)
M001 1-787-396-11 D.C. FAN (50 SQUARE)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
#3 7-682-547-04 SCREW +B 3X6
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101
102
103
104
105
106
102
107
110
110
110
102
110
110
106
108
109
#1
#3
#2
#1
not supplied
M001
DVD mechanism deck
section-1
(CDM81C-DVBU101)
MAIN/POWER board section
(US, CND)
Note: If wire (fl at type) is replaced, install it after bending it in the
same form as thet before replacement
To Next Page
