HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W
HCD-HDX285/HDX287WC/HDX585/HDX587WC/HDX589W/HDX685/HDX686W
3333
For Schematic Diagrams.
Note:
• All capacitors are in μF unless otherwise noted. (p: pF) 50
WV or less are not indicated except for electrolytics and
tantalums.
• All resistors are in Ω and 1/4 W or less unless otherwise
specifi ed.
•
f
: internal component.
• 2 : nonfl ammable resistor.
• 5 : fusible resistor.
• C : panel designation.
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
• A : B+ Line.
• B : B– Line.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : TUNER
[ ] : DVD PLAY
*
: Impossible to measure
• Voltages are taken with VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production
tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F : AUDIO
J : CD/DVD PLAY
f : TUNER
i : AUDIO IN
E : VIDEO
• Abbreviation
CND : Canadian model
E3 : 240V AC area in E model
EA : Saudi Arabia model
For Printed Wiring Boards.
Note:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
•
f
: internal component.
• : Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
• Indication of transistor.
C
B
These are omitted.
E
Q
B
These are omitted.
CE
Q
Note:
The components identi-
fi ed by mark 0 or dotted
line with mark 0 are criti-
cal for safety.
Replace only with part
number specifi ed.
Note:
Les composants identifi és
par une marque 0 sont
critiques pour la sécurité.
Ne les remplacer que par
une piéce portant le nu-
méro spécifi é.
Caution:
Pattern face side:
(Conductor Side)
Parts face side:
(Component Side)
Parts on the pattern face side seen from
the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.

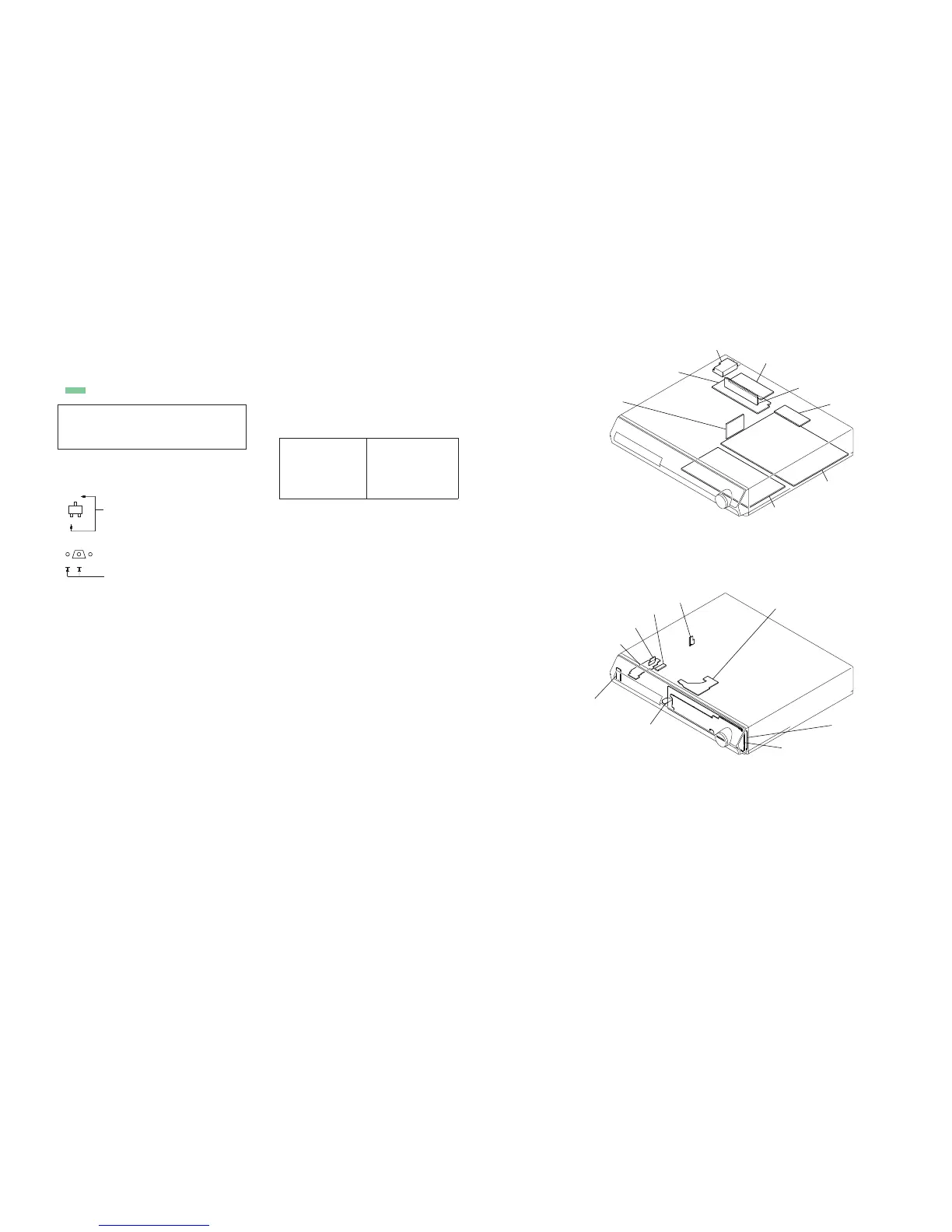

• Circuit Boards Location
• MAIN board is multi-layer printed board.
However, the patterns of intermediate layers have not
been included in diagrams.
• Abbreviation
CND : Canadian model
E3 : 240V AC area in E model
EA : Saudi Arabia model
I/O board
TUNER (FM/AM)
KEY board
SERIPARA board
SPEAKER board
POWER board
P-SW board
MAIN board
MOTOR board
SW (2) board
RELAY board
SW (1) board
SENSOR board
ENCODER board
S-AIR INCLUDE board
(HDX287WC/HDX587WC
/HDX589W/HDX686W)
S-AIR-CON board
(HDX285/HDX585/HDX685)
FL-JACK board
