Sony HCD-HX3 - Front Panel Section

67
HCD-HX3/HX5/HX7

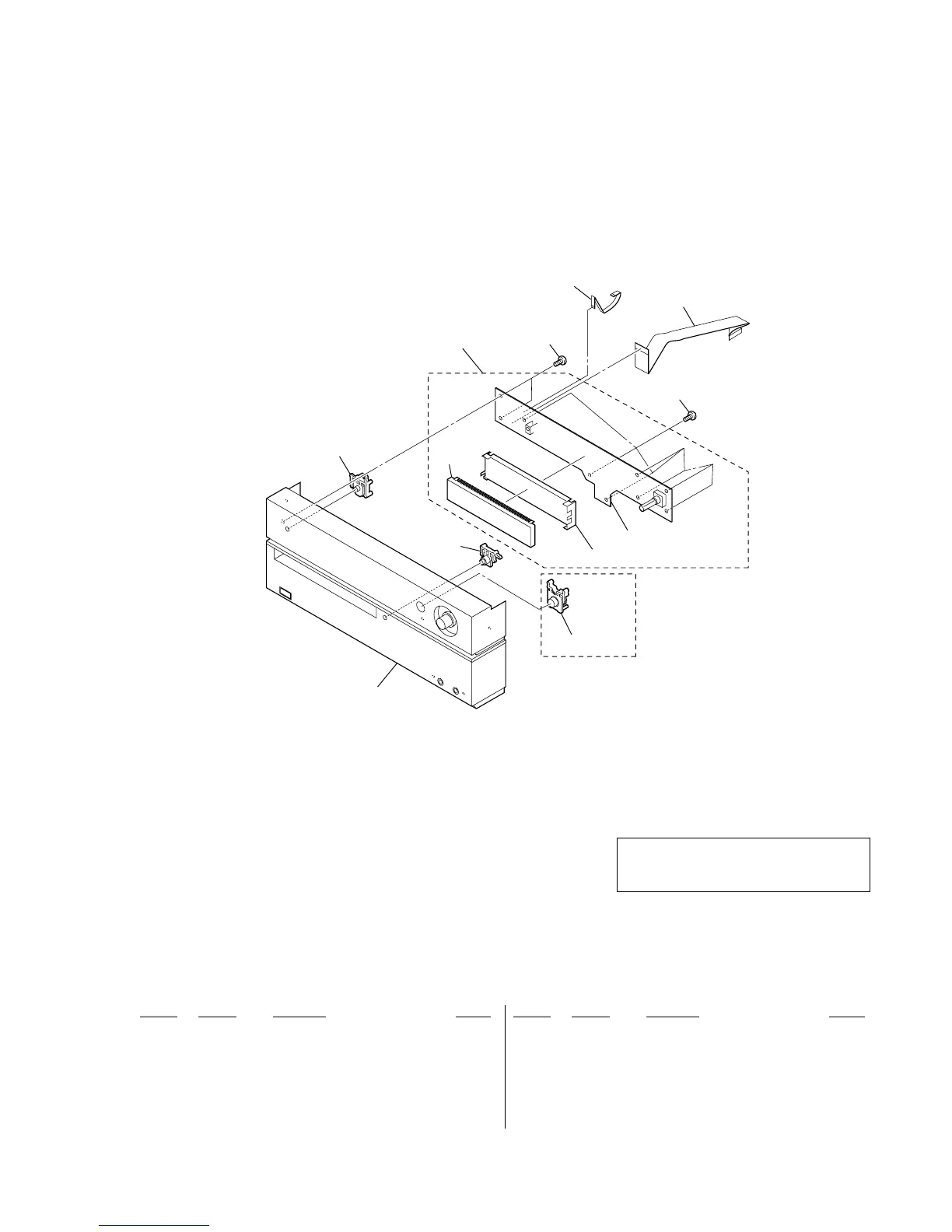

7-4. FRONT PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151 X-2177-357-1 PANEL (FRONT) ASSY (HX3)
151 X-2177-359-1 PANEL (FRONT) ASSY (HX5)
151 X-2177-360-1 PANEL (FRONT) ASSY (HX7)
152 X-2177-364-1 BUTTON (BLUETOOTH) ASSY (HX5/HX7)
153 2-895-141-01 BUTTON (EJECT)
154 X-2177-363-1 BUTTON (POWER) ASSY
156 A-1243-013-A FRONT PANEL BOARD, COMPLETE (HX5/HX7)
156 A-1243-276-A FRONT PANEL BOARD, COMPLETE (HX3)
157 3-087-053-01 +BVTP2.6 (3CR)
158 1-831-756-21 CABLE, FLEXIBLE FLAT (5 CORE)
159 1-831-797-21 CABLE, FLEXIBLE FLAT (17 CORE)
FL901 1-519-939-11 INDICATOR TUBE, FLUORESCENT
not supplied
(HX5/HX7)
FL901
151
154
153
156
157
158
159
152
FRONT PANEL board
157
Note: If wire (flat type) is replaced, install it after
bending it in the same form as that before
replacement.
