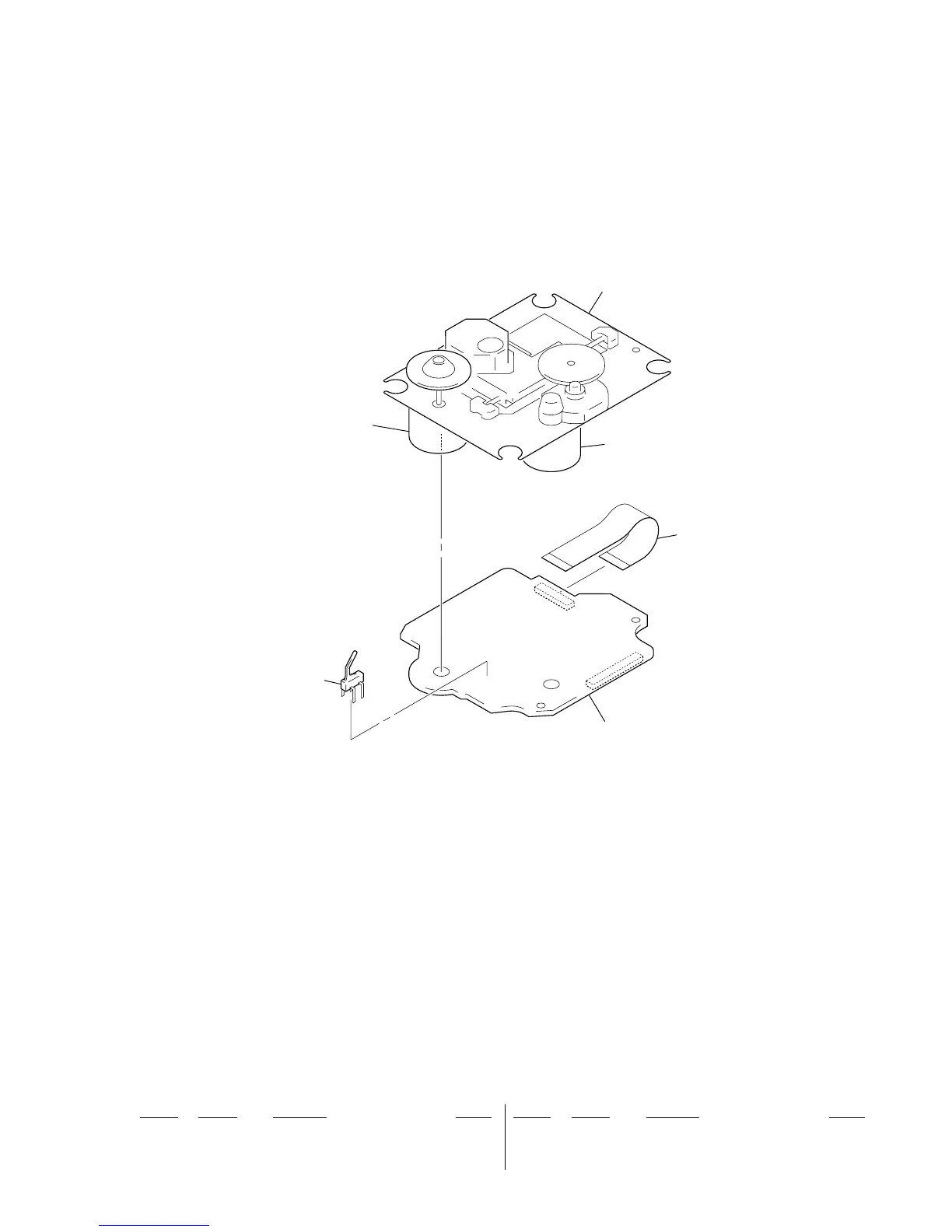

7-8. BASE UNIT SECTION
(BU-K6BD90-WOD: HX7)
(BU-K6BD90U-WOD: HX3/HX5)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
0 351 A-4735-357-A BASE ASSY, OP (KSM-213D)
352 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE)
353 A-1217-914-A CD BOARD, COMPLETE (HX7)
353 A-1229-580-A CD BOARD, COMPLETE (HX3/HX5)
S201 1-771-853-11 SWITCH, DETECTION (LIMIT)
351
(including sled motor (M402),
spindle motor (M401))
352
353
S201
sled motor (M402)
spindle motor (M401)
