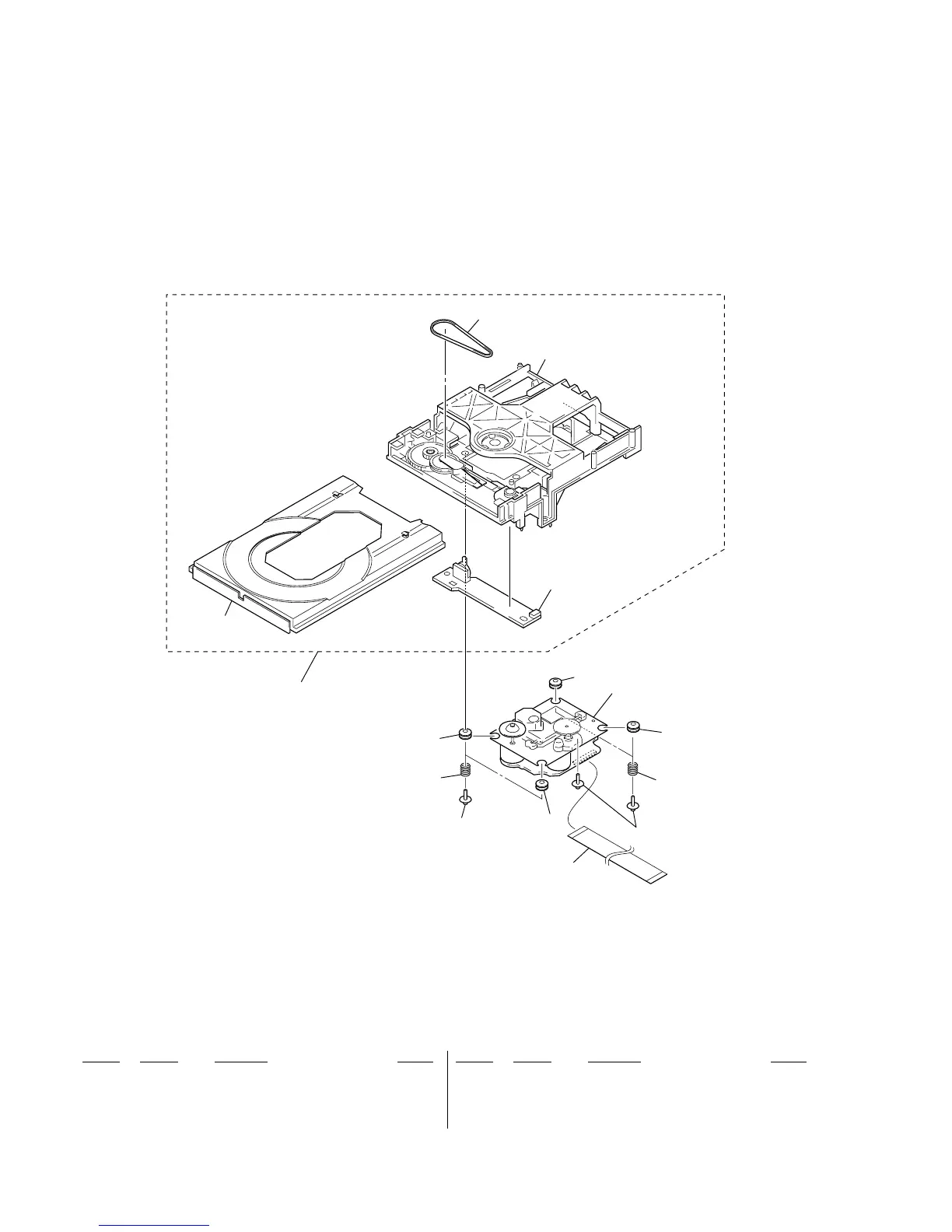

7-7. LOADING MECHANISM SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
301 A-1242-967-A LOADING (BK) ASSY
302 3-080-478-01 BELT
303 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
304 4-227-045-41 SPRING (INSULATOR)
305 4-229-005-41 INSULATOR
306 1-832-615-21 CABLE, FLEXIBLE FLAT (21 CORE) (HX7)
306 1-832-635-21 CABLE, FLEXIBLE FLAT (25 CORE) (HX3/HX5)
base unit section
205
305
303
305
306
303
305
304
304
302
not supplied
(MOTOR board)
not supplied
not supplied
301
