HCD-M10
5454

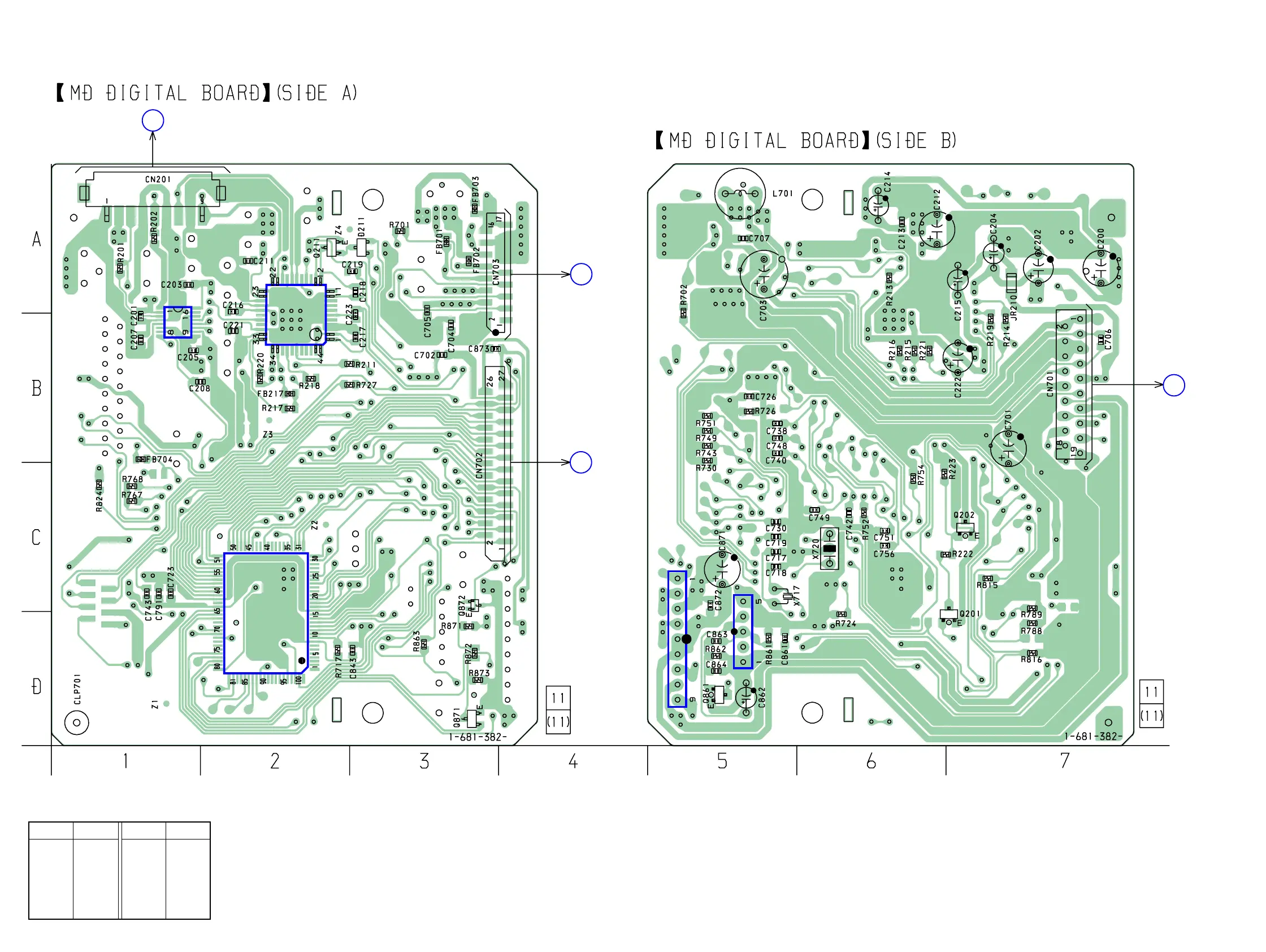

6-11. PRINTED WIRING BOARD – MD DIGITAL BOARD –
• See page 41 for Circuit Boards Location.
IC701
IC871
IC861
IC201
IC211
B
MAIN
BOARD
(Page 53)
D
BD
BOARD
(Page 48)
C
BD
BOARD
(Page 48)
E
MAIN
BOARD
(Page 53)
Ref. No. Location
D211 A-3
IC201 B-1
IC211 B-2
IC701 D-2
IC861 D-5
IC871 D-5
• Semiconductor
Location
Ref. No. Location
Q201 D-7
Q202 C-7
Q211 A-2
Q861 D-5
Q871 D-3
Q872 C-3
