Sony HCD-M10 - Exploded Views

72
HCD-M10

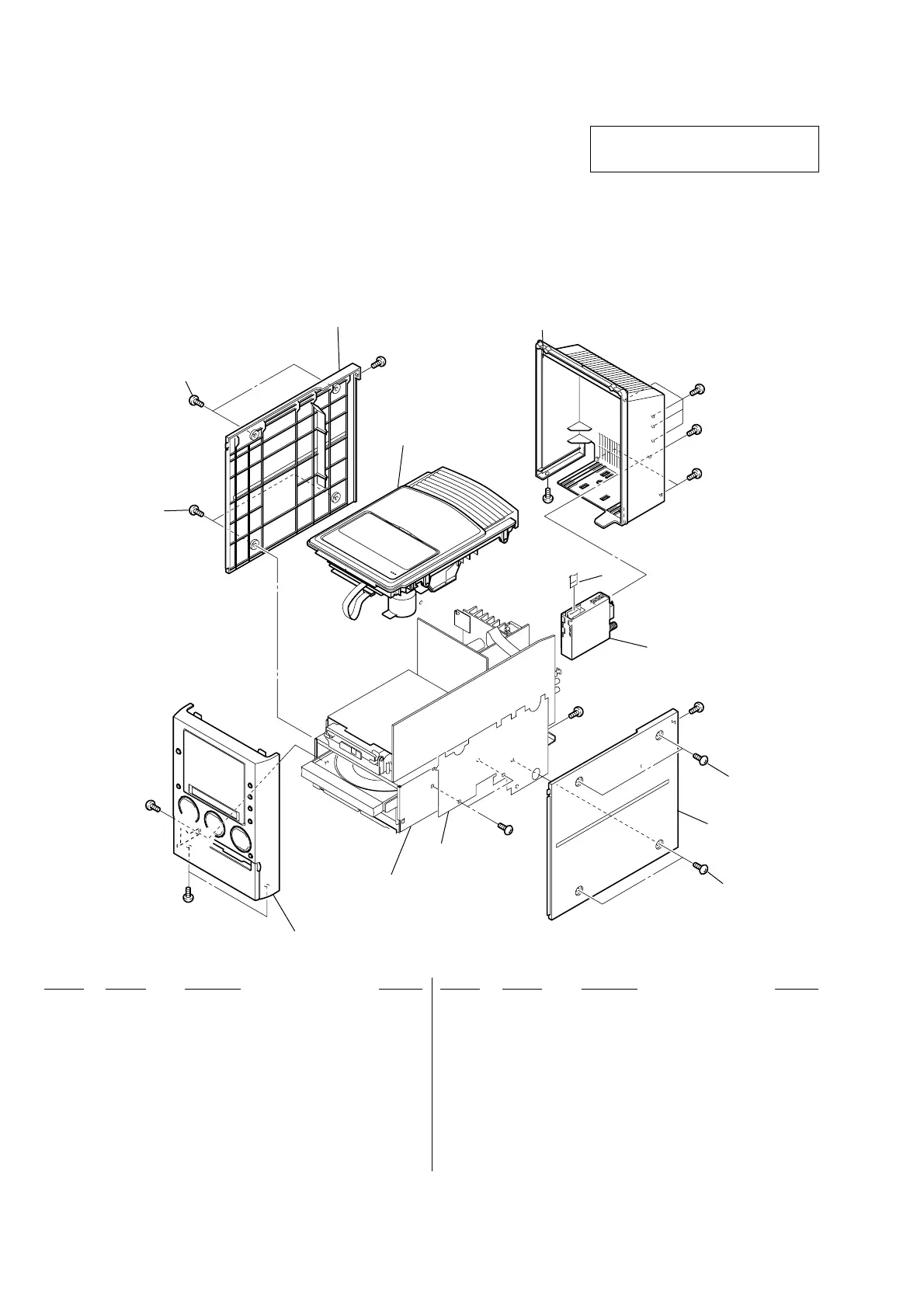

7-1. CASE SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
6
1
1
6
TU301
#2
#2
#2
#2
#2
#2
#2
#1
#3
#3
4
5
3
2
Top cover section
Chassis section
not supplied
Front panel section
1 3-363-099-11 SCREW (CASE 3 TP2)
2 4-236-671-01 CASE (L) (WHITE)
2 4-236-671-11 CASE (L) (SILVER)
2 4-236-671-21 CASE (L) (BLACK)
3 4-236-684-21 PANEL, BACK (WHITE,SILVER) (AEP,UK)
3 4-236-684-32 PANEL, BACK (BLACK) (AEP,UK)
3 4-236-684-41 PANEL, BACK (HK,SP)
3 4-236-684-61 PANEL, BACK (KR)
3 4-236-684-71 PANEL, BACK (AUS)
4 4-236-672-01 CASE (R) (WHITE)
4 4-236-672-11 CASE (R) (SILVER)
4 4-236-672-21 CASE (R) (BLACK)
5 1-773-004-11 WIRE (FLAT TYPE) (15 CORE)
6 3-363-099-81 SCREW (CASE 3 TP2)
TU301 1-693-473-21 TUNER
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-647-91 SCREW +BVTP 3X10 TYPE2 TT(B)
#3 7-685-781-01 SCREW +BVTP 3X6 (S)
SECTION 7
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
• Abbreviation
HK : Hong Kong model
SP : Singapore model
KR : Korea model
AUS: Australian model
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts of Color Cabinet’s Color
