9
HCD-M10

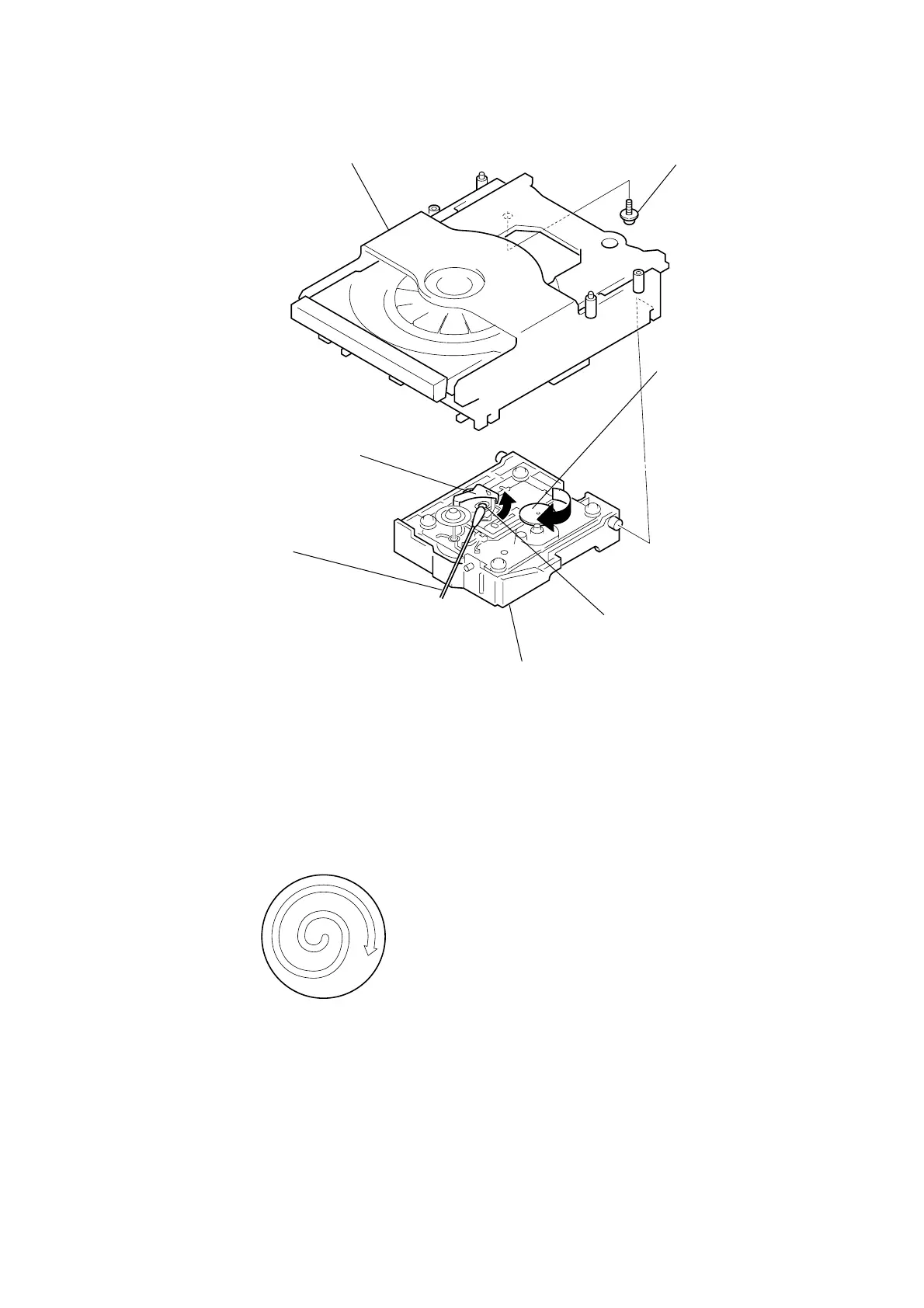

CLEANING THE OPTICAL PICK-UP (CD PLAYER)
1
Floating screw
3
BU-K4BD43
2
CD mechanism deck
4
Rotate it in the
direction of the arrow
A
.
A
B
5
Move it in the
direction of the arrow
B
.
6
Clean the lens block
by cotton swab
Optical pick-up
Note 1:
In cleaning the lens, do not apply an excessive force
As the optical pick-up is vulnerable, application of
excessive force could damage the lens holder.
Note 2:
In cleaning, do not use a cleaner other than exclusive
cleaning liquid. (KK-91 or isopropyl alcohol)
Note 3:
Wipe the obujective lens spirally from center toward
outside. (See Figure A)
(FIGURE A)
To Next Page
