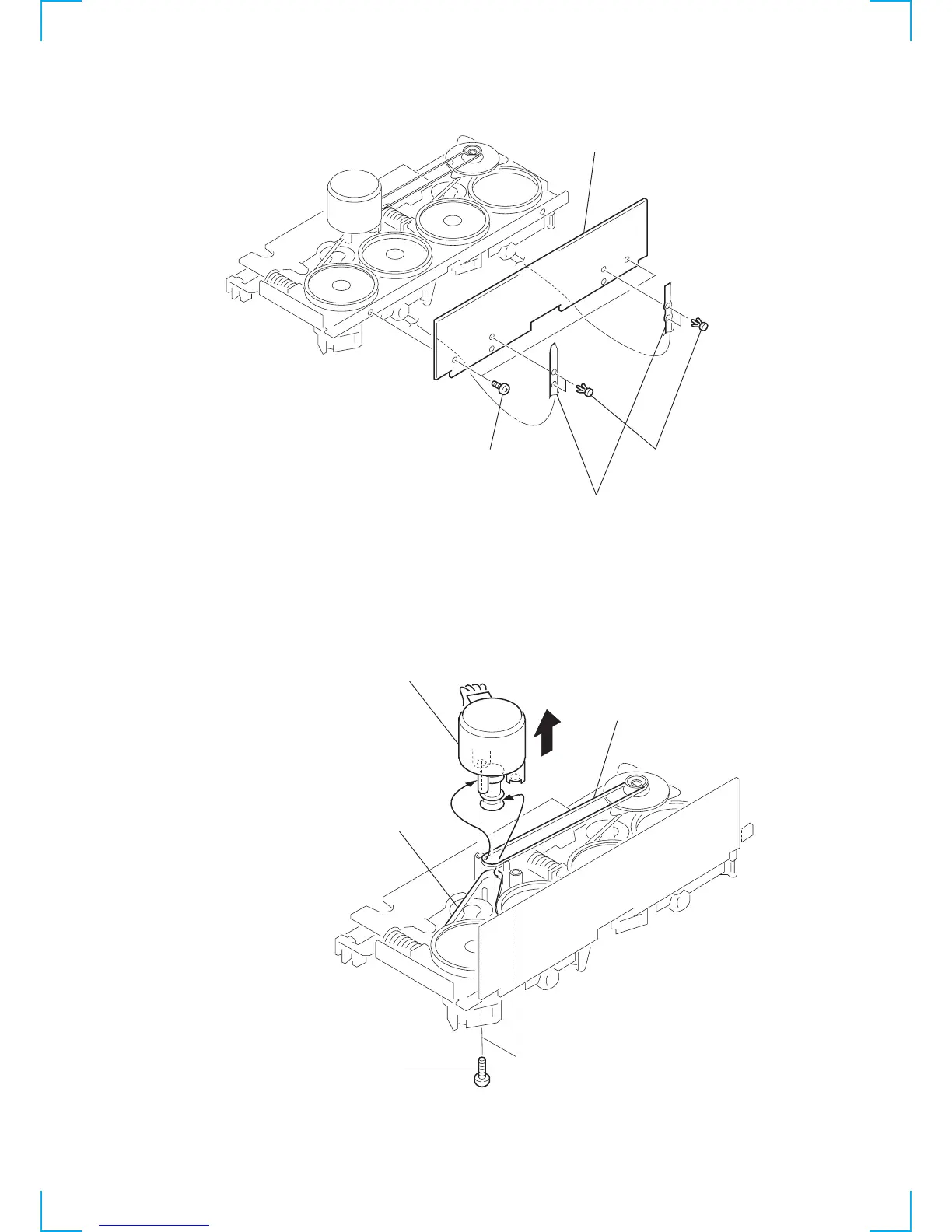

2-14. AUDIO BOARD
2-15. CAPSTAN MOTOR (M1)
4 AUDIO board
3 Two screws
(BTP 2.6
× 4)
2 Break the soldering of two
flexible flat cables.
1 Four rivets
3 Hang the belt.
1 Two screws
(BTP 2.6
× 8)
2 Hang the belt.
4 Removal the capstan motor
to direction of the arrow.
