Sony HCD-MC3AV - Printed Wiring Board BD Section

HCD-MC3AV
M
TO
MAIN BOARD
CN402
(Page 52)
N
TO
MAIN BOARD
CN401
(Page 52)
1-664-
353-
12
(12)
BD BOARD
M
M
M101
SPINDLE
MOTOR
M102
SLED
MOTOR
OPTICAL
PICK-UP
E
E
E
(LIMIT)
TP
(DVDD)
TP
(FE)
TP
(TE)
TP
(VC)
TP
(RF)
TP
(PLCK)
JW135
TP
(TOFF)
12
A
B
C
D
E
F
G
H
I
J
345678910
16
KSS-213BA/F-NP

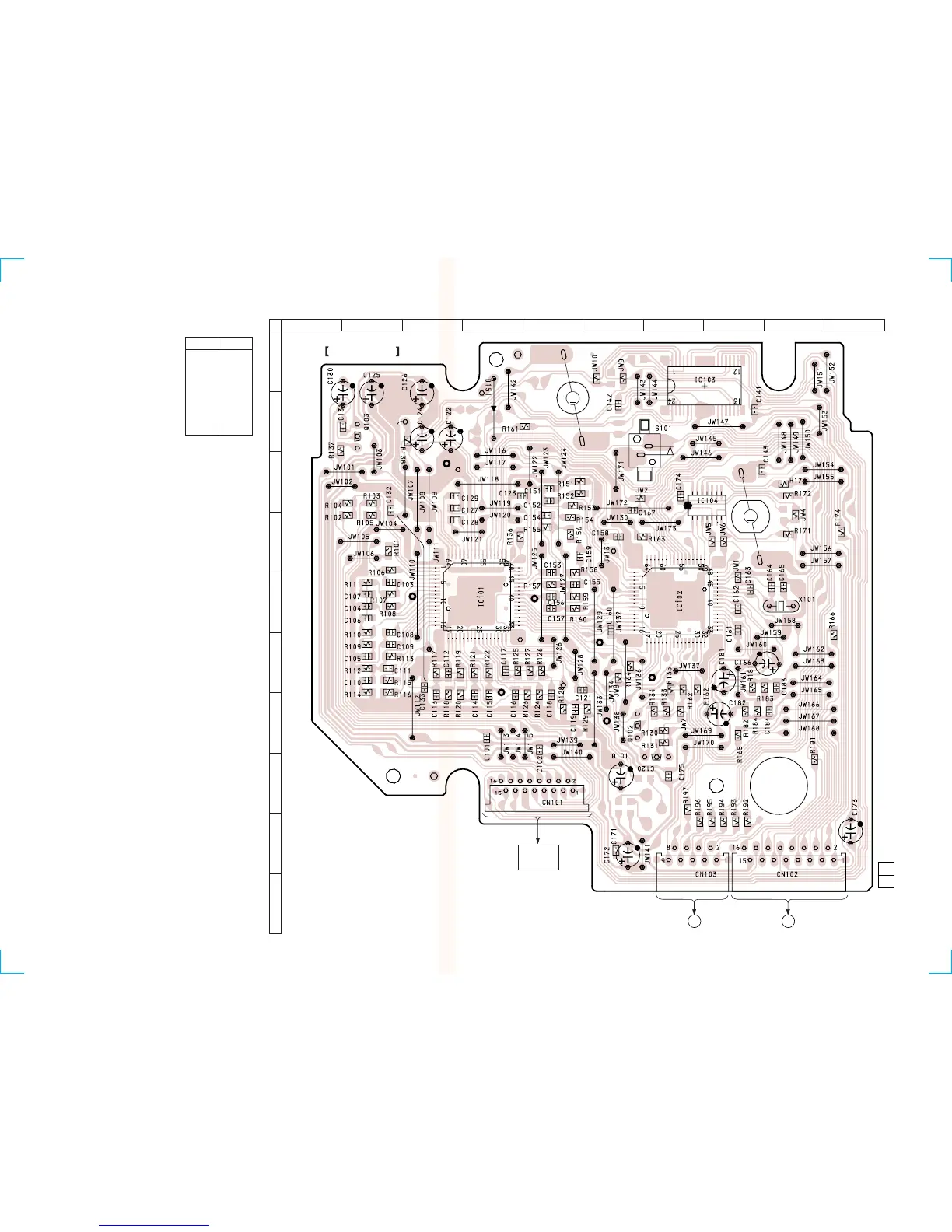

6-3. PRINTED WIRING BOARD BD SECTION • See page 33 for Circuit Boards Location.
Ref. No. Location
D151 B-4
IC101 E-4
IC102 E-7
IC103 B-8
IC104 C-8
Q101 H-6
Q102 G-6
Q103 B-2
• Semiconductor
Location
— 35 — — 36 —
