Sony HCD-MC3AV - Page 61

— 87 —
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

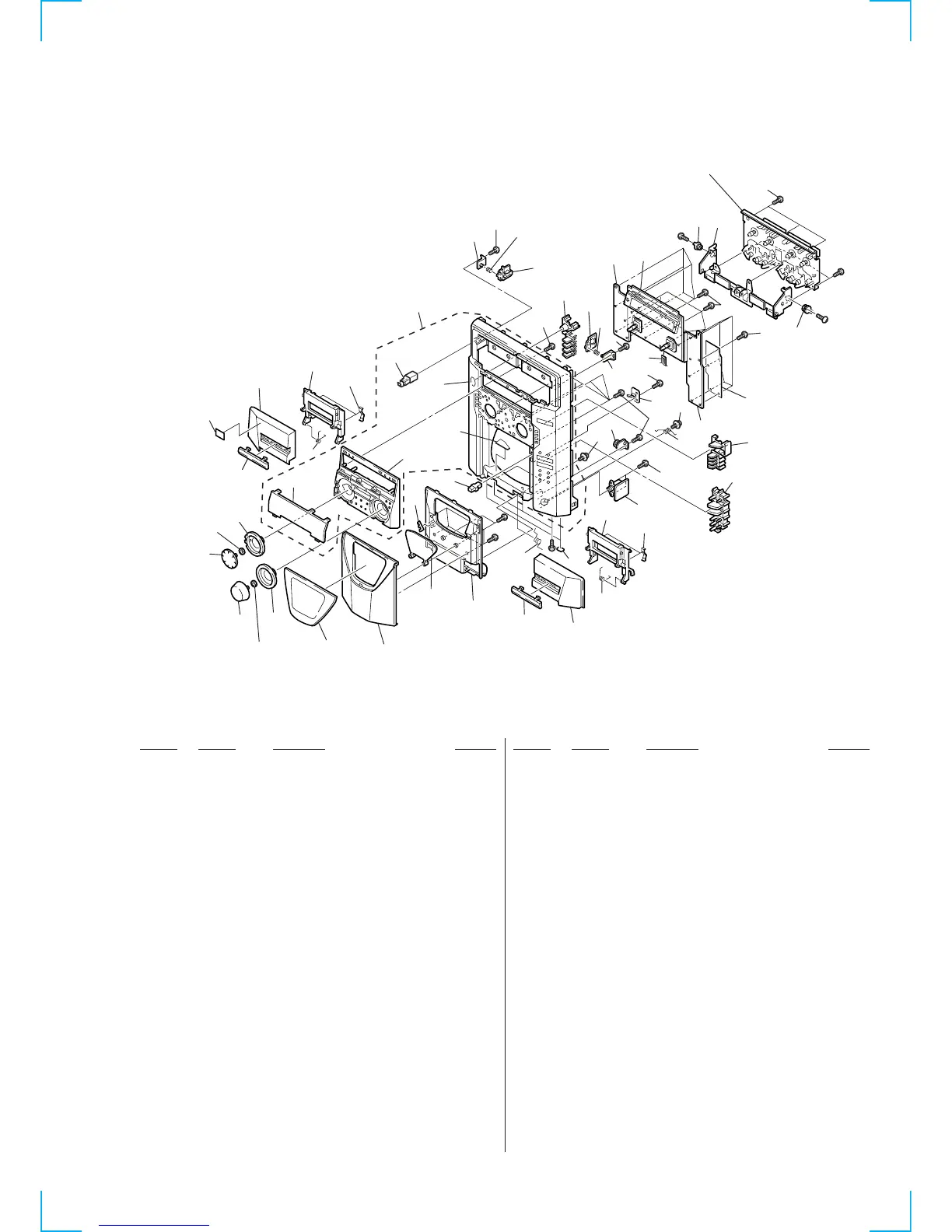

7-2. FRONT PANEL SECTION
51 4-222-507-01 CDDOOR (FRONT)
52 4-222-508-01 PLATE (CD DOOR)
53 4-222-483-01 PING(VOLUME)
54 4-222-537-01 SPRING (LOCK), COMPRESSION
55 4-222-486-01 KNOB(VOLUME)
56 4-222-482-01 RING(SELECTOR)
* 57 4-991-854-01 LABEL (DISC)
58 4-222-485-01 KNOB(SELECTOR)
59 4-222-516-01 WINDOW (FL)
60 4-989-312-01 LATCH, NS
61 4-222-487-01 WINDOW (CASSETTE)
62 4-222-536-01 LID(L), CASSETTE
63 4-999-686-01 SPRING (A DECK)
64 4-222-513-01 HOLDER (L), CASSETTE
65 4-222-481-01 CABINET, FRONT
66 4-222-503-01 BRACKET, (LOCK L)
67 4-222-505-01 HOLDER LOCK
68 4-222-506-01 BRACKET, (LOCK R)
69 X-4952-105-1 BUTTON (POWER) ASSY
70 1-769-920-11 WIRE(FLAT TYPE) (9 CORE)
* 71 3-973-975-21 DAMPER, OIL
* 72 4-999-677-01 BRACKET (TC)
73 4-957-577-31 SCREW PTP WH (2.6 × 8) (DIA. 10)
74 4-951-620-01 SCREW (2.6 × 8), +BVTP
75 A-4411-806-A FRONT PANEL ASSY
76 A-4426-605-A FUNC BOARD, COMPLETE
77 4-222-495-01 BUTTON (FUNCTION)
78 X-4952-106-1 BUTTON (GROUP) ASSY
79 1-674-315-11 HP/MIC BOARD
80 4-222-514-01 HOLDER (R), CASSETTE
81 4-959-229-11 DETENT, CASSETTE
82 4-999-687-01 SPRING (B DECK)
83 4-222-488-01 LID(R), CASSETTE
84 4-962-708-71 EMBLEM (4-A), SONY
85 4-933-134-61 SCREW (+PTPWH M2.6 × 6)
86 4-977-358-31 CUSHION
87 4-222-509-01 CD DOOR (REAR)
88 4-222-510-01 PLATE (CD DOOR LENS)
89 1-674-312-11 SW/POWER BOARD
90 A-4426-571-A PANEL BOARD,COMPLETE
91 1-674-316-11 DOOR LED BOARD
92 4-222-490-01 SPRING (DOOR 2), TORSION
93 1-674-314-11 CD DOOR BOARD
94 3-354-963-01 DAMPER
95 4-222-501-01 SPRING (DOOR 1), TORSION
96 X-4952-104-1 SUB PANEL ASSY
55
58
56
84
65
57
61
59
91
60
86
83
61
81
80
82
79
74
74
74
74
74
74
74
74
92
78
76
77
71
90
72
71
89
66
69
67
93
85
70
94
73
75
67
54
68
54
87
88
51
52
53
64
63
81
62
not
supplied
#8
#8
#3
#10
#1
#10
not supplied
not supplied
74
60
95
TC MECHANISM
SECTION
96
