80
HCD-NXM4D

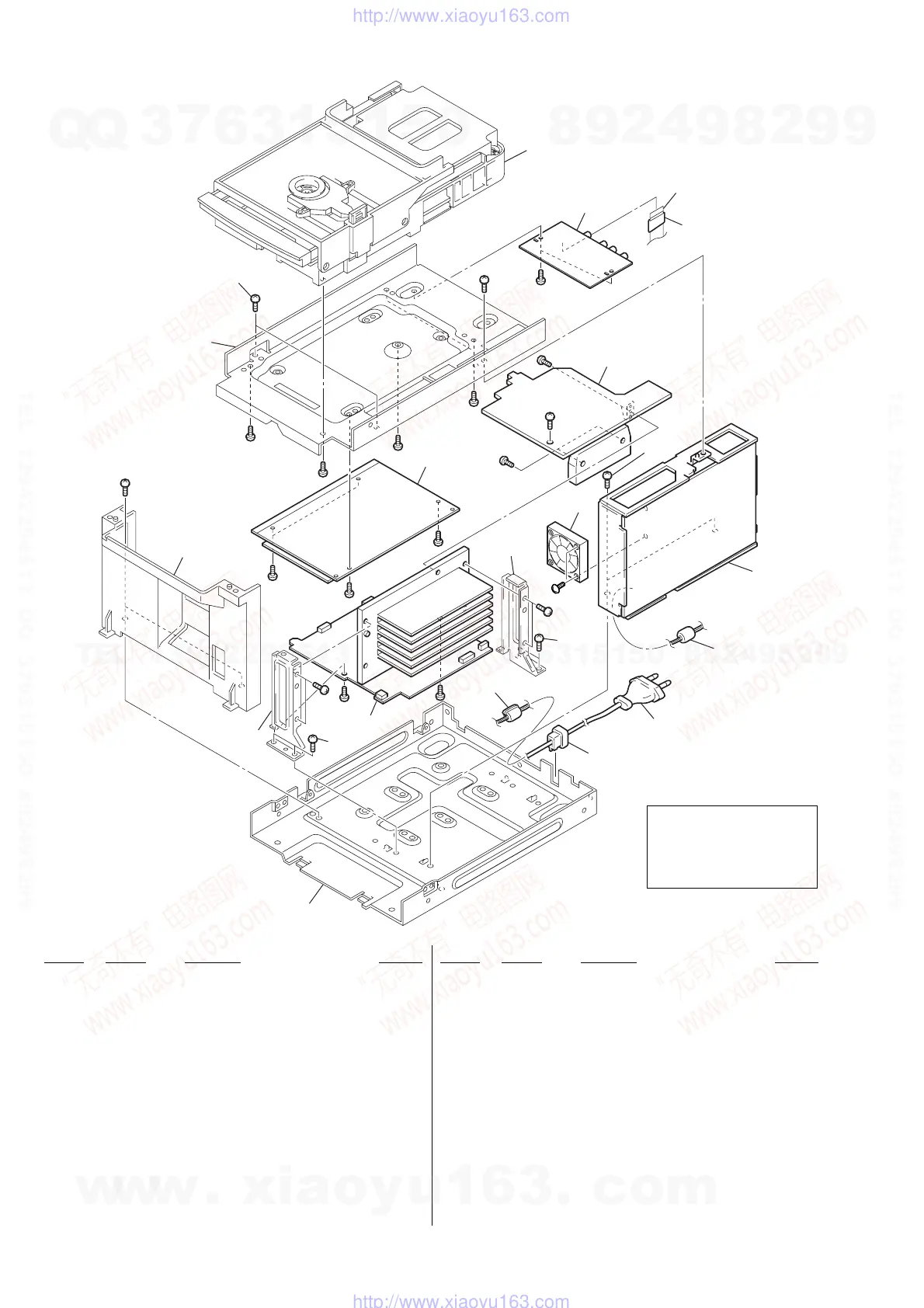

8-3. CHASSIS SECTION
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
not supplied
not supplied
not supplied
not supplied
not supplied
101
108
102
110
103
104
108
108
109
105
108
106
111
CDM81A-DVBU60
not supplied
#1
#1
#1
#1
#1
#1
#1
#1
#9
#1
M962
#1
#1
#1
#1
#1
#1
#1
#1
107
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
101 A-1063-581-A FRONT AMP BOARD, COMPLETE (TH)
101 A-4752-316-A FRONT AMP BOARD, COMPLETE
(E3, E15, SP, MY)
101 A-4752-377-A FRONT AMP BOARD, COMPLETE (EA)
101 A-4752-529-A FRONT AMP BOARD, COMPLETE (AUS)
101 A-4752-535-A FRONT AMP BOARD, COMPLETE (E2)
0102 1-468-817-11 REGULATOR, SWITCHING
0103 1-775-786-21 CORD, POWER (EA)
0103 1-775-790-22 CORD, POWER (AUS)
0103 1-777-071-53 CORD, POWER (SP, MY)
0103 1-824-818-11 CORD, POWER (WITH CONNECTOR) (TH)
0103 1-827-226-11 CORD, POWER (E2, E3, E15)
* 104 3-703-244-00 BUSHING (2104), CORD (EA, TH, AUS, SP, MY)
104 3-703-571-11 BUSHING (S) (4516), CORD (E2, E3, E15)
105 A-1063-595-A DMB07 BOARD, COMPLETE (TH)
105 A-4752-324-A DMB07 BOARD, COMPLETE (EXCEPT TH)
106 A-1063-575-A VIDEO BOARD, COMPLETE (TH)
106 A-4752-312-A VIDEO BOARD, COMPLETE (EXCEPT TH)
107 A-1063-586-A SUR AMP BOARD, COMPLETE (TH)
107 A-4752-320-A SUR AMP BOARD, COMPLETE (EXCEPT TH)
108 3-970-608-01 SUMITITE (B3), +BV
109 1-500-497-11 FILTER, CLAMP (FERRITE CORE)
110 1-543-830-11 CLAMP, SLEEVE FERRITE
111 1-500-657-11 CORE, FERRITE
M962 1-787-021-11 FAN, DC
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#9 7-685-647-79 SCREW +BVTP 3X10 TYPE2
