84
HCD-NXM4D

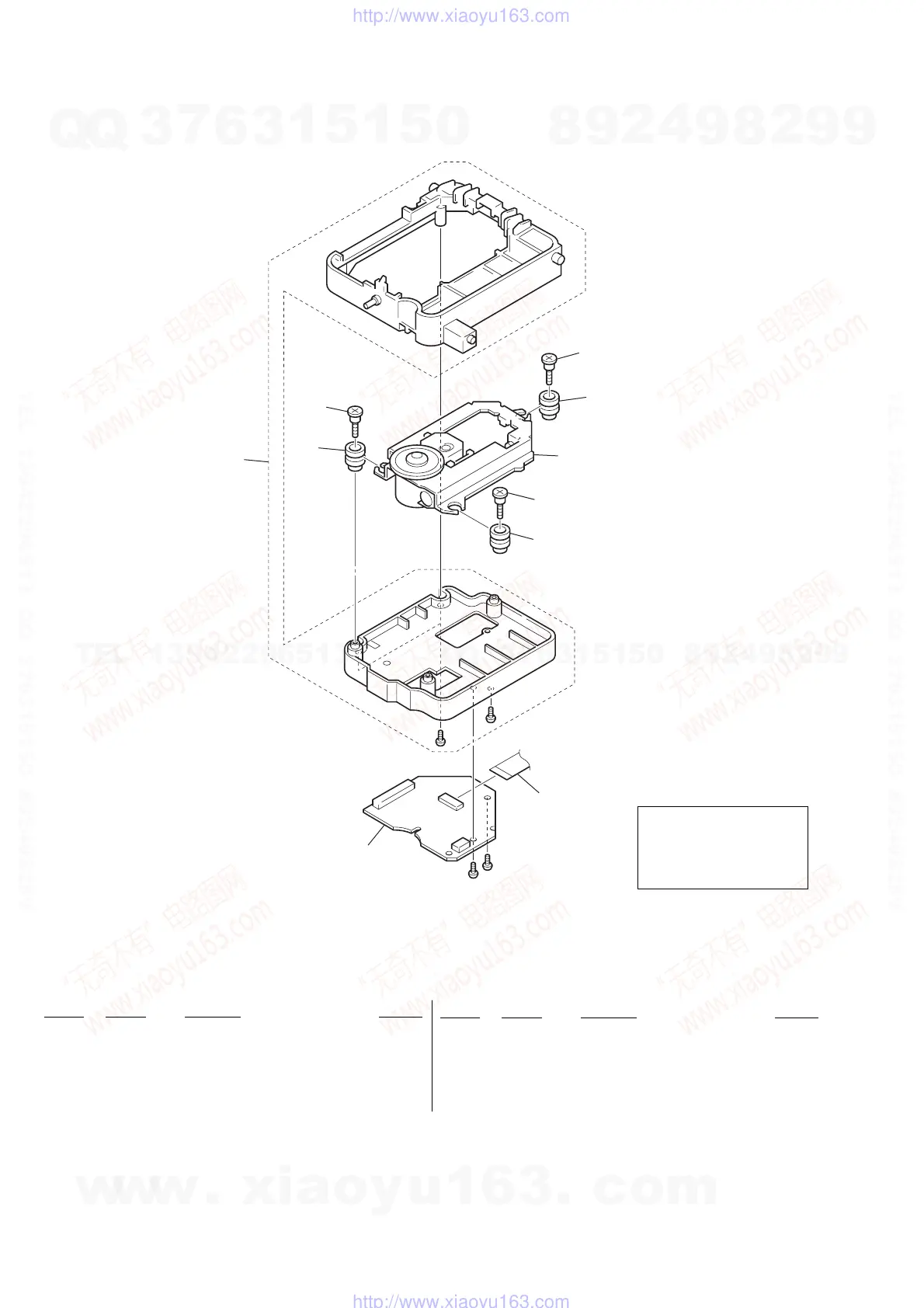

8-7. BASE UNIT (DVBU60)
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
301
302
303
303
303
304
304
304
305
306
#3
#3
#8
#8
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
301 X-4956-103-1 HOLDER (DBU1) ASSY
0302 A-1067-676-A OPTICAL PICK-UP SERVICE ASSY, DBU-3
303 3-057-023-11 INSULATOR (RB)
304 4-981-923-01 SCREW (M), STEP
305 1-824-106-12 CABLE, FLEXIBLE FLAT (24 CORE)
306 A-4728-690-A RF BOARD, COMPLETE
#3 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S
#8 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S
