Sony HCD-PX333 - Printed Wiring Boards - Panel Section1

7171
HCD-PX333

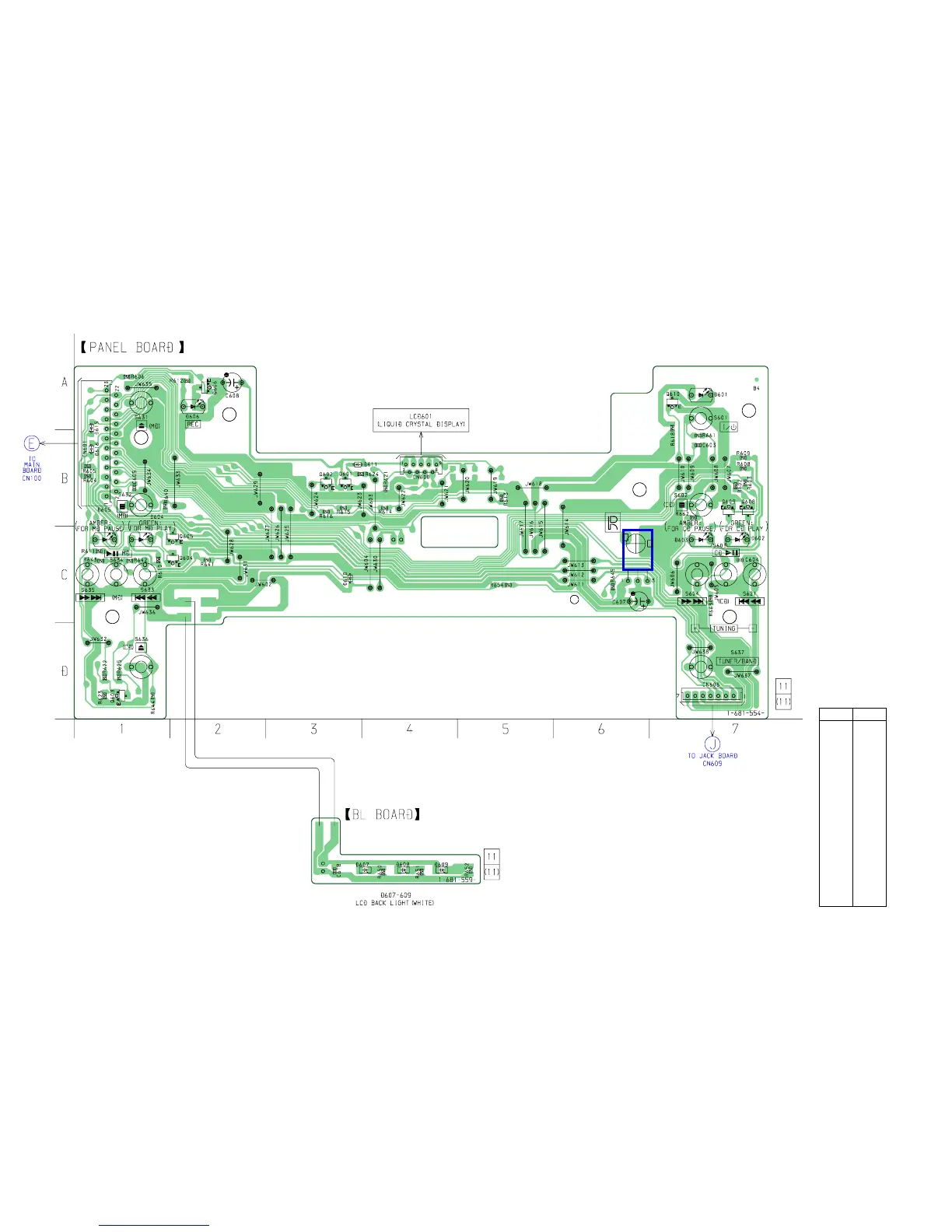

6-19. PRINTED WIRING BOARD PANEL SECTION1
• See page 55 for Circuit Boards Location.
IC602
(Page 65)
(Page 73)
Ref. No. Location
D601 A-7
D602 C-7
D603 C-7
D604 C-1
D605 C-1
D606 A-2
D610 C-3
D611 B-3
D615 A-1
D616 B-1
IC602 C-6
Q601 B-3
Q602 B-3
Q603 D-1
Q604 C-2
Q605 C-2
Q606 A-2
Q608 B-7
Q609 B-7
Q610 A-7
• Semiconductor
Location
