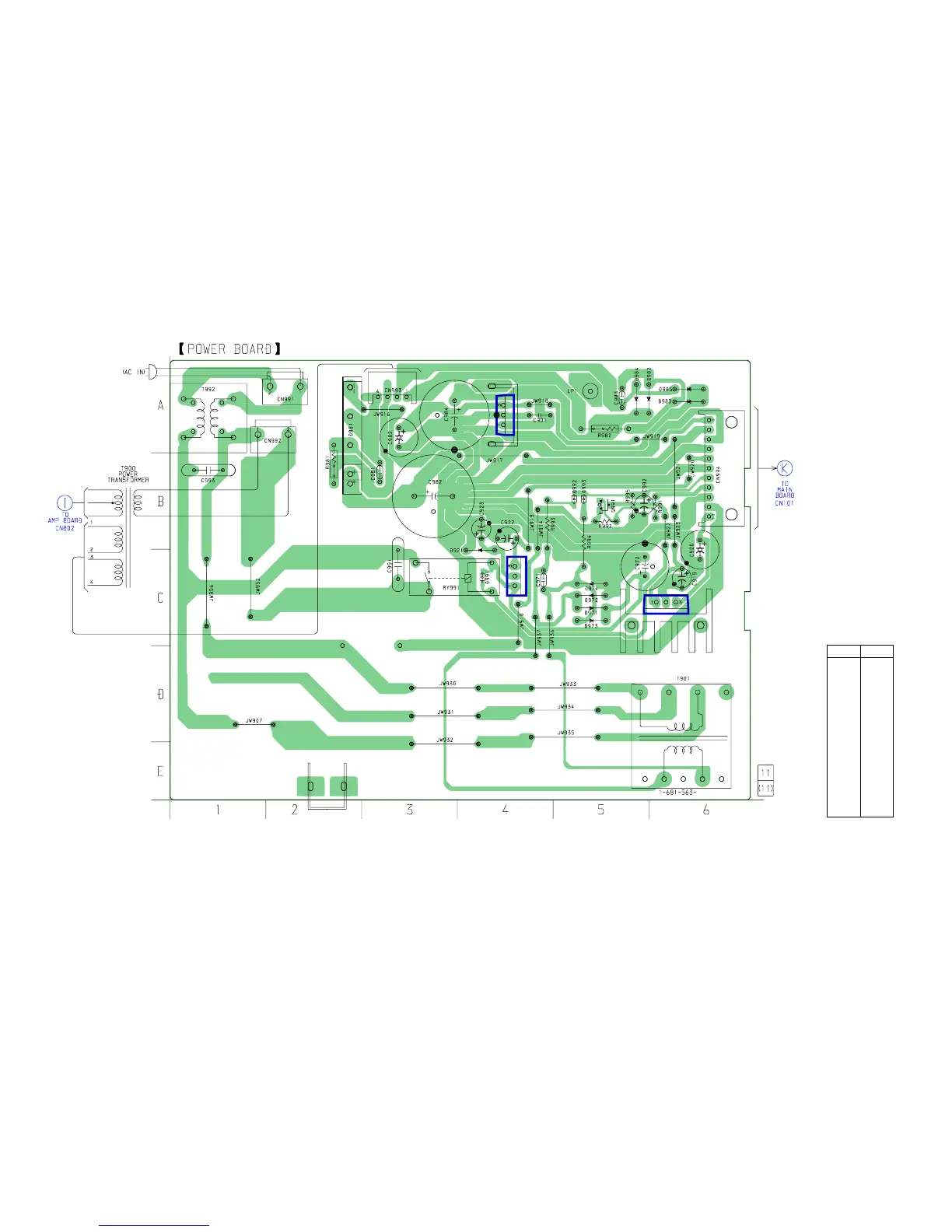

6-23. PRINTED WIRING BOARD POWER BOARD
• See page 55 for Circuit Boards Location.
IC914
IC921
IC901
(Page 68)
(Page 65)
Ref. No. Location
D921 B-4
D971 C-5
D972 C-5
D973 C-5
D974 C-5
D981 A-3
D982 A-5
D983 A-6
D984 A-5
D985 A-6
D991 C-4
D992 B-5
D993 B-5
IC901 A-4
IC914 C-6
IC921 C-4
Q991 B-5
• Semiconductor
Location
