SECTION 6
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
When indicating parts by reference number,
please include the board name.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
1 4-210-302-01 RUBBER, FOOT
2 4-210-292-01 DOOR, CD
3 4-210-297-01 CABINET
* 4 A-4405-494-A MAIN BOARD, COMPLETE
* 5 1-670-391-11 AC POWER BOARD
! 6 1-556-035-11 CORD, POWER (UK)
! 6 1-765-558-11 CORD, POWER (EXCEPT UK)
7 4-210-299-01 WASHER, AC CORD
8 4-210-301-01 FOOT (B)
* 9 4-210-298-01 CHASSIS
! PT302 1-431-960-11 TRANSFORMER, POWER
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
— 54 —

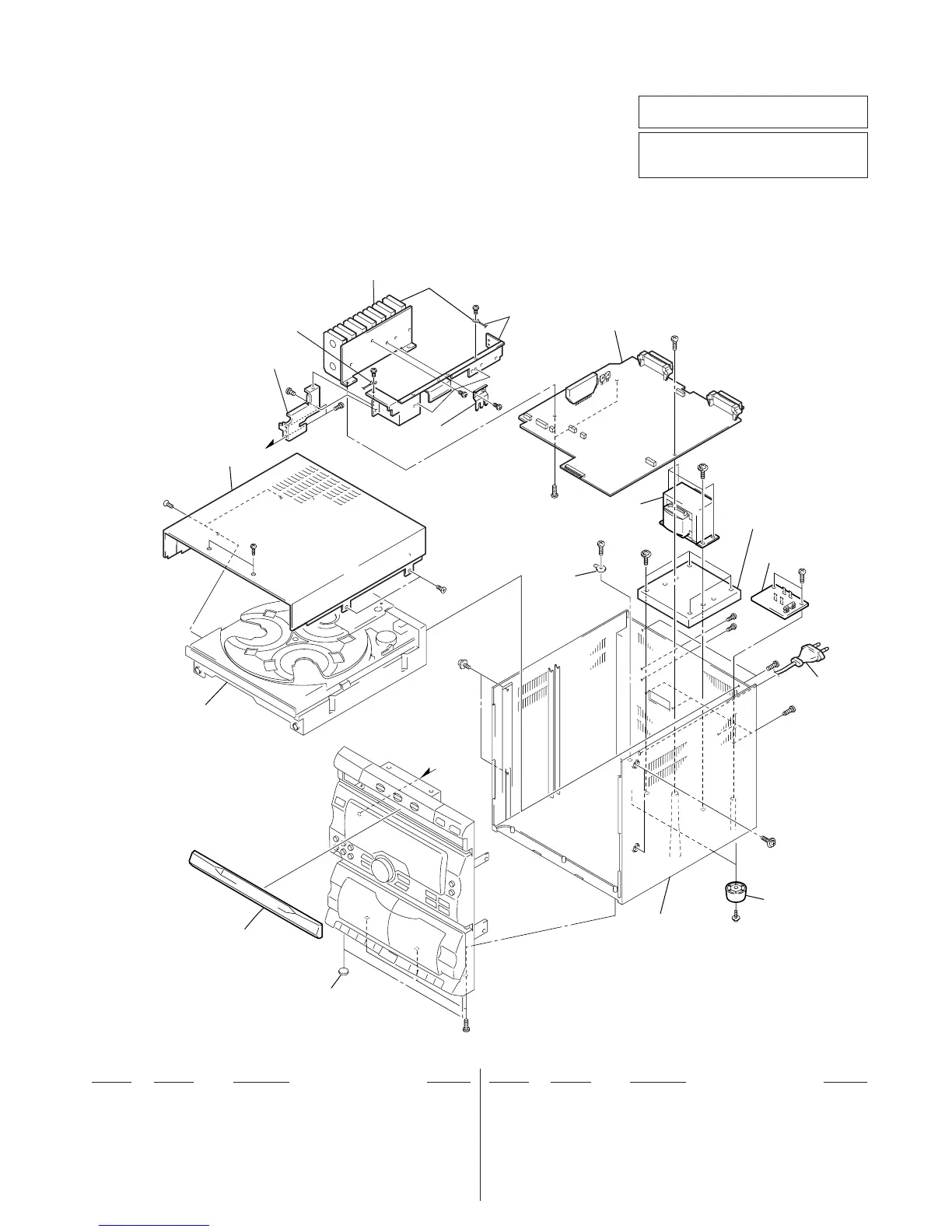

6-1. CABINET SECTION
• The mechanical parts with no reference
number in the exploded views are not
supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of
this parts list.
a
a
not supplied
not supplied
not supplied
PT302
not supplied
not supplied
not supplied
CD mechanism deck
3
2
1
9
8
6
5
7
4
#2
#2
#2
#2
#2
#1
#1
#1
#1
#1
#1
#1
#1
#16
#16
#10
#10
#1
#1
#3
#11
#11
#11
To Next Page
