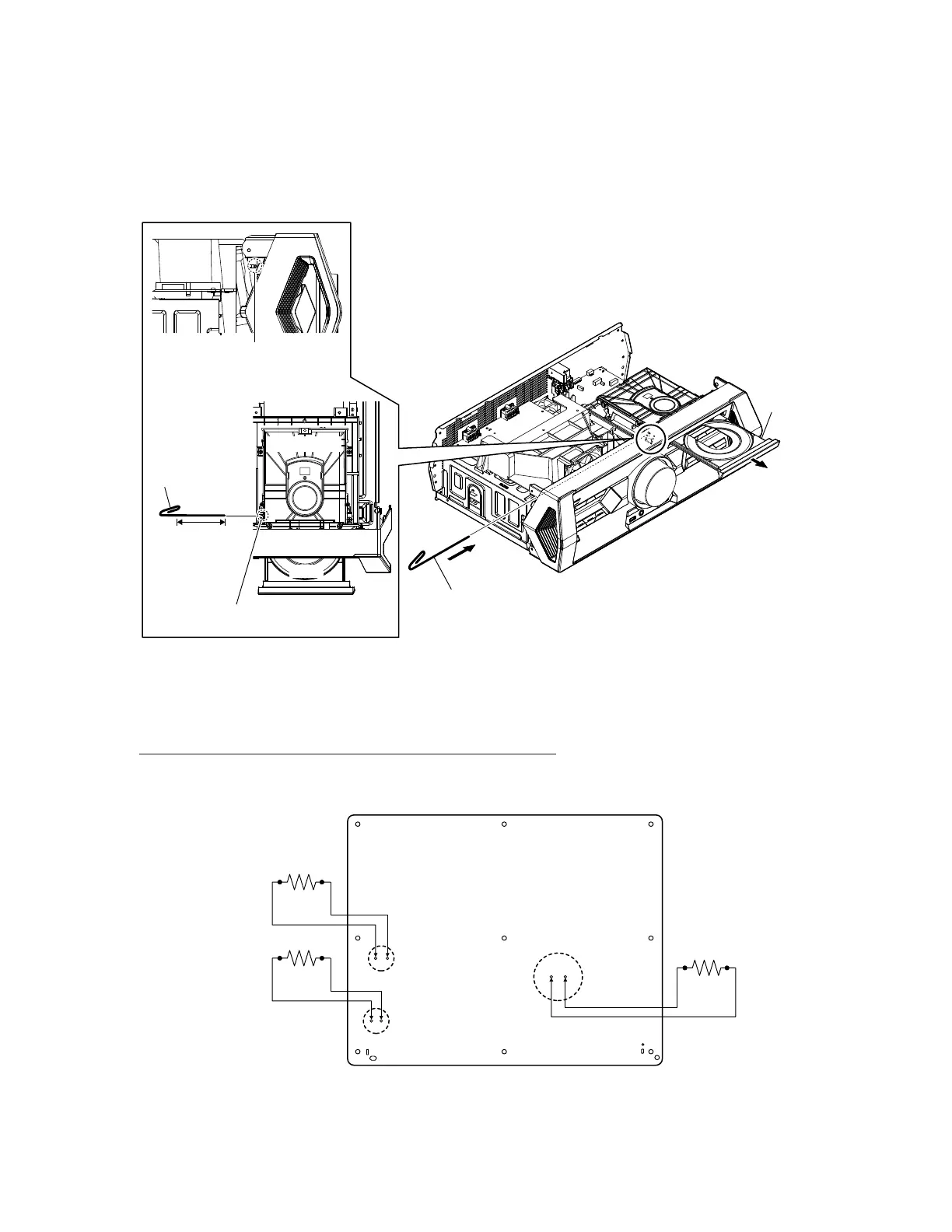

HOW TO OPEN THE TRAY WHEN POWER SWITCH TURN OFF
Note 1:
After the case overall is removed, this word is done.
Note 2: Please prepare the thin wire (clip etc. processed to the length of 8 cm or more).
2 Insert the clip etc.
3
tra
y
tray
Insert the clip etc.
processed to the
length of 8 cm or
more in the hole
on the side of the
chassis and push.
8 cm or more
hole
– Side view –
– Top view –
Note:
Push after it inserts it in this hole well.
CD drive
1 Remove the case, overall.
(Illustration of disassembly is omitted.)
CAPACITOR DISCHARGE FOR ELECTRIC SHOCK PREVENTION
Switching Regulator Board (Conductor side view) (HCD-SHAKE33)
In checking the Switching Regulator board, make 3 capacitors discharge of C221, C602 and C618 for eletrical shock prevention.
800 :/5 W
800 :/5 W
800 :/5 W
C602
C618
C221
