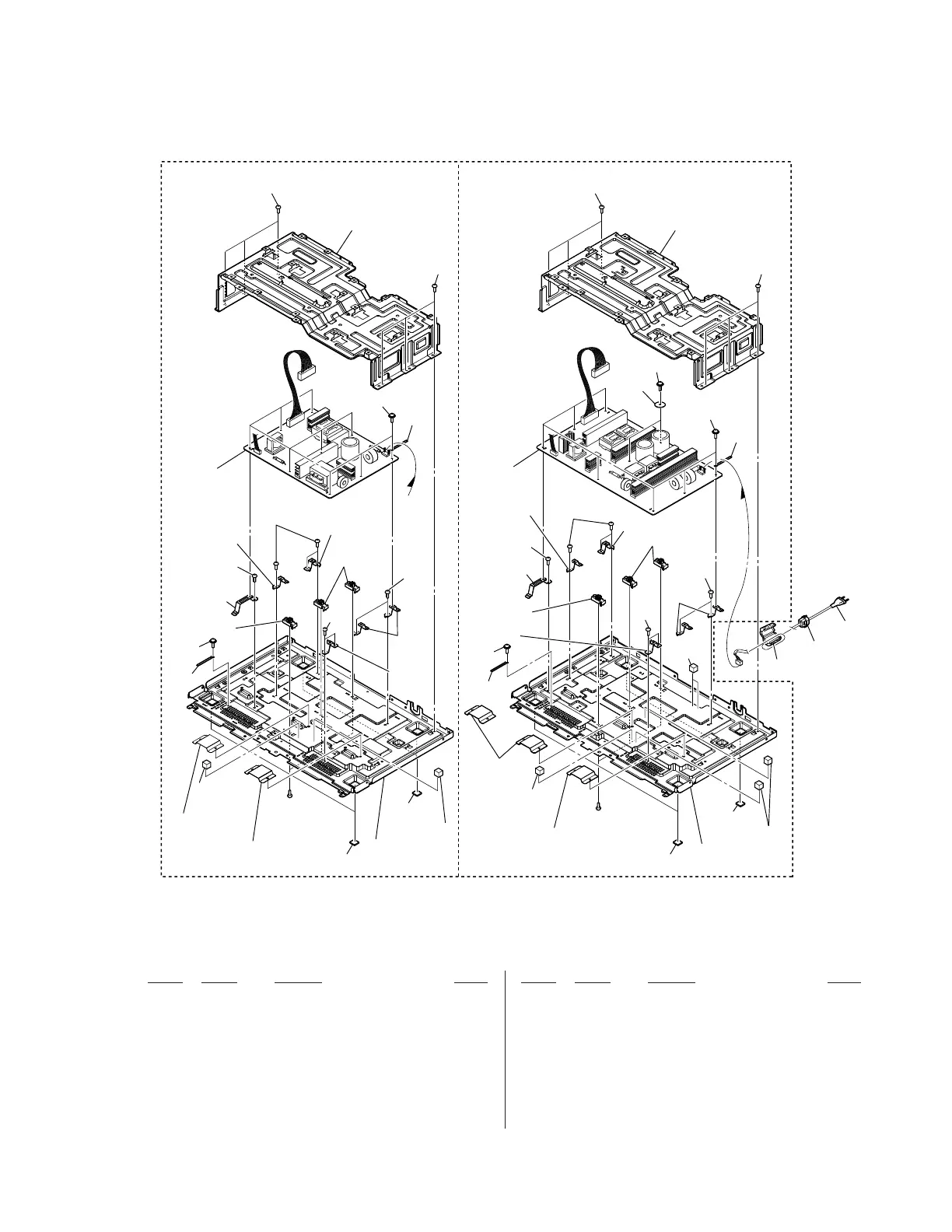

7-6. CHASSIS SECTION
251 3-077-331-21 +BV3 (3-CR)
252 1-457-369-12 CORE, FERRITE
0 253 4-966-267-12 BUSHING (FBS001), CORD
0 254 1-834-966-41 POWER-SUPPLY CORD (AEP)
0 254 1-835-068-21 CORD, POWER (AUS)
0 254 1-835-706-22 CORD, POWER-SUPPLY (E51)
0 254 1-837-308-11 CORD, POWER-SUPPLY (US)
0 254 1-837-344-11 CORD, POWER-SUPPLY (E2, MX)
0 254 1-839-999-21 POWER-SUPPLY CORD (UK)
255 2-677-839-01 +PWH 3X8 (SUMITITE)
* 256 3-703-150-11 CLAMP
0 257 1-474-551-11 REGULATOR, SWITCHING (3H401W) (SHAKE33)
0 257 1-474-555-11 SWITCHING REGULATOR (SSN-GBR) (SHAKE77)
258 4-176-619-01 FOOT, RUBBER
259 4-489-504-01 WASHER, DIA 20.0mm (SHAKE 77)
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
