Sony HCD-V8800 - 8 Exploded Views; Case and Back Panel Section

— 97 —
SECTION 8
EXPLODED VIEWS

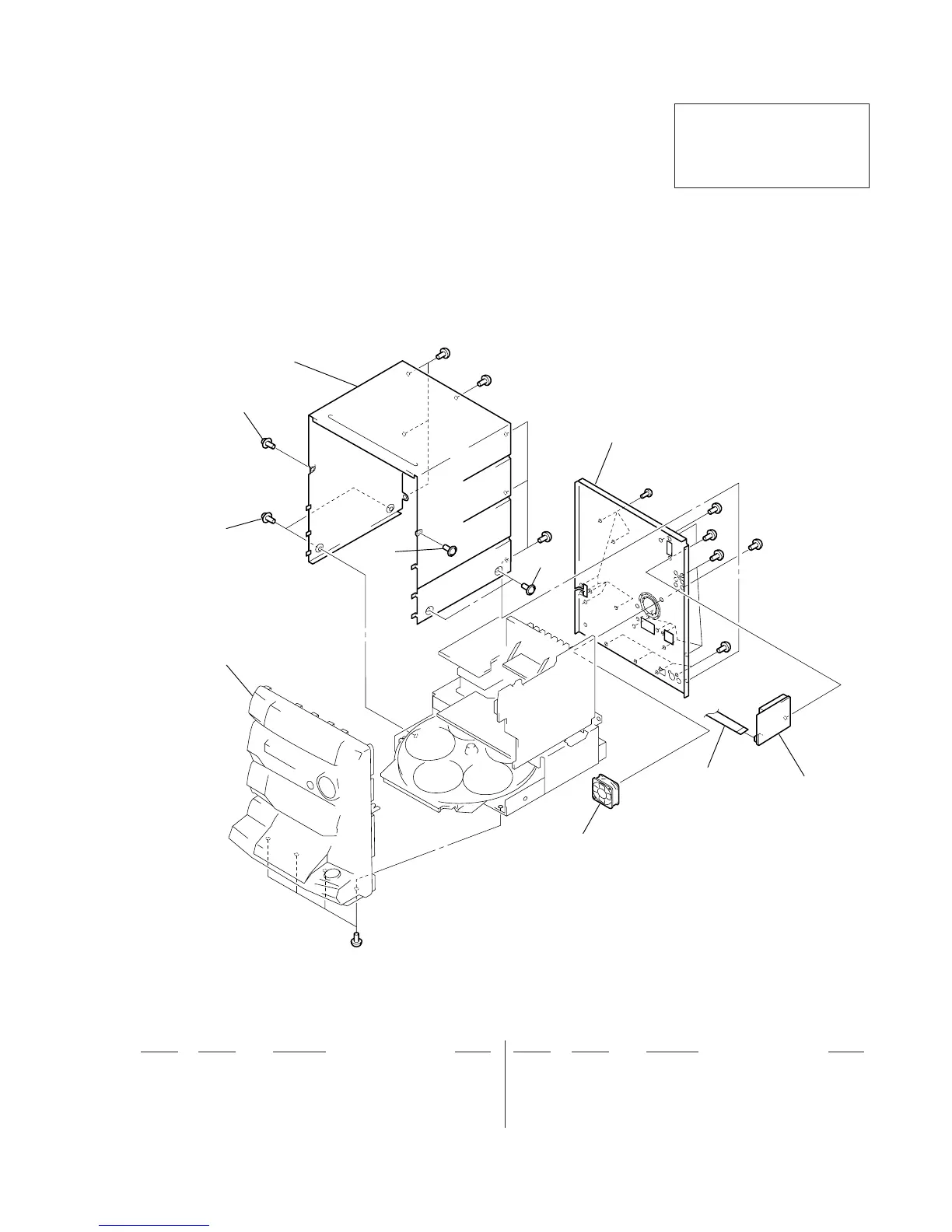

8-1. CASE AND BACK PANEL SECTION
NOTE:
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
• Abbreviation
SP : Singapore model
MY : Malaysia model
IA : Indonesia model
CH : Chinese model
The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number
specified.
1
6
1
3
2
4
5
4
FRONT PANEL
M901
#1
#2
#2
#2
#1
#3
#1`
#1
#1
#1
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 3 4-992-220-31 PANEL, BACK (IA)
4 3-363-099-01 SCREW (CASE 3 TP2)
5 1-233-545-11 ENCAPSULATED COMPONENT
6 1-769-974-11 WIRE (FLAT TYPE)(13 CORE)
M901 1-698-792-11 FAN, DC
1 4-929-973-01 SCREW (CASE, 3 POINT)
* 2 4-987-052-31 CASE
* 3 4-992-220-01 PANEL, BACK (E,SP)
* 3 4-992-220-11 PANEL, BACK (MY)
* 3 4-992-220-21 PANEL, BACK (CH)
