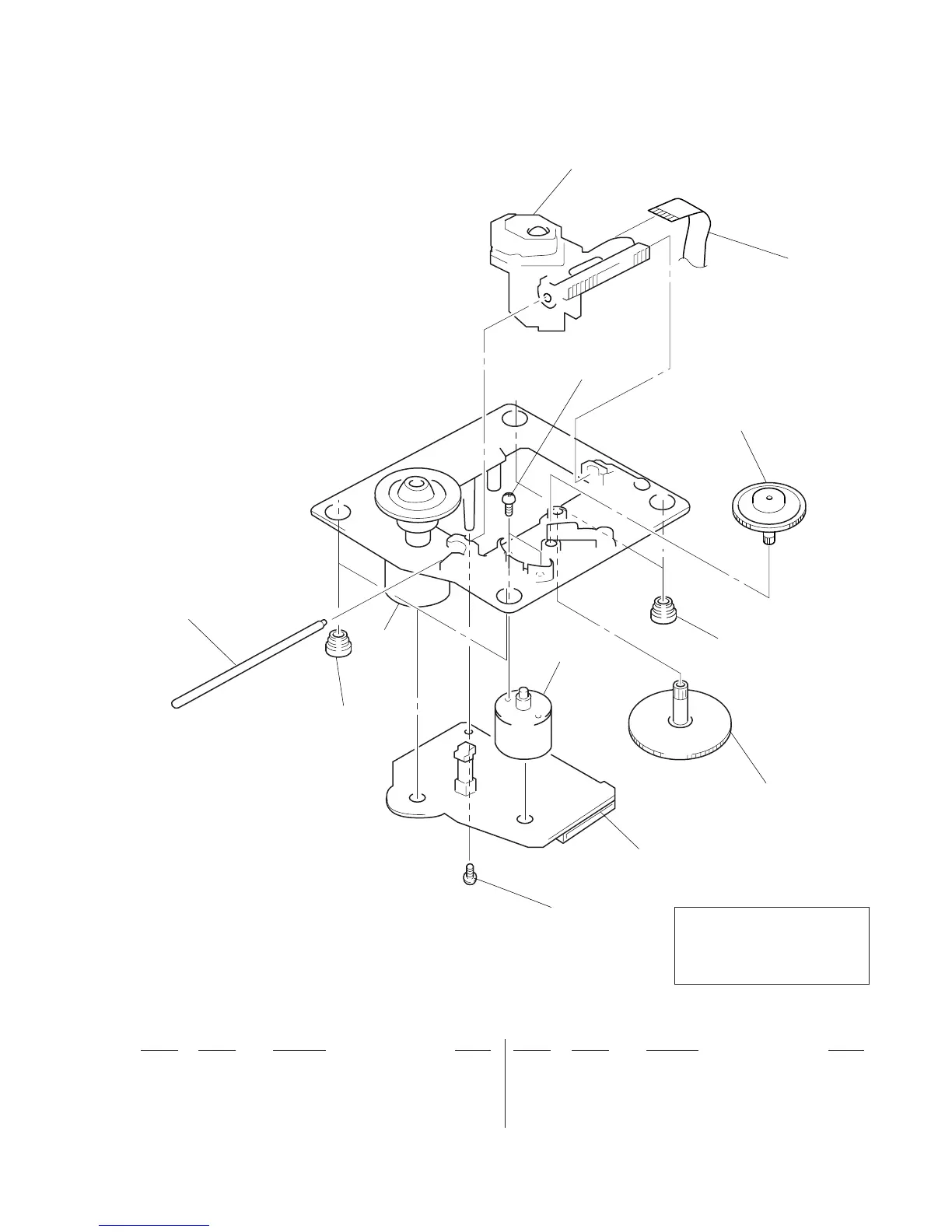

8-9. BASE UNIT SECTION (BU-5BD21AL)
The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number speci-
fied.
M101
M102
#12
408
407
406
404
405
404
403
402
401
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
406 4-917-564-01 GEAR (P), FLATNESS
* 407 A-4673-557-A BD BOARD, COMPLETE
408 4-951-620-01 SCREW (2.6X8), +BVTP
M101 X-4917-523-4 MOTOR ASSY (SPINDLE)
M102 X-4917-504-1 MOTOR ASSY (SLED)
! 401 8-820-020-03 OPTICAL PICK-UP KSS-213D/Q-NP
402 1-769-069-11 WIRE (FLAT TYPE)(16 CORE)
403 4-917-567-01 GEAR (M)
404 4-951-940-01 INSULATOR (BU)
405 4-917-565-01 SHAFT, SLED
