Sony HCD-V8800 - CD Mechanism Section (CDM37 L-5 BD21 AL)

— 104 —

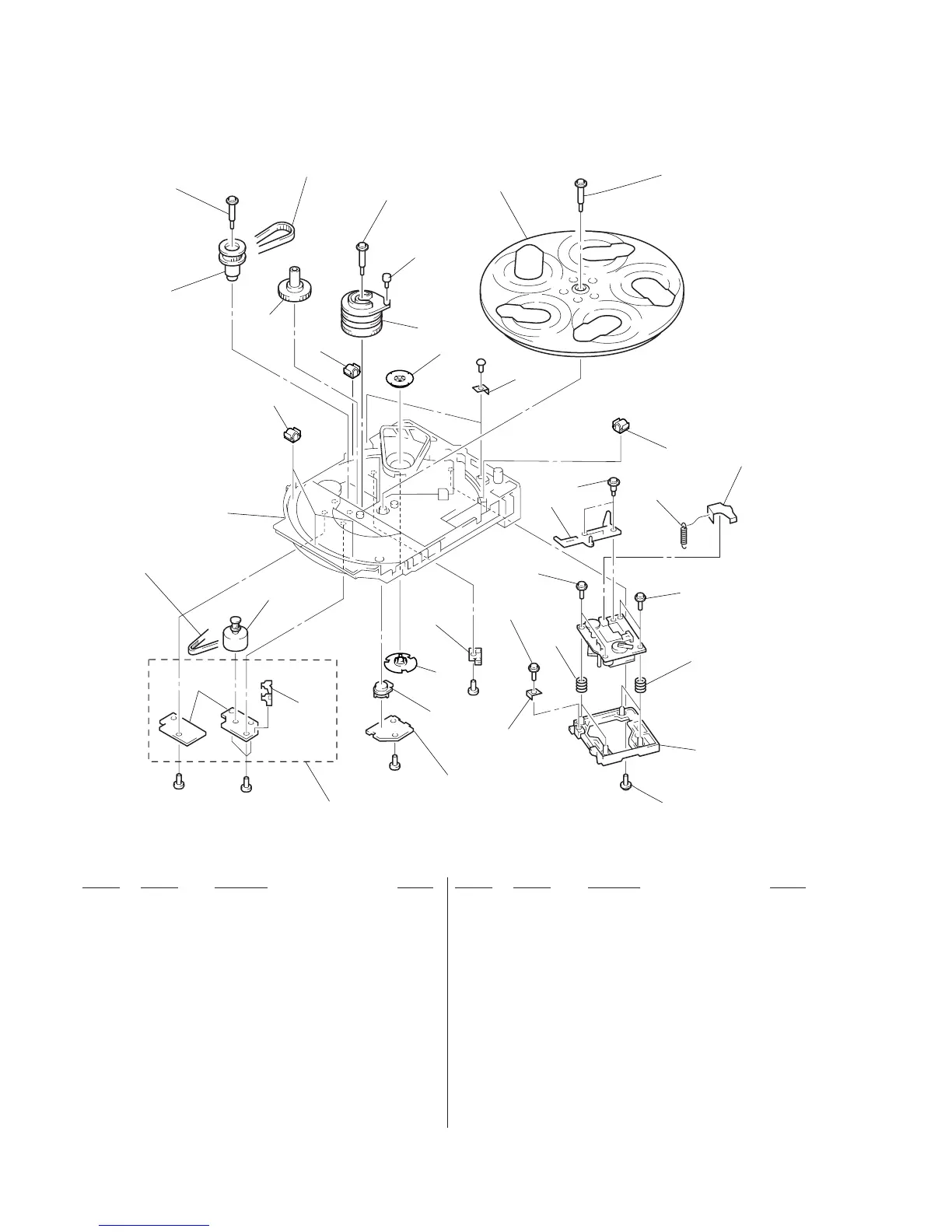

8-8. CD MECHANISM SECTION (CDM37L-5BD21AL)
not
supplied
#1
#1
#1
#1
#1
351
358
351
355
356
361
357
352
351
353
354
360
360
360
362
375
374
373
372
368
368
368
369
369
367
359
352
363
364
366
365
361
370
371
M201
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
365 4-978-426-01 INDICATOR (NO.)
* 366 1-659-059-13 LED BOARD
* 367 1-659-058-13 TABLE SENSOR BOARD
368 4-933-134-01 SCREW (+PTPWH M2.6X6)
369 4-958-593-01 SPRING (BU), COMPRESSION
* 370 4-978-419-01 HOLDER (BU-5)
371 4-917-583-71 BRACKET, YOKE
372 4-989-493-01 SLIDER (37)
373 4-989-494-01 SCREW (SLIDER), STEP
374 4-989-819-01 SPRING, TENSION
375 4-989-491-21 COVER, LENS
M201 A-4660-977-A MOTOR ASSY (TABLE)
351 4-987-976-01 SCREW, STEP
352 4-944-490-01 BELT (TIMING)
353 A-4660-978-A GEAR (PULLEY) ASSY
354 4-978-421-01 GEAR (MID)
355 4-978-425-01 ROLLER (CAM)
356 4-978-420-01 CAM (HOLDER)
* 357 1-452-925-11 MAGNET ASSY
358 4-978-417-01 TABLE, DISC
359 4-993-142-01 PULLEY (L), PRESS
360 X-4947-960-1 ROLLER ASSY
* 361 4-978-583-01 BRACKET (BU)
* 362 4-978-418-01 CHASSIS
* 363 4-980-385-01 HOLDER (SW)
* 364 A-4673-765-A CD MOTOR BOARD, COMPLETE
