Sony HCD-V8800 - TC Mechanism Section-2 (TCM-220 WR2)

— 102 —

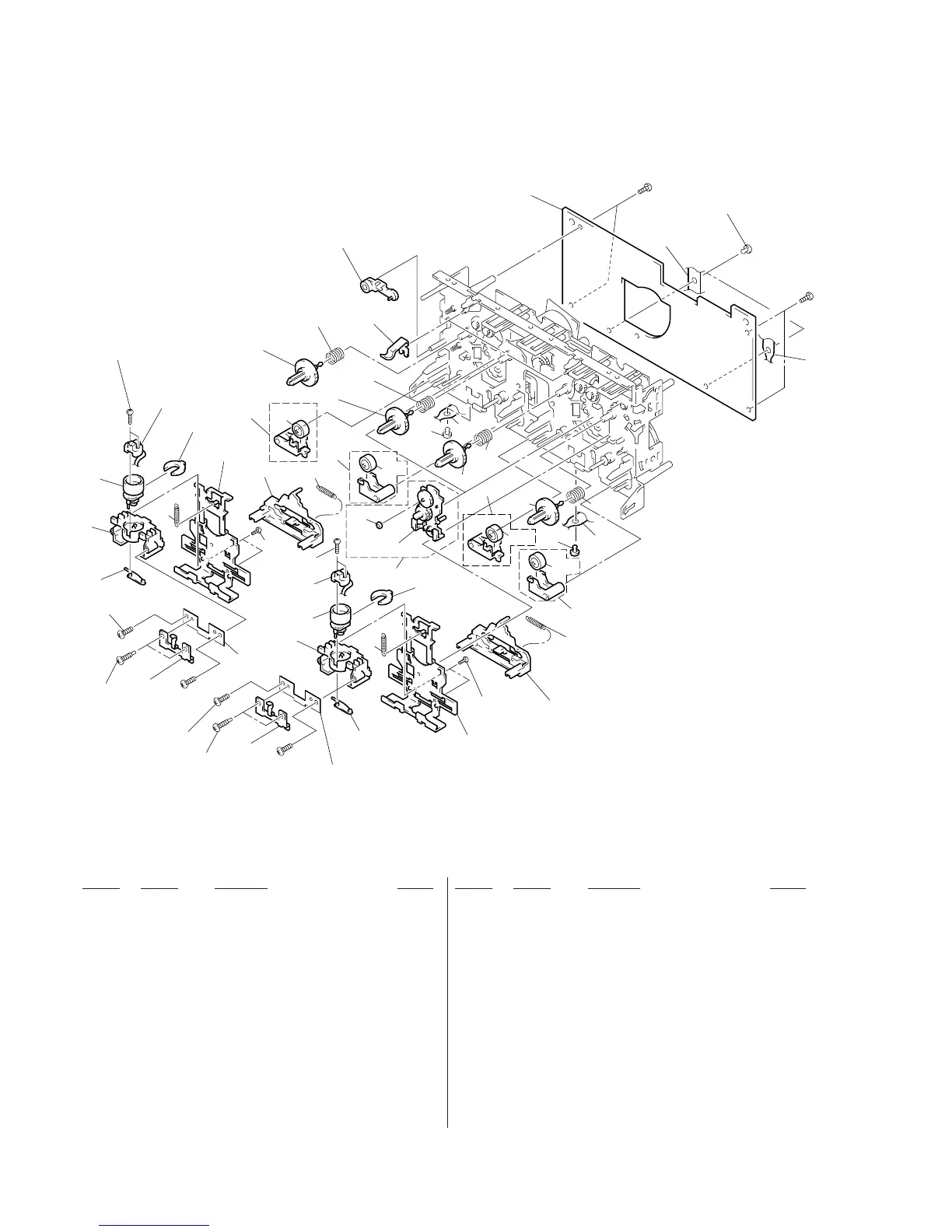

8-6. TC MECHANISM SECTION-2 (TCM-220WR2)
252
251
252
251
254
253
260
255
259
256
258
261
257
268
254
255
256
259
260
257
253
262
274
266
258
261
263
267
274
264
262
266
274
274
263
269
273
265
269
273
264
265
272
275
271
(including p A)
r A
r
B
r B
r A
HRPE101
(including
r B)
HP101
(including
r A)
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
#9
#9
#6
#6
269
not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
251 3-908-560-01 SPRING, AZIMUTH ADJUSTMENT
252 3-919-684-01 SCREW, AZIMUTH ADJUSTMENT
253 X-3373-113-1 SLIDER (HEAD) ASSY
254 3-009-956-01 SPRING, HEAD TOGGLE
255 3-908-558-02 FITTING BLOCK, HEAD
256 3-908-557-02 ROTARY BLOCK, HEAD
* 257 3-908-559-01 STOPPER, AZIMUTH
258 3-908-555-01 SLIDER (REV SLIDER)
259 3-917-143-11 SPRING, TENSION
260 3-388-848-01 SCREW (P2X6)(B TIGHT)
261 3-939-371-01 SPRING (1), TENSION
262 X-3369-909-1 PINCH LEVER (REV) ASSY
263 X-3369-908-1 PINCH LEVER (FWD) ASSY
264 3-908-613-01 GEAR (S), REEL
265 3-917-141-01 SPRING, COMPRESSION
266 X-3371-305-1 REEL (T) ASSY
267 3-669-465-01 WASHER (1.5), STOPPER
268 X-3370-173-1 TU ASSY
269 3-939-862-01 CLIP
* 271 A-2007-131-A AUDIO BOARD, COMPLETE
272 3-930-972-01 DETENT, HALF
273 3-917-142-01 SPRING, COMPRESSION
274 3-355-808-02 PINCH ROLLER
275 3-938-863-01 STOPPER
HP101 1-500-093-11 HEAD, MAGNETIC (PLAYBACK)
HRPE1011-500-094-11 HEAD, MAGNETIC (REC/PB/ERASE)
