Sony HCD-VX222 - SERVICE NOTE; Removing the Panel Board and Key Board

4
HCD-VX222
SECTION 1
SERVICE NOTE

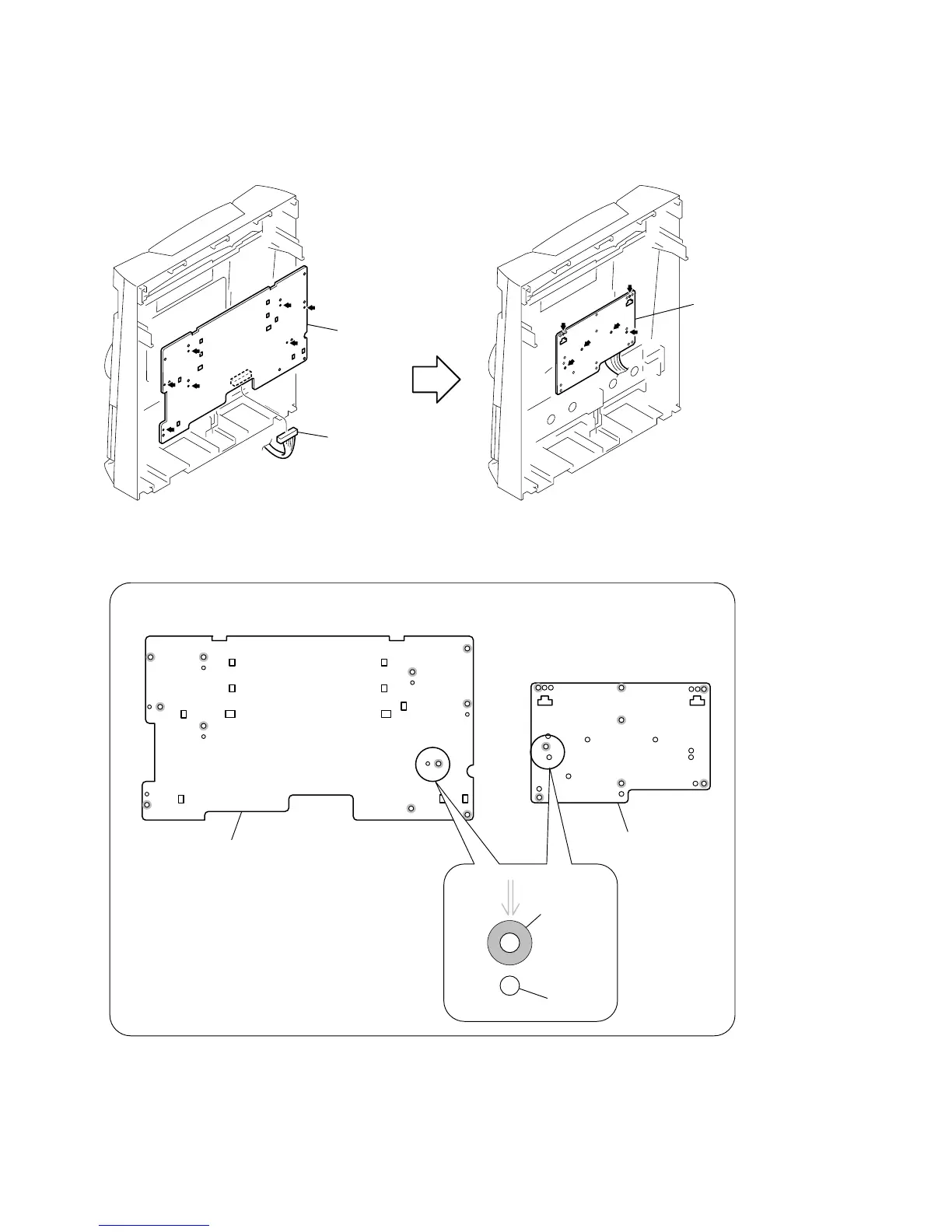

1 Connector
13p (CN712)
2 Cut the seven melted-connection points
with a cutting plier.
4 Cut the six melted-connection points
with a cutting plier.
3 Panel board
5 Key boar
d
Panel board
(ten screw holes)
Key board
(eight screw holes)
Screw hole
In order to re-install the panel board and the key board,
fix them by using the screws (+BVTP 2.6
× 8 ) respectively.
Screw in to the respective screw holes.
Do not tighten the screws excessively.
* The panel board and the key board only are connected to the front panel
by means of hot-melting the plastics.
Note for installing the panel board and the key board
REMOVING THE PANEL BOARD AND THE KEY BOARD
Hot melt
