Sony HCD-VX222 - CHASSIS SECTION

54
HCD-VX222

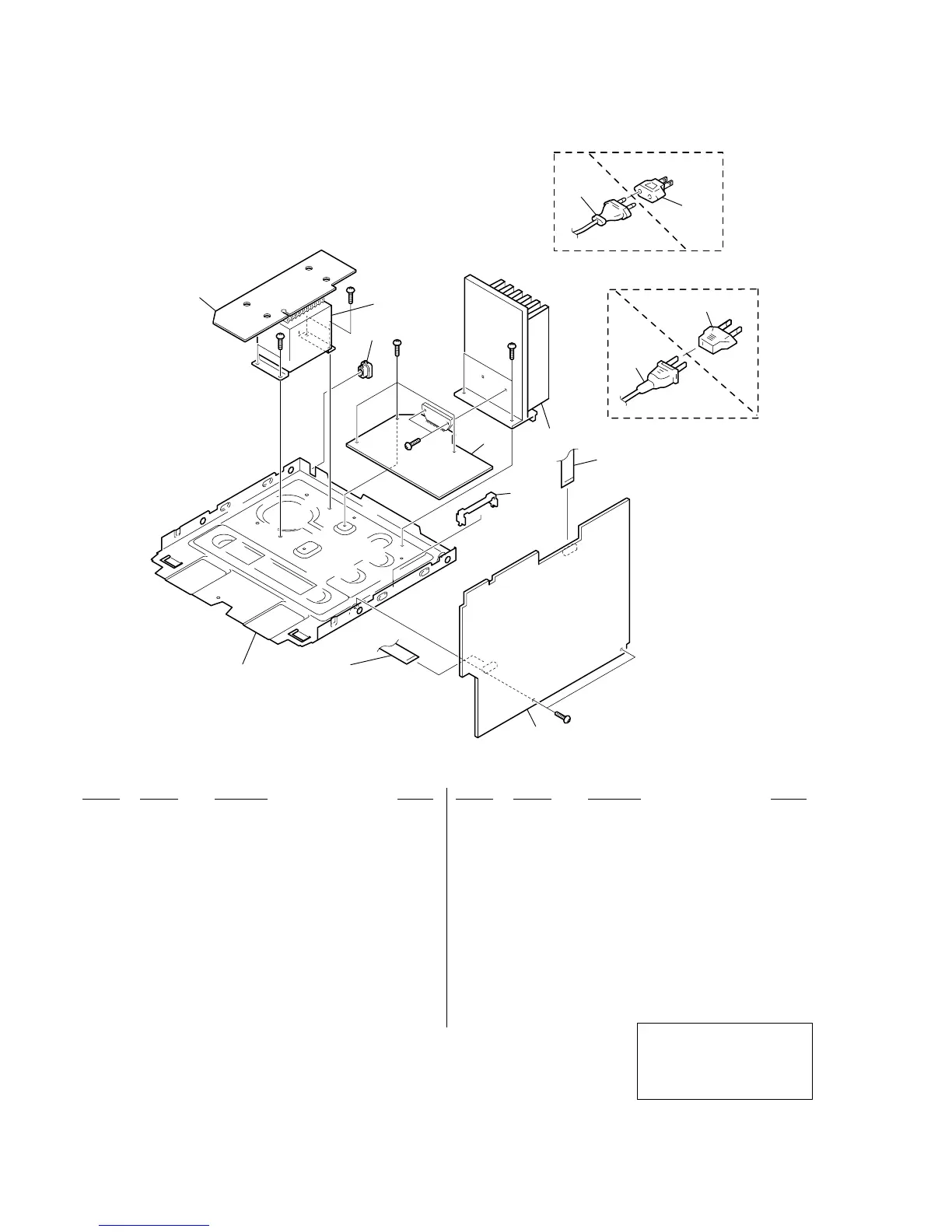

7-3. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
#5
#7
#4
#2
#7
#2
109
108
103
107
106
101
112
102
104
105
T911
EA, SP, TW
EA, SP, TW, E91
EA, IA, TH
E, IA
not supplied
110
111
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
101 1-773-049-11 WIRE (FLAT TYPE) (17 CORE)
102 A-4476-995-A MAIN BOARD, COMPLETE (E,IA,SP)
102 A-4476-999-A MAIN BOARD, COMPLETE (EA)
102 A-4725-703-A MAIN BOARD, COMPLETE (TW)
102 A-4726-005-A MAIN BOARD, COMPLETE (TH)
102 A-4726-272-A MAIN BOARD, COMPLETE (E91)
* 103 4-988-533-01 HOLDER, PWB
104 1-769-986-11 WIRE (FLAT TYPE) (13 CORE)
105 A-4476-990-A POWER BOARD, COMPLETE (E,EA,IA,SP)
105 A-4725-699-A POWER BOARD, COMPLETE (TW)
105 A-4726-000-A POWER BOARD, COMPLETE (TH)
105 A-4726-270-A POWER BOARD, COMPLETE (E91)
106 3-703-244-00 BUSHING (FBS001), CORD (EA,SP,TW,E91)
106 3-703-571-11 BUSHING (S) (4516), CORD (TH)
106 4-966-266-01 BUSHING (S) (FBS002), CORD (E,IA)
107 1-681-444-11 TRANS BOARD
0108 1-777-071-81 CORD, POWER (EA,SP,TW)
0108 1-790-880-11 CORD, POWER (WITH CONNECTOR) (E91)
0109 1-569-008-21 ADAPTOR, CONVERSION (EA,SP,TW)
0110 1-791-901-11 CORD, POWER (E,IA,TH)
0111 1-569-007-11 ADAPTOR, CONVERSION 2P (E,IA)
112 4-223-777-03 CHASSIS
0T911 1-437-221-11 TRANSFORMER, POWER
