Sony HCD-VX222 - EXPLODED VIEWS; MAIN SECTION

52
HCD-VX222
SECTION 7

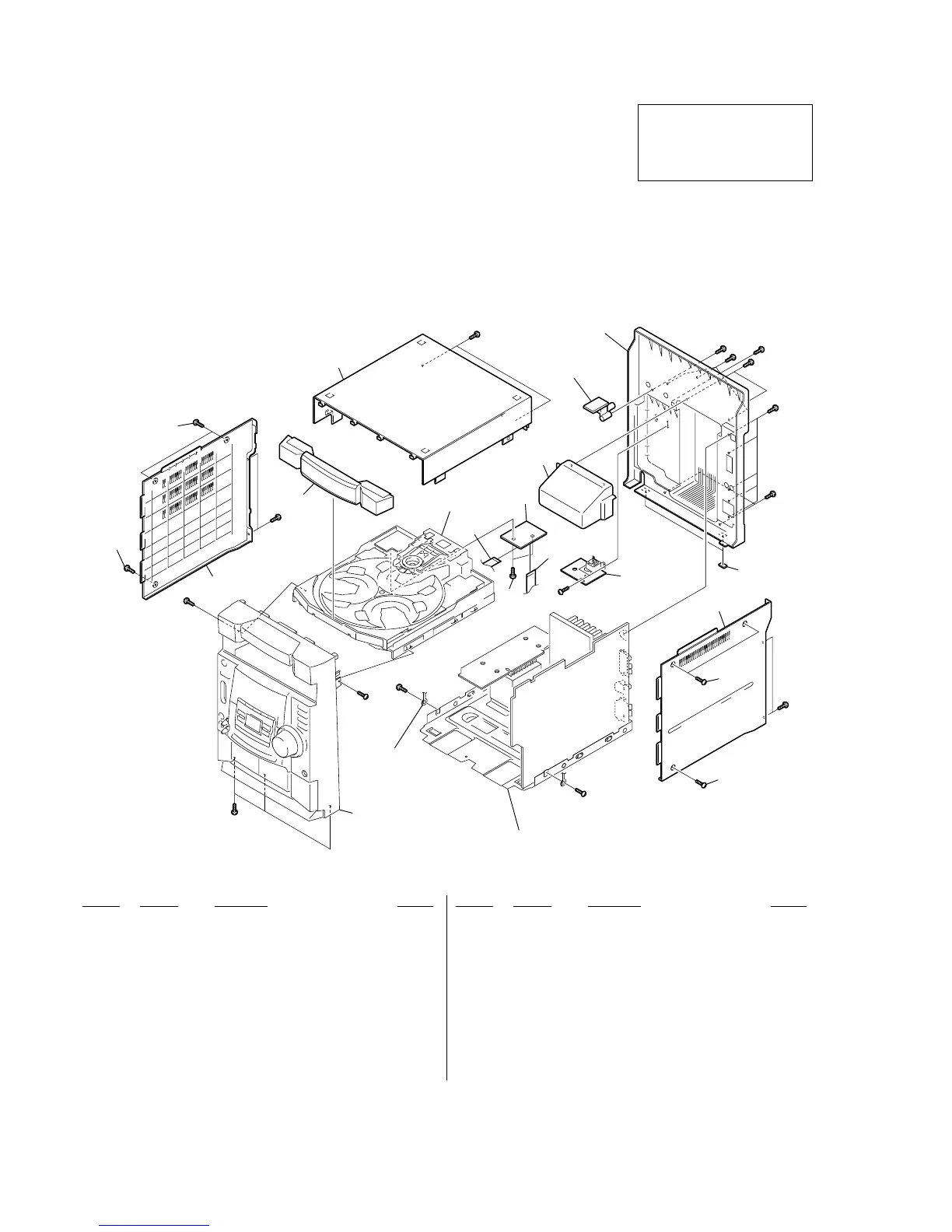

EXPLODED VIEWS
7-1. MAIN SECTION
NOTE:
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Abbreviation
EA : Saudi Arabia model
SP : Singapore model
TH : Thai model
TW : Taiwan model
IA : Indonesian model
CD mechanism deck
#6
#3
#
3
#3
#7
#7
#3
#5
4
3
11
1
1
2
2
front panel section
chassis section
not supplied
#3
#1
#3
#3
#3
#3
#3
10
7
9
8
5
6
14
15
12
13
1 3-363-099-01 SCREW (CASE 3 TP2)
2 3-363-099-41 SCREW (CASE 3 TP2)
3 4-224-549-01 CASE (SIDE-L)
4 4-234-009-41 CD DOOR…(BLACK) (E,EA,IA,SP,TH,TW)
4 4-237-846-01 CD DOOR…(SILVER)
5 4-224-550-01 CASE (TOP)
6 1-681-441-11 VIDEO OUT BOARD
7 4-234-091-21 PANEL BACK (E,EA,IA,SP,TW)
7 4-234-091-81 PANEL BACK (TH)
8 4-227-984-11 COVER (DUCT)
9 1-681-445-11 SUB TRANS BOARD
10 4-225-252-01 CUSHION (FOOT) (E,EA,IA,SP,TH,TW)
11 X-4952-994-1 CASE (R) ASSY, SIDE
12 A-4726-022-A VIDEO BOARD, COMPLETE (A)(E,EA,IA,SP)
12 A-4726-025-A VIDEO BOARD, COMPLETE (A) (TW)
12 A-4726-027-A VIDEO BOARD, COMPLETE (A) (TH)
13 1-769-986-11 WIRE (FLAT TYPE) (13 CORE)
14 1-792-246-11 WIRE (FLAT TYPE) (23 CORE)
15 4-951-620-01 SCREW (2.6X8), +BVTP
Ver 1.2 2001.09
• Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE)• • • (RED)
↑↑
Parts color Cabinet's color
