Sony HCD-VX222 - CD MECHANISM DECK SECTION

55
HCD-VX222

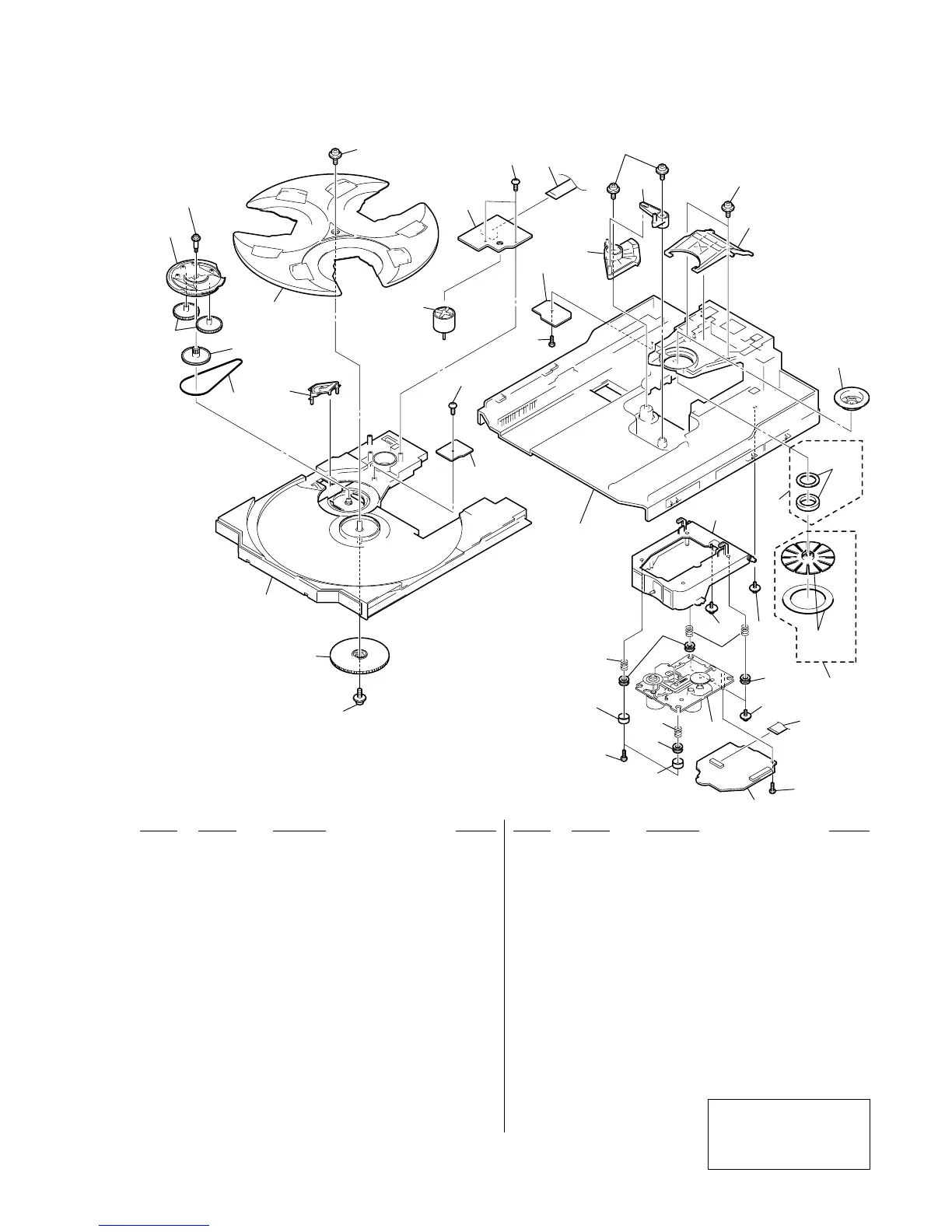

7-4. CD MECHANISM DECK SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
266
not
supplied
not
supplied
not supplied
251
252
253
254
255
256
274
275
276
269
257
259
258
258
258
258
260
261
262
263
251
264
271
265
268
279
271
284
267
271
270
270
270
283
283
283
258
M721
282
284
286
287
288
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
251 4-933-134-11 SCREW (+PTPWH M2.6X8)
252 4-221-679-01 CAM (RELAY)
253 4-231-452-01 TABLE (NEW)
254 4-221-686-01 LEVER (CHANGE)
255 4-221-676-01 TRAY
256 4-933-134-51 SCREW (+PTPWH 2.6X8)
257 1-675-910-14 MOTOR BOARD
258 4-951-620-01 SCREW (2.6X8), +BVTP
259 1-791-983-11 WIRE (FLAT TYPE) (8 CORE)
260 1-675-911-14 SENSOR BOARD
261 1-675-912-14 DRIVER BOARD
262 X-4952-608-1 CAM (U/D) ASSY
263 4-221-681-01 LEVER (EX)
264 4-221-682-01 LEVER (LIFTER)
265 4-221-688-01 PULLEY (B), CHUCKING
266 1-471-035-11 MAGNET ASSY
267 X-4952-019-1 PULLEY (A) ASSY, CHUCKING
268 X-4951-889-1 HOLDER (BU) ASSY
269 4-222-095-01 BELT
270 4-227-045-11 SPRING (INSULATOR), COIL
271 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
274 4-221-678-01 CAM (CONTROL)
275 4-221-683-01 GEAR (U)
276 4-221-685-01 PULLEY (S)
279 4-227-899-01 SCREW (DIA. 12), FROATING
282 4-222-097-01 SCREW, STEP
283 4-227-549-11 INSULATOR
284 4-231-151-01 STOPPER (BU)
0286 8-820-116-01 DEVICE,OPTICAL KSM-213DCP/Z-NP
287 A-4725-001-A BD BOARD, COMPLETE (E91,TH)
287 A-4725-003-A BD BOARD, COMPLETE (E,EA,IA,SP,TW)
288 1-782-817-11 WIRE (FLAT TYPE) (16 CORE)
M721 A-4672-826-A MOTOR ASSY
