Sony HCD-VX222 - FRONT PANEL SECTION

53
HCD-VX222

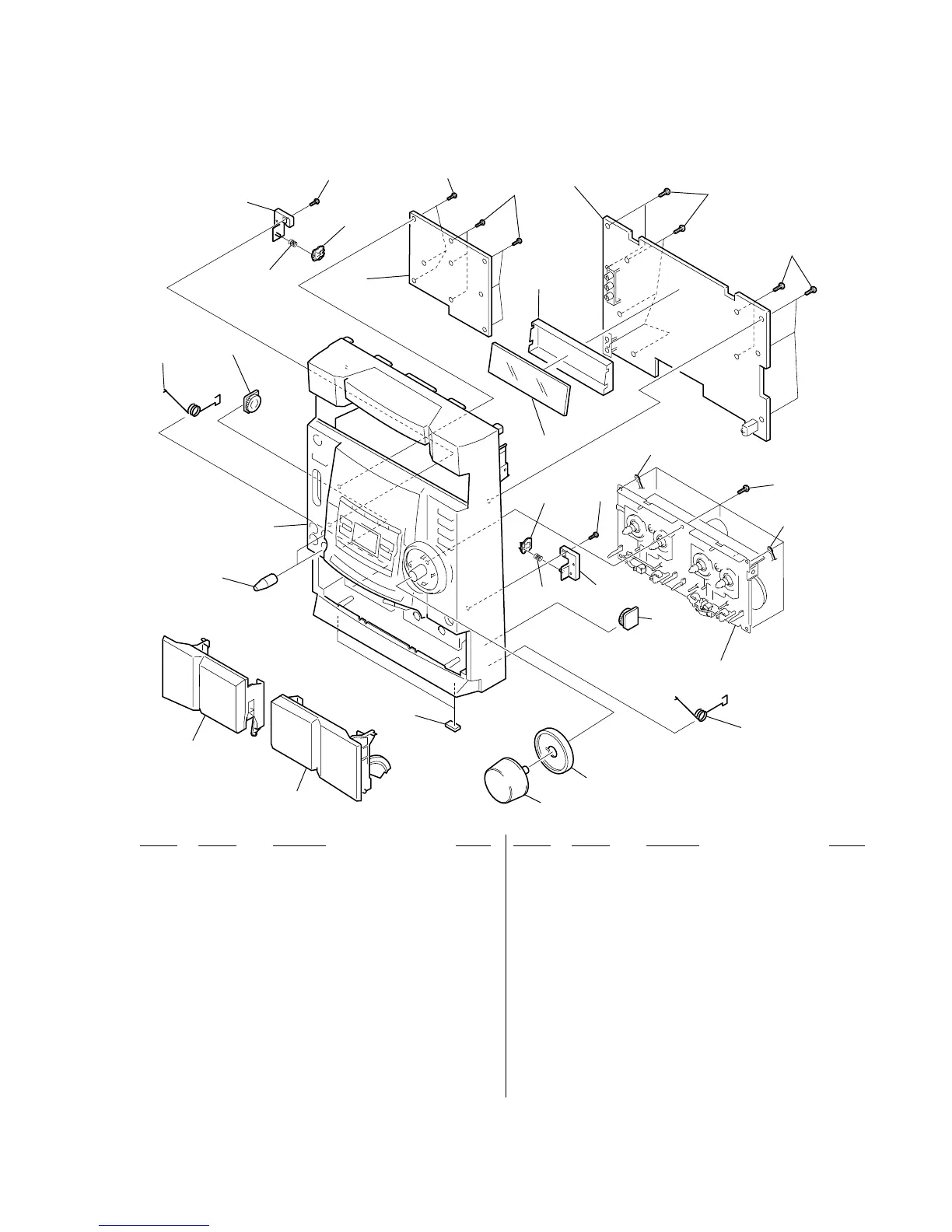

7-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
55
54
56
53
51
52
58
60
59
59
FLD1
not supplied
63
63
69
70
57
61
62
63
*63
*63
*63
*63
64
65
66
68
61
67
not supplie
d
* For service only (Be sure to refer to "Service note" on page 4.)
51 4-234-019-11 VOLUME KNOB… (BLACK)
51 4-237-847-01 VOLUME KNOB… (SILVER)
52 4-234-015-01 VOL KNOB RING
53 X-4953-783-1 FRONT PANEL ASSY… (BLACK)
53 X-4954-351-1 FRONT PANEL ASSY… (SILVER)
54 4-225-252-01 CUSHION (FOOT) (E,EA,IA,SP,TH,TW)
55 X-4953-759-1 CASSETTE WINDOW (R) ASSY… (BLACK)
55 X-4954-350-1 CASSETTE WINDOW (R) ASSY… (SILVER)
56 X-4953-758-1 CASSETTE WINDOW (L) ASSY… (BLACK)
56 X-4954-349-1 CASSETTE WINDOW (L) ASSY… (SILVER)
57 4-231-805-01 KNOB (MIC)
58 4-233-981-01 CASSETTE DOOR SPRING L
59 4-224-104-01 DAMPER (E,EA,IA,SP,TW)
59 4-224-104-11 DAMPER (TH)
60 4-224-562-01 BRACKET (HEART CAM L)
61 4-224-803-01 SPRING (PUSH), COMPRESSION
62 4-224-560-01 CAM (L), HEART
63 4-951-620-01 SCREW (2.6X8), +BVTP
64 1-681-447-11 KEY BOARD
65 4-234-016-01 FL HOLDER
66 A-4476-992-A PANEL BOARD, COMPLETE (E,EA,IA,SP)
66 A-4725-701-A PANEL BOARD, COMPLETE (TW)
66 A-4726-002-A PANEL BOARD, COMPLETE (TH)
67 4-224-559-01 CAM (R), HEART
68 4-224-561-01 BRACKET (HEART CAM R)
69 4-233-982-01 CASSETTE DOOR SPRING R
70 1-796-123-11 DECK, MECH
FLD1 1-518-729-11 INDICATOR TUBE, FLUORESCENT
Ver 1.2 2001.09
