HCD-VX5A/VX5AJ/VX7A
– 35 –
– 36 –

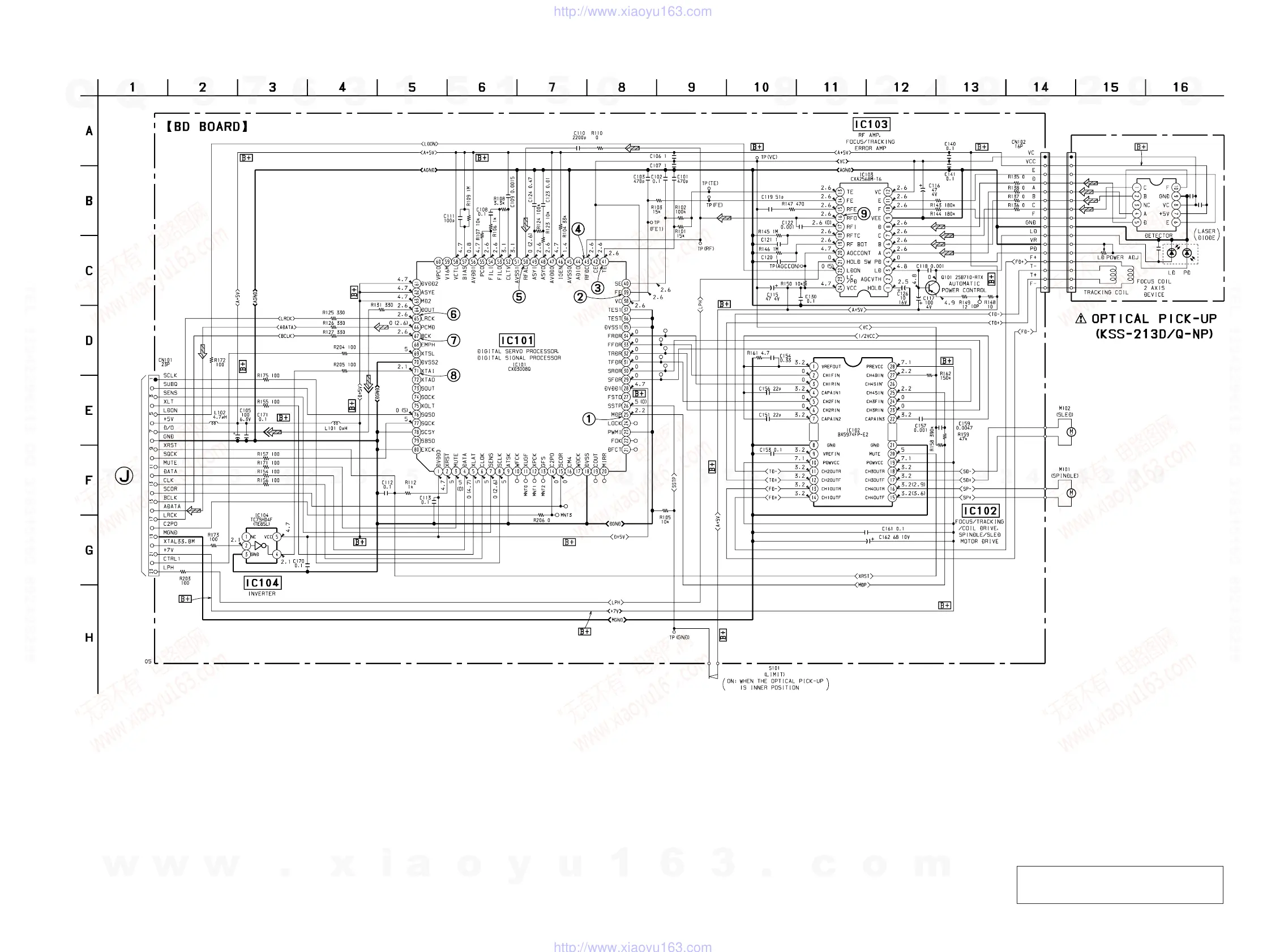

7-8. SCHEMATIC DIAGRAM – BD Board – • See page 75 for Waveforms. • See page 76 for IC Block Diagrams.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : CD STOP
( ) : CD PLAY
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
(Page 37)
