Sony HCD-VX7A - Printed Wiring Board - PANEL Board

HCD-VX5A/VX5AJ/VX7A
– 65 –
– 66 –

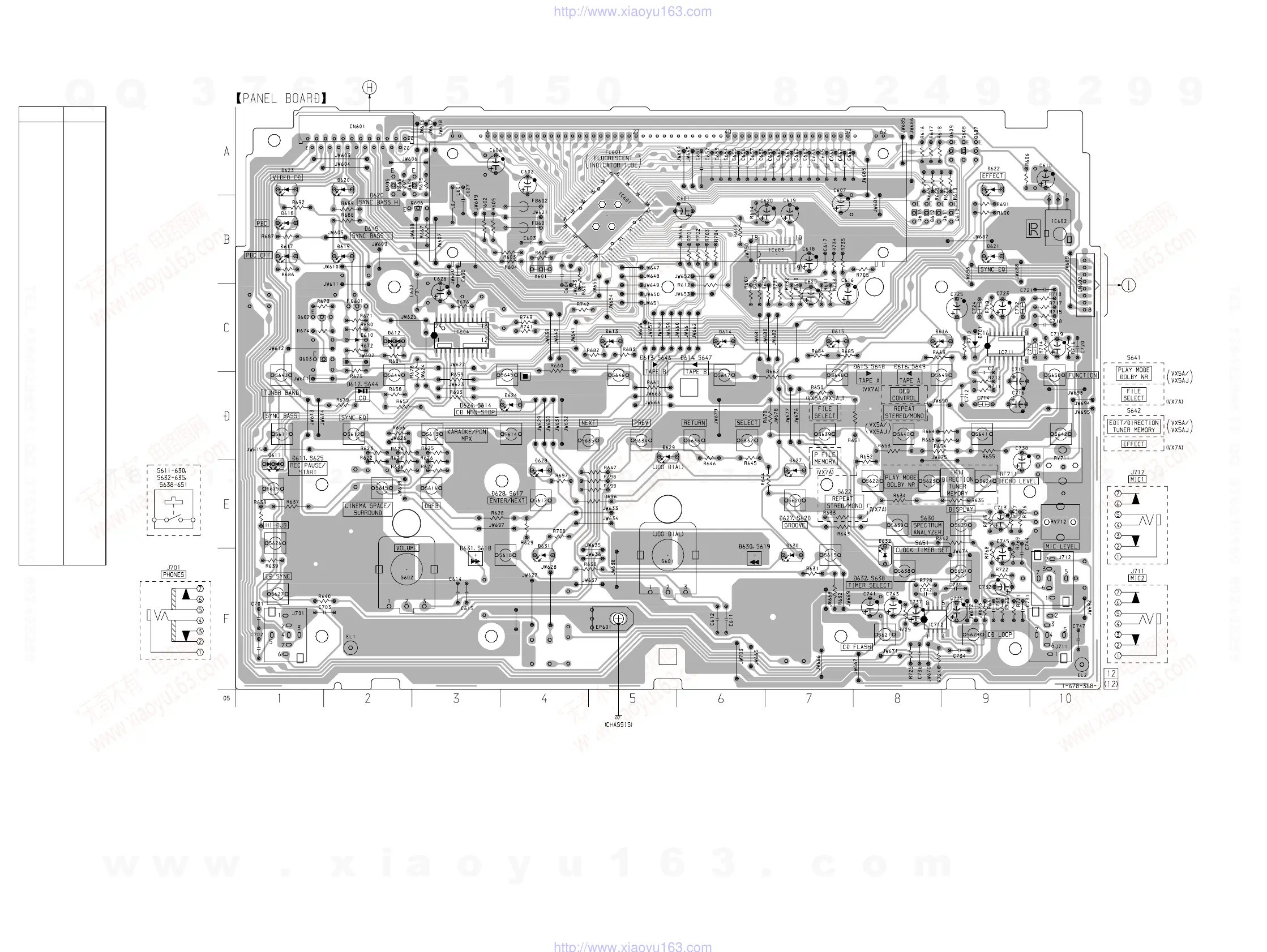

7-23. PRINTED WIRING BOARD – PANEL Board – • See page 32 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D610 C-2
D611 E-1
D612 C-2
D613 C-5
D614 C-6
D615 C-7
D616 C-8
D617 B-1
D618 B-1
D619 B-2
D620 A-2
D621 B-9
D622 A-9
D623 A-1
D624 D-4
D627 E-7
D628 E-4
D629 D-5
D630 F-7
D631 F-4
D632 F-8
D701 C-9
IC601 B-5
IC602 B-10
IC603 B-7
IC604 C-3
IC711 C-9
IC712 F-8
Q601 C-2
Q602 C-1
Q603 C-1
Q604 A-3
Q605 A-2
Q606 B-3
Q607 A-9
Q608 A-9
Q609 A-9
Q610 B-9
Q611 B-8
Q612 B-8
Q613 B-8
(Page 55)
(Page 69)
