HCD-VX5A/VX5AJ/VX7A
• Voltages are dc with respect to ground under no-signal
conditions.
no mark : TAPE PLAY
( ) : RECORD
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
PB LEVEL (L)
(DECK A)
PB LEVEL (R)
(DECK A)
PB LEVEL (L)
(DECK B)
PB LEVEL (R)
(DECK B)
PB EQ AMP
(DECK A)
PB EQ AMP
(DECK B)
SWITCHING
REC BIAS (L)
(DECK B)
REC BIAS (R)
(DECK B)
BIAS OSC
REC BIAS
-6.8
(PLAYBACK)
D

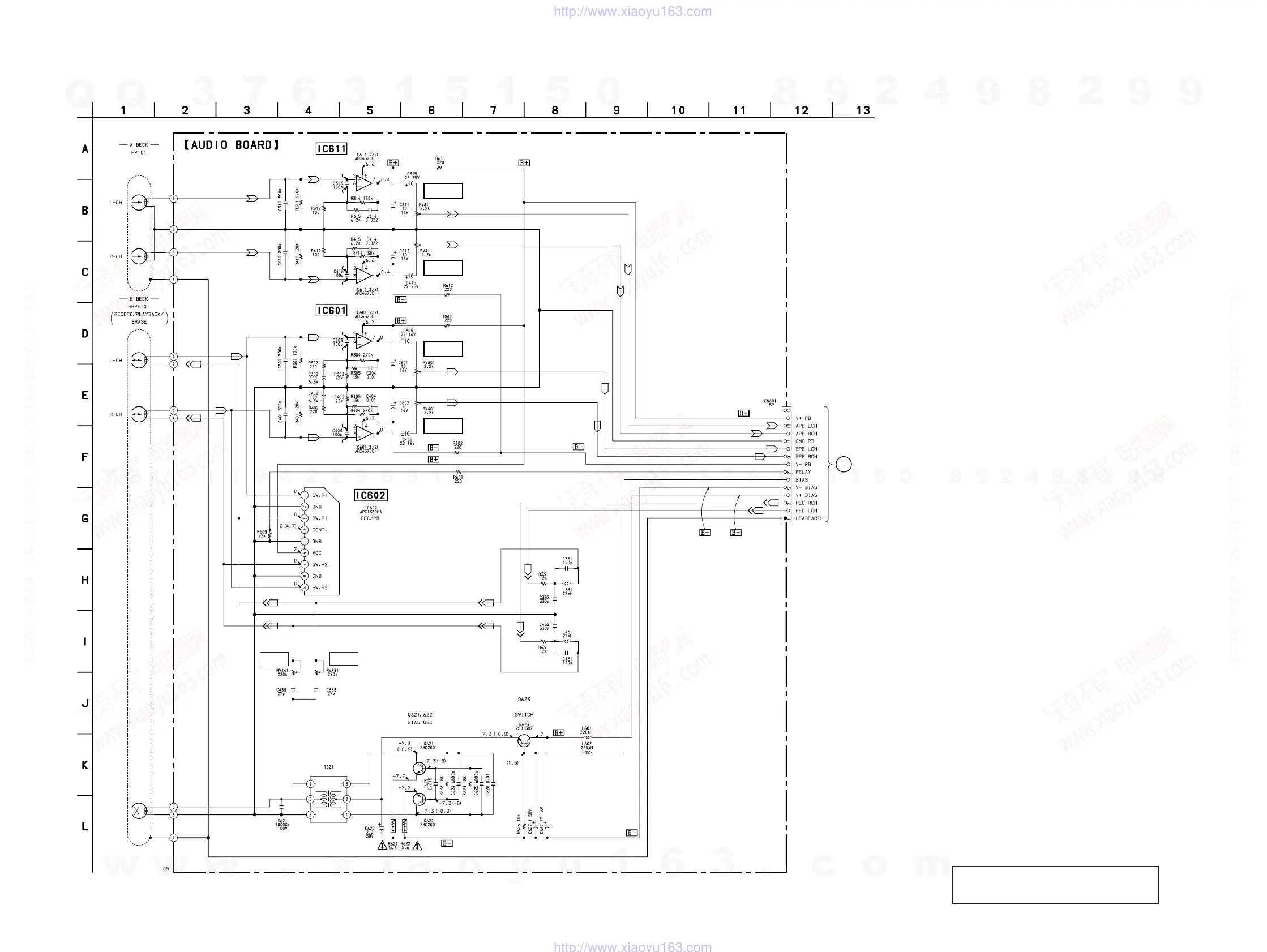

7-15. SCHEMATIC DIAGRAM – AUDIO Board – • See page 79 for IC Block Diagram.
(Page 61)
– 51 –
