– 90 –

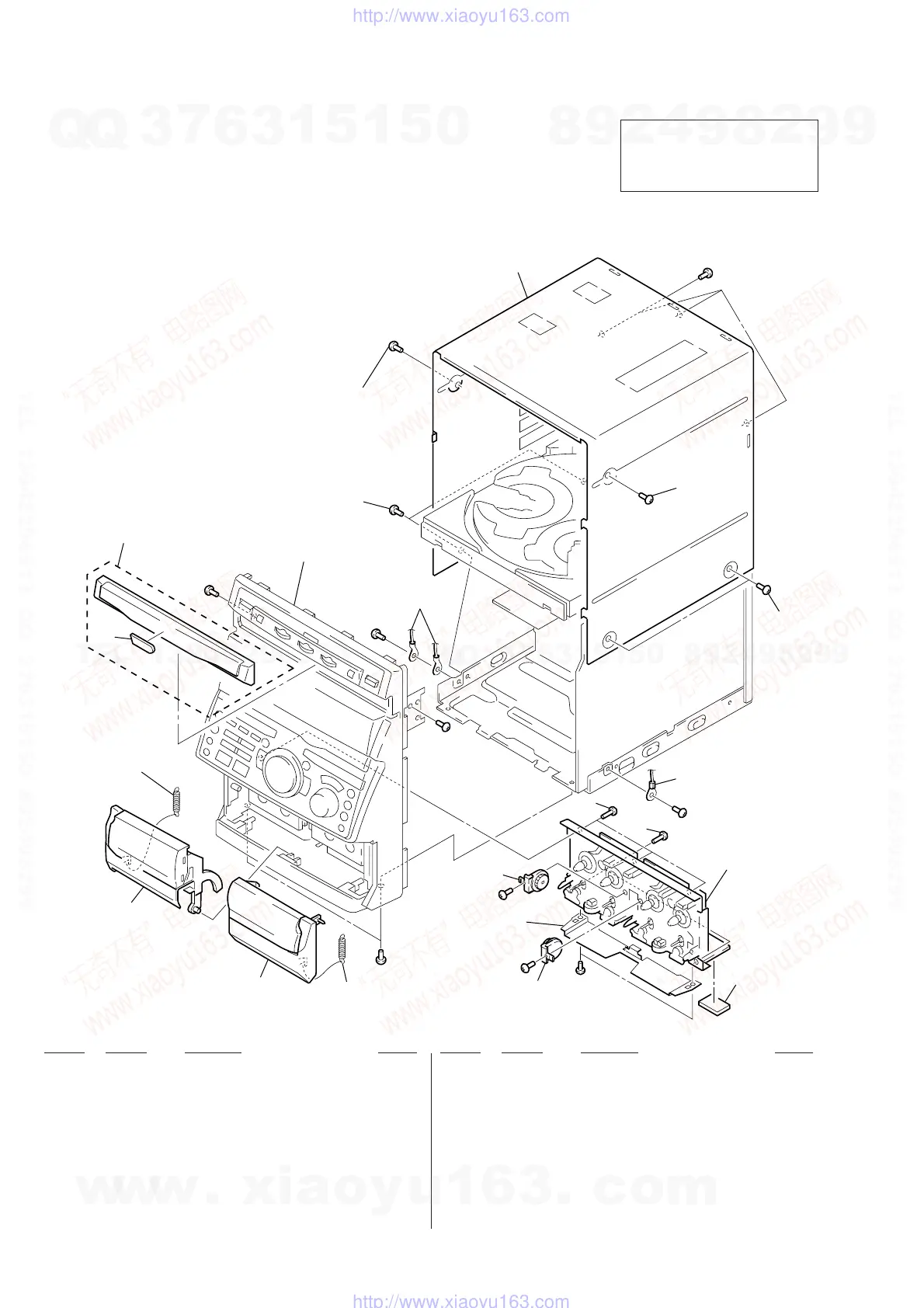

(1) COVER SECTION
SECTION 8
EXPLODED VIEWS
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list is given in the last of
the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
EA : Saudi Arabia model
HK : Hong Kong model
IA : Indonesian model
JE : Tourist model
MY : Malaysia model
SP : Singapore model
TH : Thai model
TW : Taiwan model
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 X-4950-832-1 HOLDER (R) ASSY, CASSETTE (SILVER)
1 X-4950-971-1 HOLDER (R) ASSY, CASSETTE (GRAY)
2 X-4950-828-1 HOLDER (L) ASSY, CASSETTE (SILVER)
2 X-4950-970-1 HOLDER (L) ASSY, CASSETTE (GRAY)
3 X-4950-961-1 PANEL ASSY, LOADING (VX5A) (GRAY)
3 X-4950-963-1 PANEL ASSY, LOADING (VX7A) (GRAY)
3 X-4951-026-1 PANEL ASSY, LOADING (VX5A) (SILVER)
3 X-4951-027-1 PANEL ASSY, LOADING (VX7A) (SILVER)
3 X-4951-577-1 PANEL ASSY, LOADING (VX5AJ)
4 3-363-099-01 SCREW (CASE 3 TP2) (3X8) (GRAY)
4 3-363-099-11 SCREW (CASE 3 TP2) (3X8) (SILVER)
5 3-363-099-41 SCREW (CASE 3 TP2) (3X12)(GRAY)
5 3-363-099-71 SCREW (CASE 3 TP2) (3X12)(SILVER)
6 4-215-179-01 COVER (SILVER)
* 6 4-215-752-61 COVER (GRAY)
7 4-951-620-01 SCREW (2.6X8), +BVTP
8 4-215-062-01 DAMPER
9 4-985-642-01 CUSHION
10 4-219-087-01 SPRING, TENSION
11 4-991-781-01 EMBLEM (VCD)
TCM-230AWR
2
not supplied
not supplied
#5
#3
#3
#3
#4
#4
front panel section
not supplied
#5
#6
7
7
8
9
8
1
10
10
2
3
11
4
5
5
4
6
#1
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
