Sony HCD-XGR88 - Page 11

11
HCD-XGR88

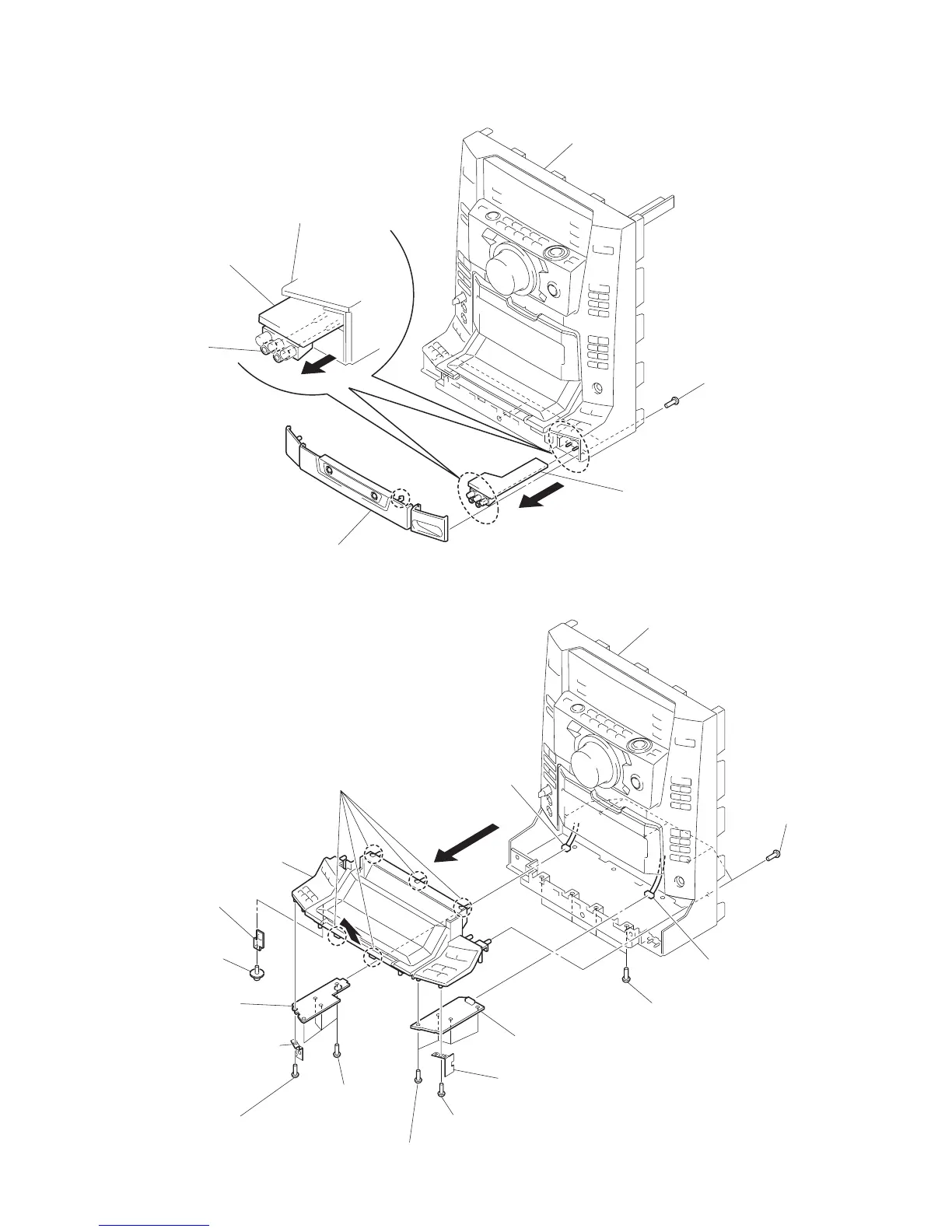

2-9. CD-L BOARD, DOOR SW BOARD, CD-R BOARD
1 Five screws (BVTP 2.6x8)
4 FRONT INPUT board
Front panel
2 Bumper ASSY
J500
FRONT INPUT board
Front panel
3
1 Five screws (BVTP 2.6x8
)
Front panel
2 Four screws (BVTP 2.6x8)
qg Screw (BVTP 2.6x8)
qj Four screws (BVTP 2.6x8)
9 Screw (BVTP 2.6x8)
qa Four screws
(BVTP 2.6x8)
5 Five claws
qf DOOR SW
board
qd Froating screw
(DIA.12)
0 BRACKET (S/P) (L)
qs CD-L board
8 Sub panel CD ASSY
qk CD-R board
qh BRACKET (S/P) (R)
4 Connector (CN600)
3 Connector (CN700)
6
7
2-8. FRONT INPUT BOARD
