Sony HCD-XGR88 - Page 12

12
HCD-XGR88
0 DC FAN
(M901)
1 Flat type wire (CN441)
7 Back panel
2 Eight screws
(BVTP 3 X 8)
5 Four screws
(BVTP 3 X 8)
4 Three screws
(BVTP 3 X 8)
qd Two screws
(BVTP 3 X 8)
qf Two connectors
(CN901, 902)
3 Two screws
(BVTP 3 X 8)
9 Two screws
(BVTP 3 X 8)
8 Connector (CN961)
qs Connector (CN411)
qa Flat type wire
(CN401)
qg MAIN board
6

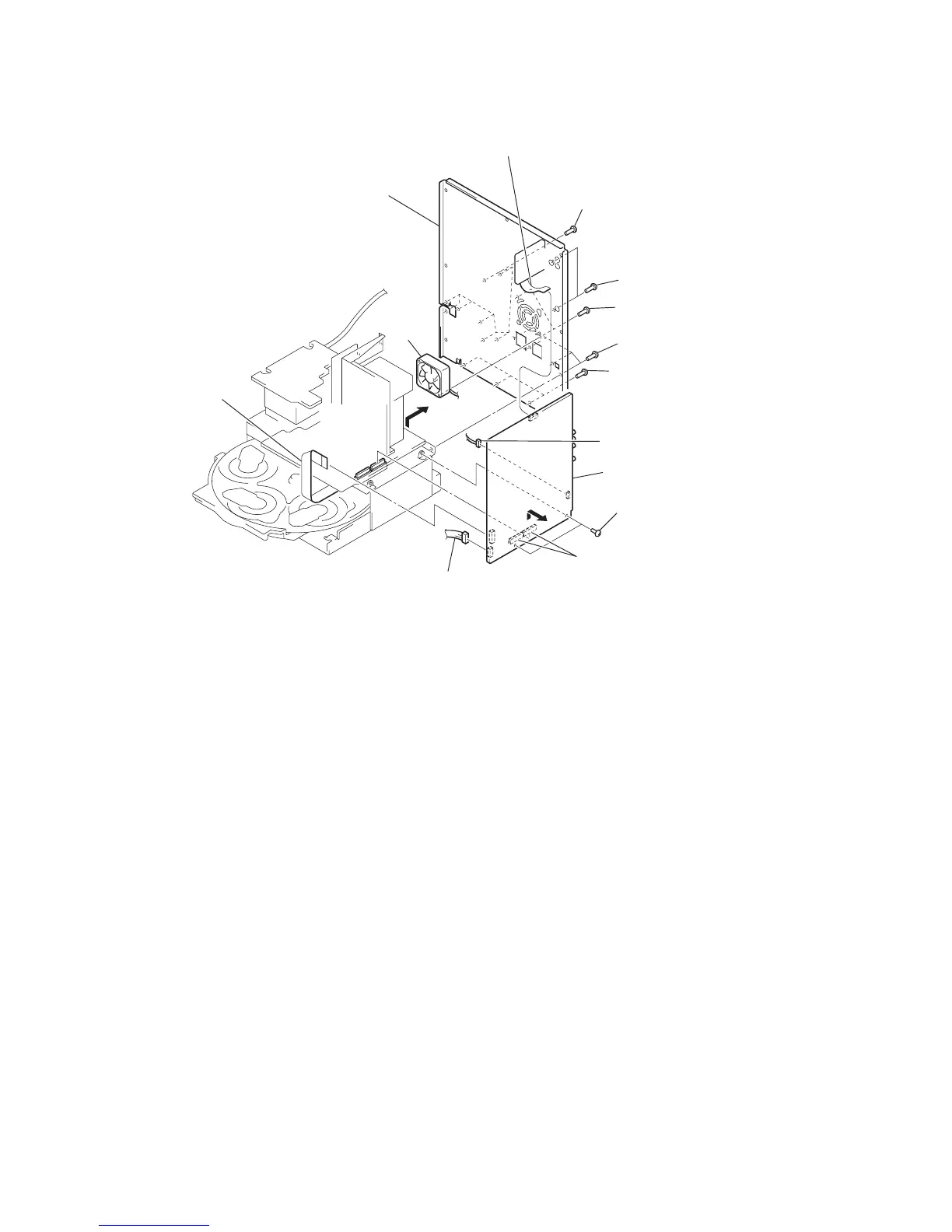

2-10. BACK PANEL, DC FAN, MAIN BOARD
