Sony HCD-XGR99AV - 1 Servicing Note

4
HCD-XGR99AV
SECTION 1
SERVICING NOTE

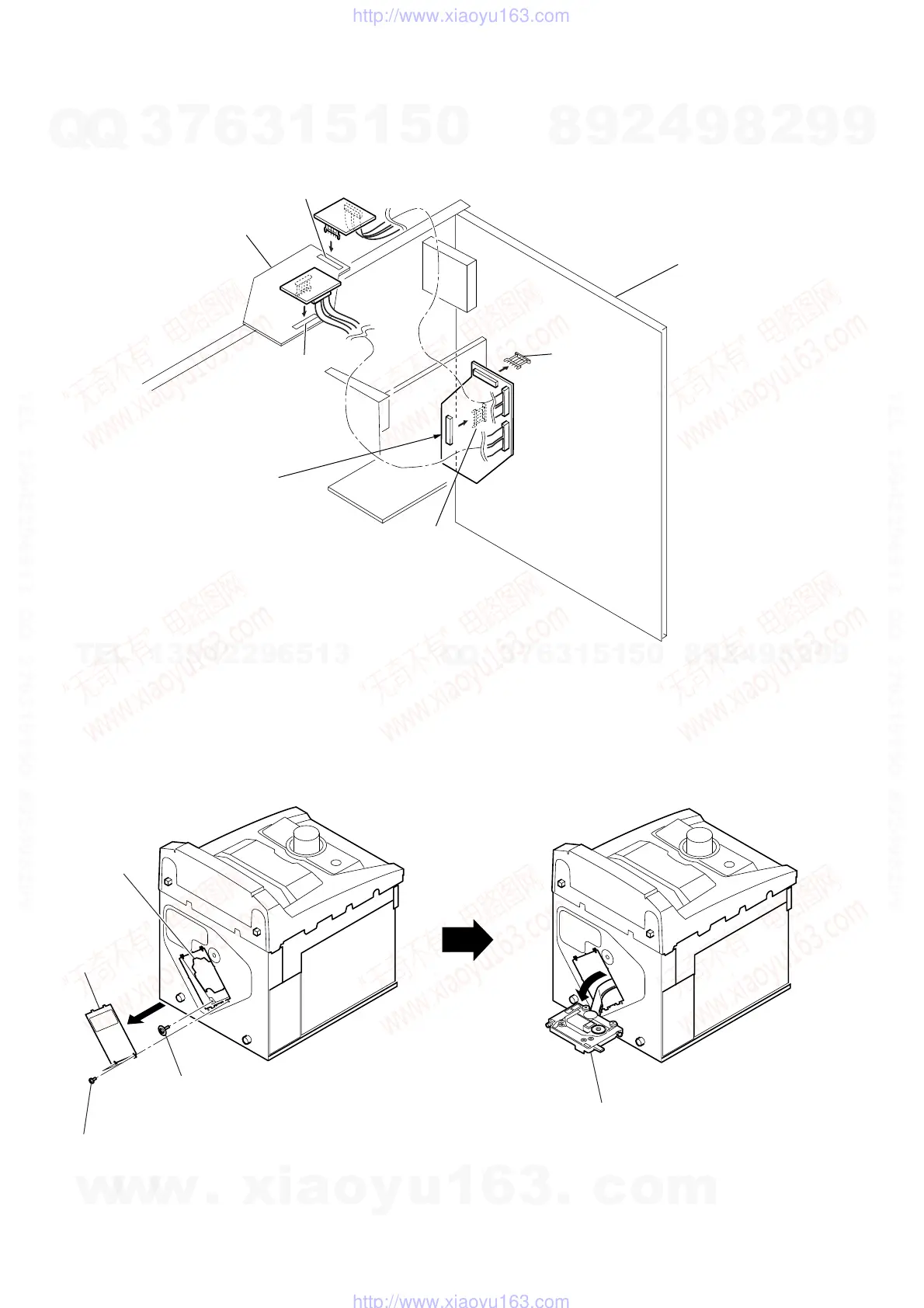

JIG FOR CHECKING PROLOGIC BOARD
CN201
MAIN board
CN151
CN152
CN202
PROLOGIC board
Jig (J-2501-216-A)
The special jig (J-2501-216-A) is useful for checking the PROLOGIC board.
SERVICE POSITION FOR BD BOARD AND OPTICAL PICK-UP BLOCK
Optical pick-up block
BD board
4 BU fitting screw
3 Bottom plate
1 Two screws (+BVTP 3 x 8)
5
2
