Sony HDC2400 - Connection Example 3; Maximum Cable Run with Triax

11
Overview

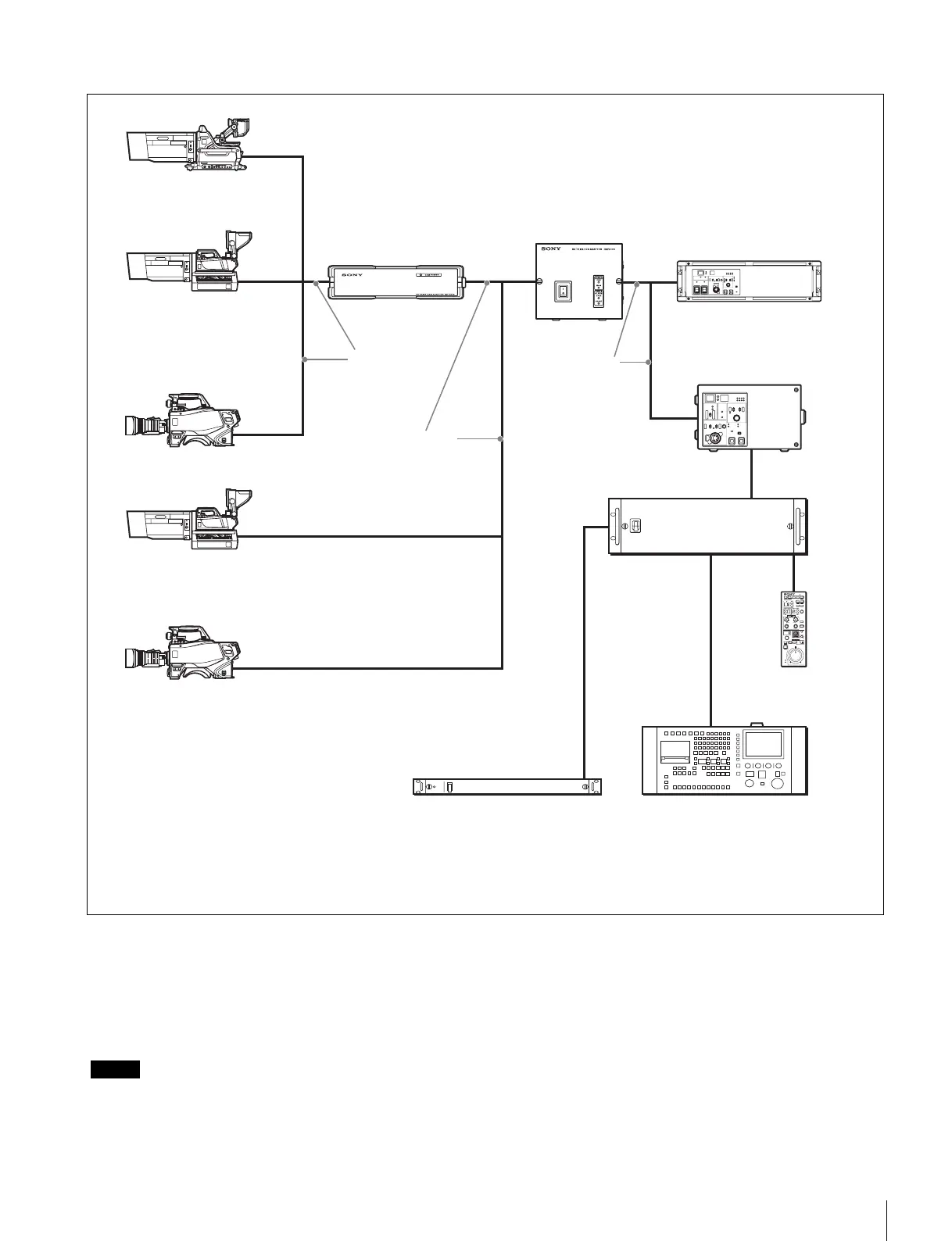

Connection example 3
Maximum cable run with Triax cable
The maximum Triax cable length between the HDC2500/
2400/2550 and the HDFX100 or between the HDFX100 and
the HDTX100 depends on the type of cable.
For details, refer to the Operation Manual of the HDFX100/
HDTX100.
Notes
• The viewfinders function as monochrome viewfinders when
monitoring a return video using the HDFX100 and the
HDTX100.
• The skin gate signal is superimposed on the camera video
signal. When tally becomes ON, the skin gate signal is
forced to OFF.
HDC2550 HD Color Video Camera
+Large Lens Adaptor
+HDVF-C730W/C950W Electronic Viewfinder
RCP-1000-series
Remote Control Panel
HDC2550 HD Color Video Camera
HDC2500/2400
HD Color Video Camera
2)
HDC2500/2400
HD Color Video Camera
1)
+Large Lens Adaptor
HDC2000
HD Color Video Camera
+Large Lens Adaptor
1) HDC2500 with Large Lens Adaptor attached is illustrated.
2) HDC2500 is illustrated.
HDCU2000
HD Camera Control Unit
MSU-1000/1500 Master Setup Unit
VCS-700 Video Selector
HDCU2500
HD Camera Control Unit
CNU-700 Camera
Command Network Unit
HDFX100
HD Triax CCU Adaptor
HDTX100
HD Triax Camera Adaptor
Optical fiber
cable
Optical fiber
cable
Tr i a x c ab le
