38

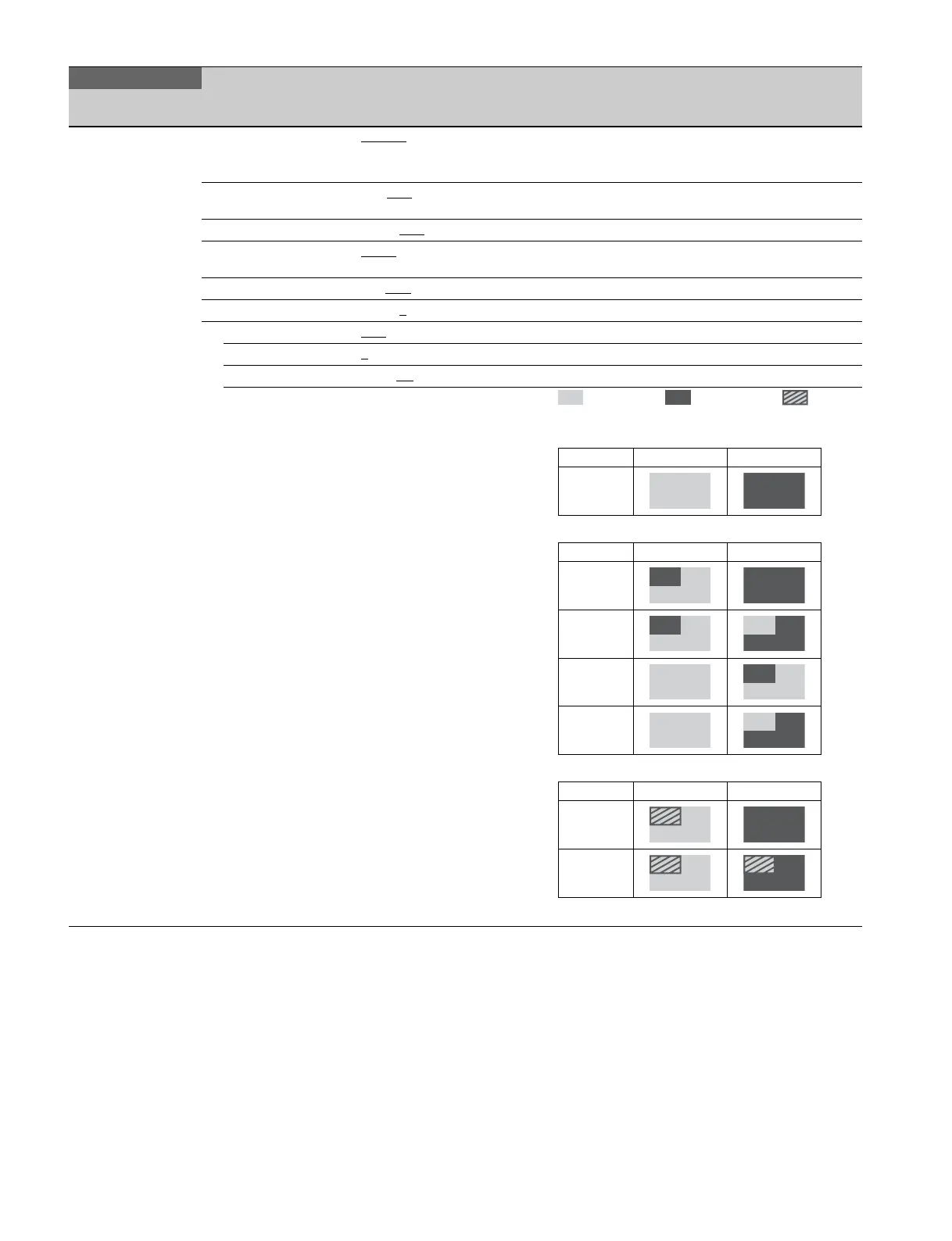

<VF OUT>
13 (U01)
VF OUT COLOR
, Y, R, G, B,
(COLOR), (Y), (R), (G), (B),
(RET), (R+G), (R+B), (G+B)
Settings in ( ): When HDLA is attached (cannot be
changed)
RET MIX VF ON, OFF
, (ON), (OFF) Settings in ( ): When HDLA is attached (cannot be
changed)
MIX DIRECTION MAIN, RET
MIX VF MODE Y-MIX, Y/C-MIX, WIRE(W),
WIRE(B)
MIX VF LEVEL 0 to 99%
CHARACTER LEVEL 0 to 5, 4
PinP OFF, RETURN, HD PROMPTER
POSITION 1
, 2, 3, 4
SIZE 1/2.5, 1/3
, 1/4
MODE PinP OFF: ---
PinP RETURN: 1, 2, 3, 4
PinP HD PROMPTER: 1, 2
: Main picture, : Return picture, : HD
Prompter picture
OPERATION
Page name
Page No.
Item Settings Description
PinP: OFF
PinP: RETURN
PinP: HD PROMPTER
Mode RET SW OFF RET SW ON
---
Mode RET SW OFF RET SW ON
1
2
3
4
Mode RET SW OFF RET SW ON
1
2
