Sony HT-A9 Help Guide

Help Guide
Home Theatre System
HT-A9

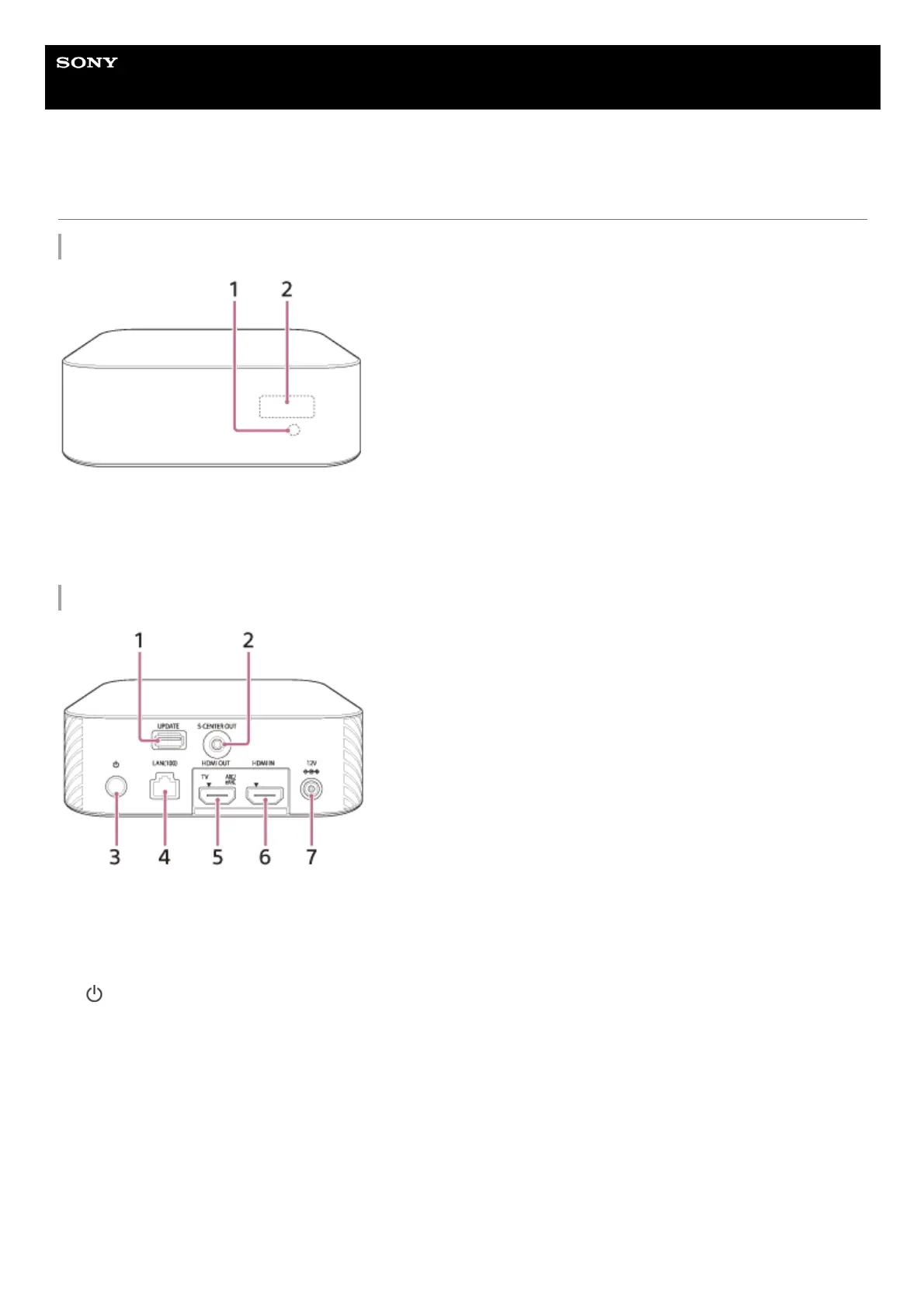

Control Box
Front
Rear
Remote control sensor
Point the remote control at the remote control sensor to operate the speaker system.
1.
Front panel display2.
UPDATE port
Connect the USB memory when updating the speaker system.
1.
S-CENTER OUT jack2.
(power) button
Turns on the speaker system or sets it to standby mode.
3.
LAN(100) port4.
HDMI OUT (TV ARC/eARC) jack
Connect a TV that has an HDMI input jack with an HDMI cable. The speaker system is compatible with eARC and
ARC. ARC is the function that sends TV sound to an AV device such as the speaker system from the TV’s HDMI
jack. eARC is an extension of ARC and enables transmission of the object audio and multi-channel LPCM content
that cannot be transmitted with ARC.
5.
HDMI IN jack6.
DC IN terminal7.
11

Sony HT-A9 Specifications

General

Tweeter	Yes
Speaker type	Full range
Number of drivers	-
Speaker placement	Floor, Tabletop/bookshelf
Audio output channels	- channels
Number of tweeter drivers	2
Audio decoders	DTS, DTS-ES, DTS-HD HR, DTS-HD Master Audio, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby Dual Mono, Dolby TrueHD
RMS rated power	504 W
Bluetooth version	5.0
USB connector type	USB Type-A
USB 2.0 ports quantity	1
Connectivity technology	Wireless
Product color	Gray
Recommended usage	Home
Cables included	AC, HDMI
Quantity per pack	4 pc(s)
Package type	Box
Package depth	213 mm
Package width	725 mm
Package height	468 mm
Package weight	16000 g

Weight and Dimensions

Depth	147 mm
Width	160 mm
Height	313 mm
