Sony HVR-Z5E User Manual

4-73
HVR-Z5C/Z5E/Z5J/Z5N/Z5P/Z5U
FP-966 (1 layer), FP-965 (2 layers) , FP-969 (1 layer)
: Uses unleaded solder.
FP-966, FP-965, FP-969
1
10
43
12
3
12
3
12
R401
C401
C402
C403
IC401
IC402
IC403
LND401
LND402
LND403
LND404
LND405
LND408
LND409
LND410

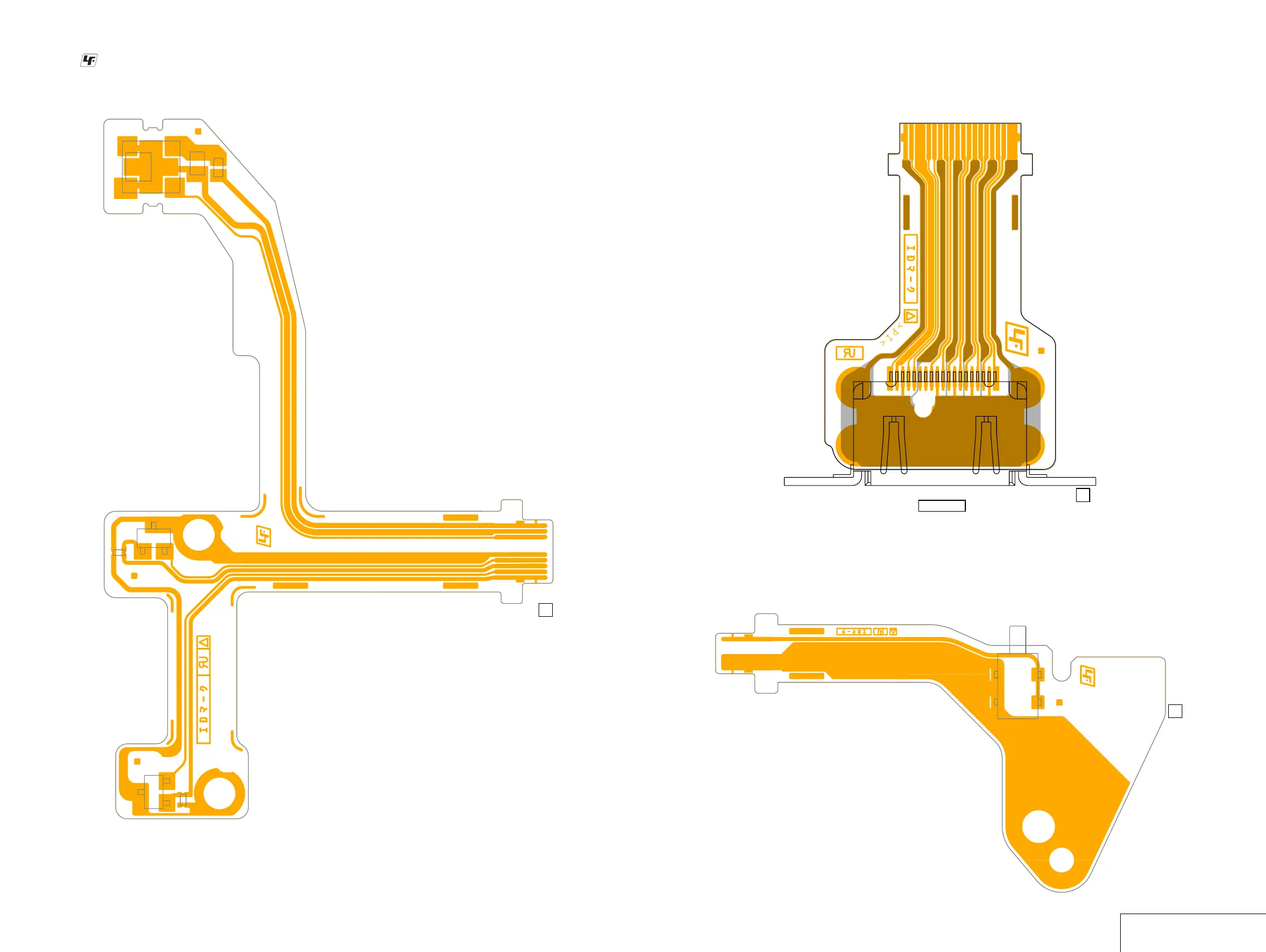

FP-966 FLEXIBLE BOARD
08
1-876-936-
11
FP-965 FLEXIBLE BOARD
08
1-876-935-
11
19 1
120
23 21
2022
CN001
HDMI OUT
LND001 LND002 LND003 LND004 LND005 LND006 LND007 LND008 LND009 LND010 LND011 LND012 LND013 LND014 LND015 LND016 LND017 LND018 LND019 LND020
S101
(EJECT)
LND101
1
2
4
3
LND104
LND105
LND106
1-876-940-
FP-969 FLEXIBLE BOARD
08
11
1
6

Sony HVR-Z5E Specifications

General

Filter size	72 mm
Digital zoom	0 x
Optical zoom	20 x
Image stabilizer	No
Focal length range	36.1 - 590 mm
Interchangeable lens	Yes
Sensor type	CMOS
Total megapixels	- MP
Optical sensor size	1/3 \
Viewfinder type	-
Viewfinder resolution	1226880 pixels
Viewfinder screen size	0.45 \
Display diagonal	3.2 \
Display aspect ratio	16:9
Maximum video resolution	- pixels
Analog signal format system	PAL
Camcorder tape type	HDV
Camcorder media type	Videotape
Internal storage capacity	- GB
Camera shutter speed	1/4 - 1/10000 s
Camcorder type	Shoulder camcorder
Minimum illumination	1.5 lx
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) out	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Product color	Black
Battery capacity	- mAh
Battery life (max)	- h
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	188 mm
Width	169 mm
Height	451 mm
Weight	2200 g
