5-16
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z5C/Z5E/Z5J/Z5N/Z5P/Z5U
M901
LS / Mechanical chassis
block assembly-1
(See page 5-17)
708
703
704
701
ns
714
715
712
713
711
705
705
705
709
710
707
702
706

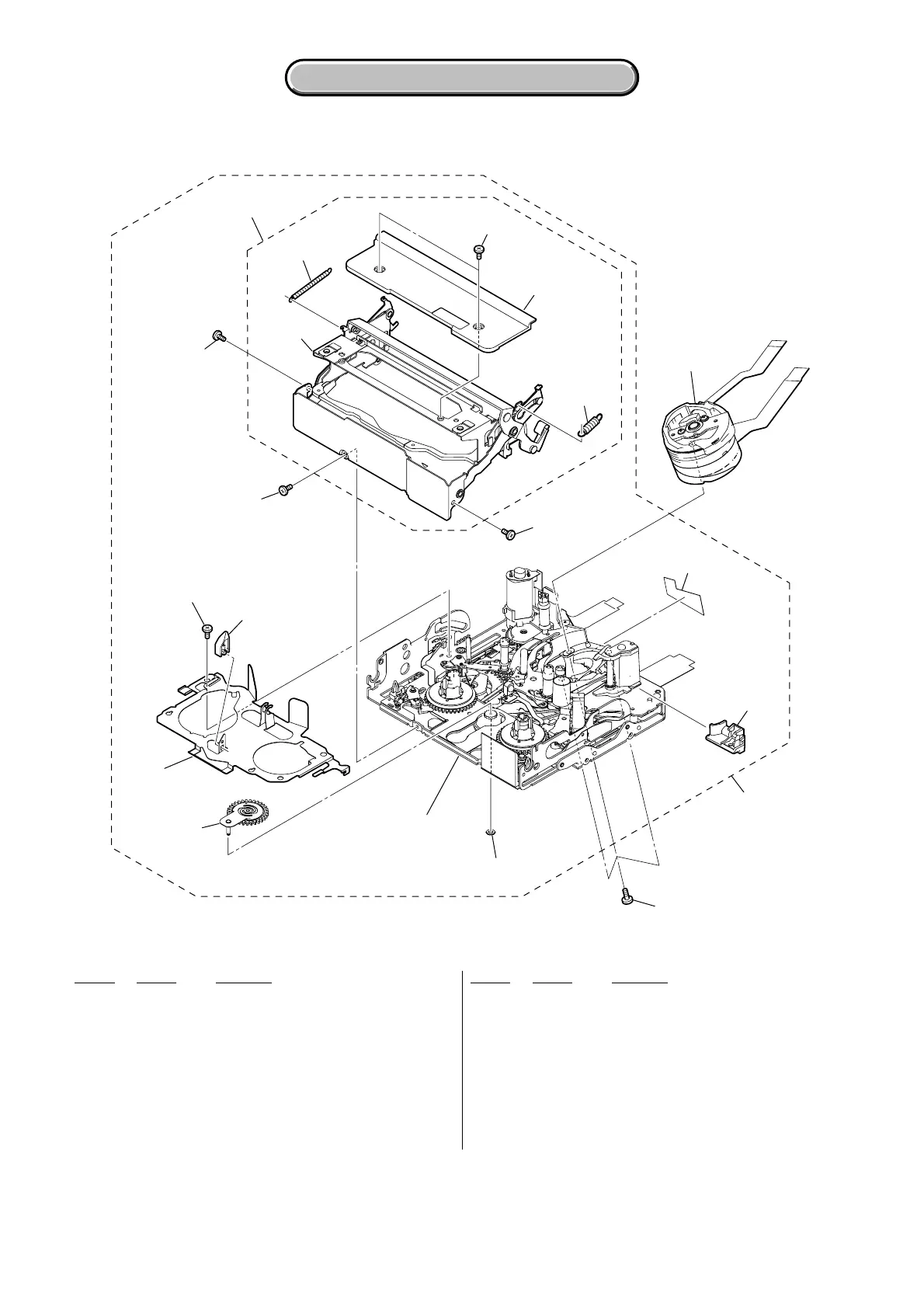

5-1-15. MECHANISM DECK SECTION
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
701 X-2024-478-1 PENDULUM ASSY
702 2-342-917-02 BASE, LED
703 7-627-850-77 SCREW, PRECISION +P 1.4X1.8
704 3-079-366-11 RELEASE, REEL LOCK
705 3-703-816-08 SCREW (M1.4X1.4), SPECIAL HEAD
706 X-2103-406-3 CASSETTE COMPARTMENT ASSY
707 2-342-926-01 SPRING (ARM S), TENSION COIL
708 2-666-376-11 SCREW (1.4X1.0), POWER LOCK
709 2-342-933-02 PLATE, TOP
710 2-342-927-01 SPRING (ARM T), TENSION COIL
711 2-541-585-01 HEET, FLEXIBLE ADHESIVE
712 2-342-918-01 TG6 CATCHER
713 A-1437-006-A MD (N220) SUB ASSY (S) A
714 3-703-816-13 SCREW (M1.4X2.0), SPECIAL HEAD
715 3-315-414-31 WASHER
M901 A-1128-533-A DRUM (DEH-33B-R)
