Sony HVR-Z5E User Manual

6-24
HVR-Z5C/Z5E/Z5J/Z5N/Z5P/Z5U

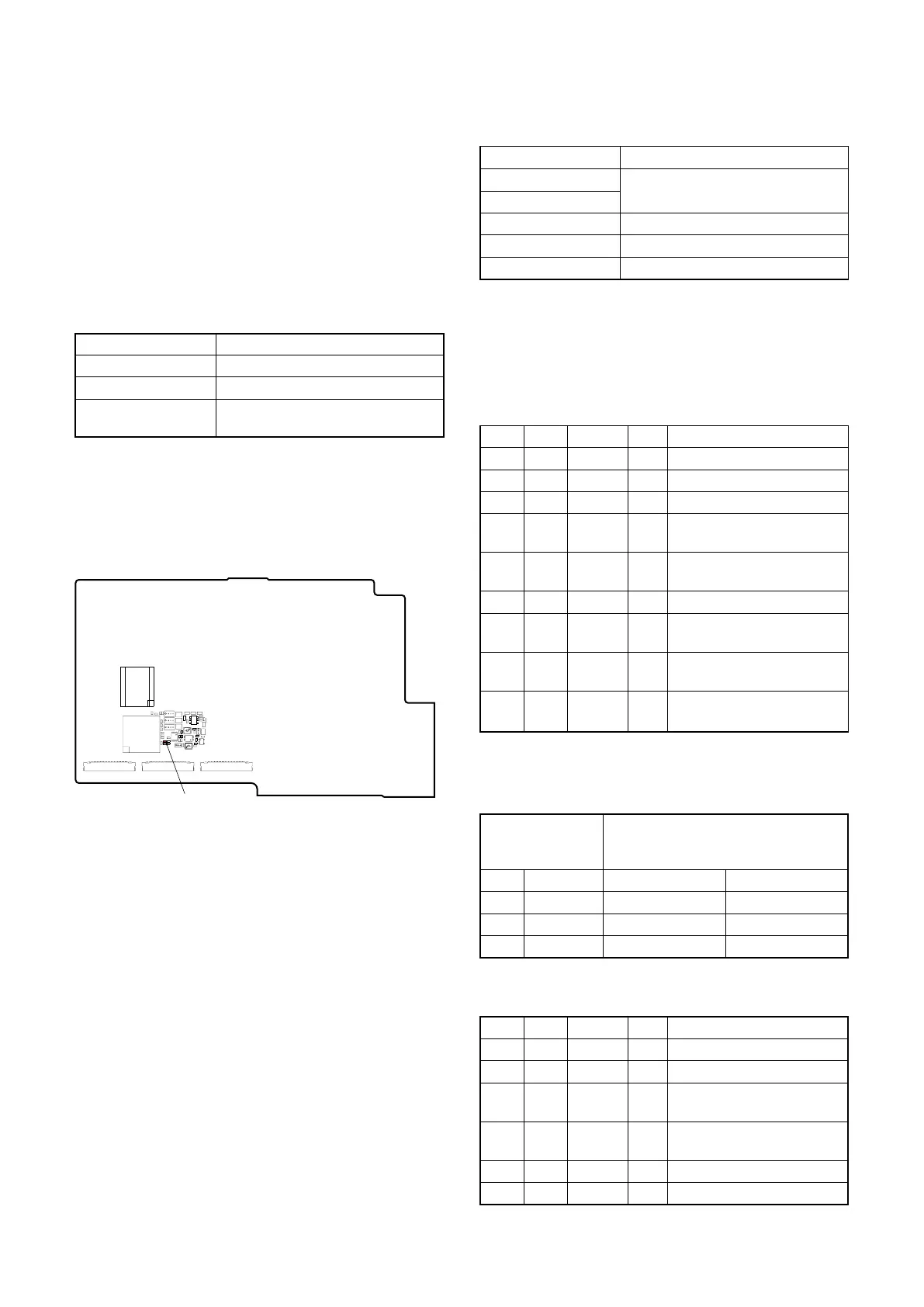

1-3. CAMERA SYSTEM ADJUSTMENTS
Before perform the camera system adjustments, check that the
specified values of “VIDEO SYSTEM ADJUSTMENTS” are sat-
isfied. (Except Origin Oscillation Check”)
Check that the data of page: 0, address: 10 is “00”.
If not, select page: 0, address: 10, and set the data “00”.
1-3-1. Camera System Adjustments
1. Origin Oscillation Check (VC-543 board)
Check the frequency of the clock for synchronization.
If deviated, the synchronization will be disrupted and the color
will become inconsistent.
Subject Not required
Measurement Point R1414 (CHCK) on VC-543 board
Measuring Instrument Frequency counter
Specified value f = 41538461 ± 835 Hz (NTSC)
f = 41580000 ± 835 Hz (PAL)
Switch setting
1) POWER ......................................................... CAMERA mode
Checking method:
1) Check that the frequency (f) satisfies the specified value.
Fig. 6-1-5
IC1401
R1414
VC-543 BOARD (SIDE A)
IC1601
2. Coaxial Harness Connecting Check
RadarW
RadarW
RadarW
RadarW
RadarW
Check if the coaxial harness of CMOS is connected correctly.
Subject Not required
Measurement Point
Measuring Instrument
Adjusting remote commander
Adjustment Page 6
Adjustment Address D1 to D6
Specified value Data of page: 6, address: D0 is “07”
Note 1: Check that the data of page: 6, address: 02 is “00”
If not, select page: 6, address: 01, set data: 00, and press
the PAUSE (Write) button.
Switch setting
1) POWER ......................................................... CAMERA mode
Adjusting method:
Order Page Address Data Procedure
1 0 01 01
2 6 07 Check the data is “04”.
3 0 10 09
4
E
90 10
(9E)
5
E
80 00
(9E)
6 0 10 00
7 6 01 EB
Press PAUSE (Write)
button.(Note 2)
86 02
Check the data changes to
“01”.
96 D0
Check the data is “07”.
(Note 3)
Note 2: The adjustment data will be automatically input to page:
6, address: D1 to D6.
Note 3: For the error codes of bit 0 to bit 2 of data of page: 6,
address: D0, see the following table.
Bit value of data of
Error contents
page: 6,
address: D0
Bit Function When bit value = 0 When bit value = 1
0 R Error exists No error
1 G Error exists No error
2 B Error exists No error
Example: If an error exists in G, data is “05”
Processing after Completing Adjustment:
Order Page Address Data Procedure
1 6 01 00 Press PAUSE (Write) button.
2 0 10 09
3
E
90 00
(9E)
4
E
80 70
(9E)
5 0 10 00
6 0 01 00

Sony HVR-Z5E Specifications

General

Filter size	72 mm
Digital zoom	0 x
Optical zoom	20 x
Image stabilizer	No
Focal length range	36.1 - 590 mm
Interchangeable lens	Yes
Sensor type	CMOS
Total megapixels	- MP
Optical sensor size	1/3 \
Viewfinder type	-
Viewfinder resolution	1226880 pixels
Viewfinder screen size	0.45 \
Display diagonal	3.2 \
Display aspect ratio	16:9
Maximum video resolution	- pixels
Analog signal format system	PAL
Camcorder tape type	HDV
Camcorder media type	Videotape
Internal storage capacity	- GB
Camera shutter speed	1/4 - 1/10000 s
Camcorder type	Shoulder camcorder
Minimum illumination	1.5 lx
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) out	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Product color	Black
Battery capacity	- mAh
Battery life (max)	- h
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	188 mm
Width	169 mm
Height	451 mm
Weight	2200 g
