Sony HVR-Z5E User Manual

6-1
HVR-Z5C/Z5E/Z5J/Z5N/Z5P/Z5U
SECTION 6
ADJUSTMENTS
1. Before starting adjustments

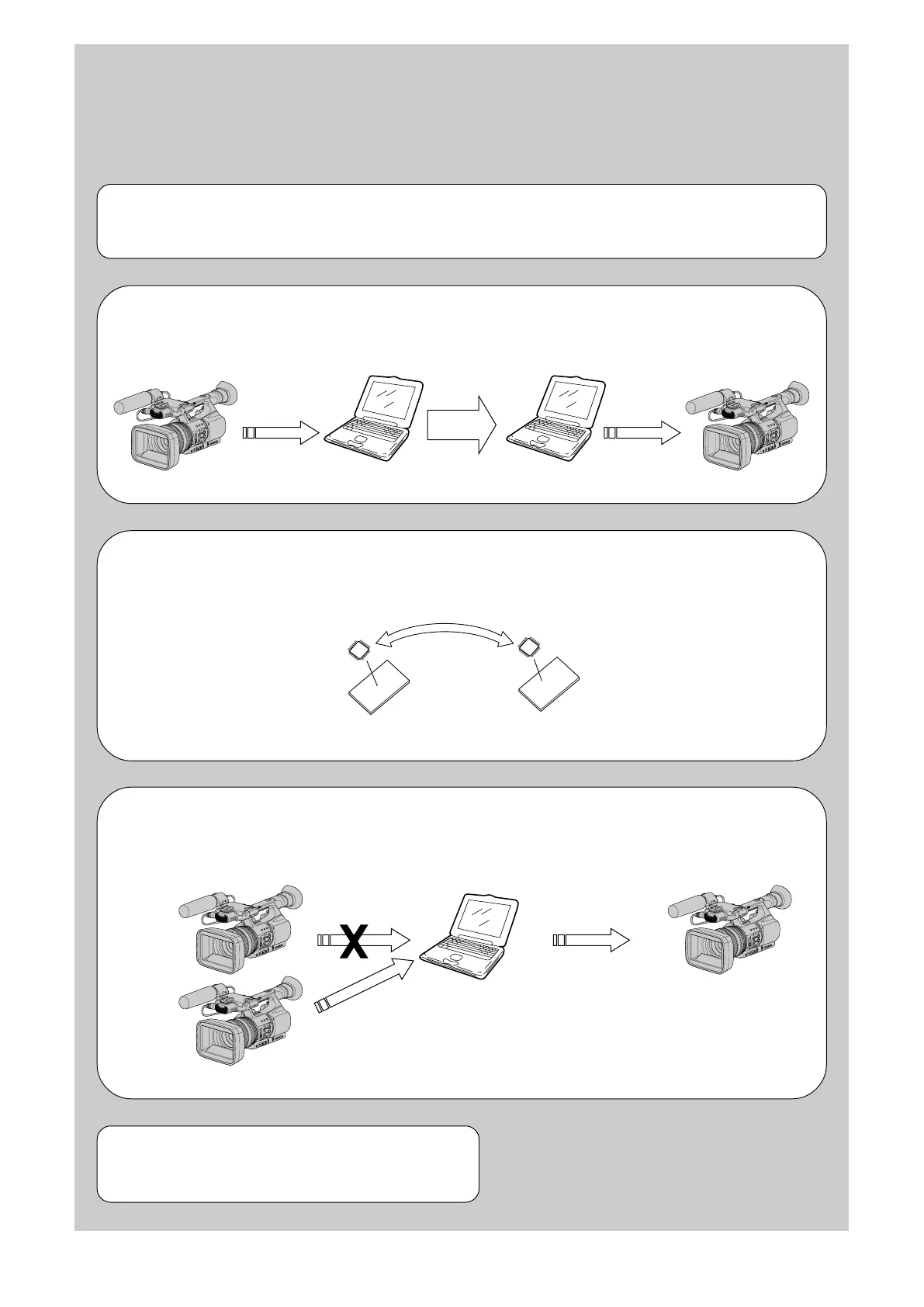

EVR Data Re-writing Procedure When Replacing Board
The data that is stored in the repair board, is not necessarily correct.
Perform either procedure 1 or procedure 2 or procedure 3 when replacing board.
Procedure 1
Save the EVR data of the machine in which a board is going to be replaced. Download the saved data after a
board is replaced.
Remove the EEPROM and install it.
(Former board)
(New board)
Procedure 2
Remove the EEPROM from the board of the machine that is going to be repaired. Install the removed
EEPROM to the replaced board.
Procedure 3
When the data cannot be saved due to defective EEPROM, or when the EEPROM cannot be removed or
installed, save the data from the same model of the same destination, and download it.
After the EVR data is saved and downloaded, check the
respective items of the EVR data.
(Refer to page 6-3 for the items to be checked)
(Machine before starting repair)
(Machine after a board is replaced)
PC PC
Save the EVR data
to a personal computer.
Download the saved
data to a machine.
(Machine to be repaired) (Machine to be repaired)
(The same model of the same destination)
Save the data.
Download the data.
PC

Sony HVR-Z5E Specifications

General

Filter size	72 mm
Digital zoom	0 x
Optical zoom	20 x
Image stabilizer	No
Focal length range	36.1 - 590 mm
Interchangeable lens	Yes
Sensor type	CMOS
Total megapixels	- MP
Optical sensor size	1/3 \
Viewfinder type	-
Viewfinder resolution	1226880 pixels
Viewfinder screen size	0.45 \
Display diagonal	3.2 \
Display aspect ratio	16:9
Maximum video resolution	- pixels
Analog signal format system	PAL
Camcorder tape type	HDV
Camcorder media type	Videotape
Internal storage capacity	- GB
Camera shutter speed	1/4 - 1/10000 s
Camcorder type	Shoulder camcorder
Minimum illumination	1.5 lx
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) out	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Product color	Black
Battery capacity	- mAh
Battery life (max)	- h
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	188 mm
Width	169 mm
Height	451 mm
Weight	2200 g
