Sony HVR-Z5E User Manual

5-13
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HVR-Z5C/Z5E/Z5J/Z5N/Z5P/Z5U
MIC903
#53
#53
#49
#53
MIC901
553
551
554
556
557
555
552
(11mm × 11mm)
552
(11mm × 11mm)
HARDWARE LIST
5-1-12. MICROPHONE SECTION
Ref. No. Part No. Description Ref. No. Part No. Description

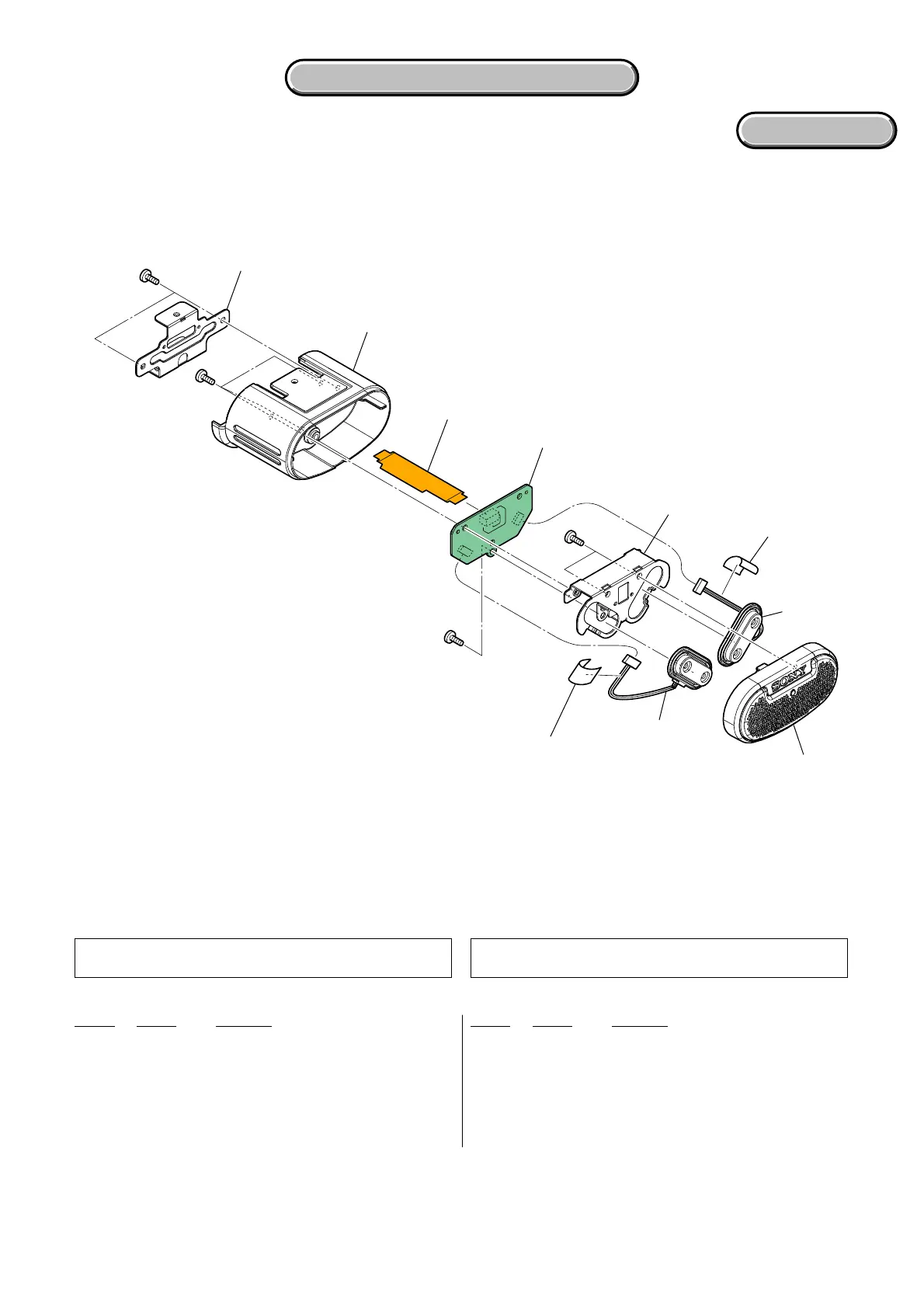

551 X-2320-887-1 GRILLE (93000) ASSY, MICROPHONE
552 CAUTION TAPE (11x11)
* 553 4-119-326-01 BRACKET (F), MICROPHONE
554 A-1599-610-A MA-454 BOARD, COMPLETE
555 1-876-946-11 FP-975 FLEXIBLE BOARD
556 4-119-325-11 COVER (M), MICROPHONE
* 557 4-119-330-01 BRACKET (M), MICROPHONE
MIC901 1-542-513-21 MICROPHONE (R ch)
MIC903 1-542-513-21 MICROPHONE (L ch)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2 (Black)
#53 3-080-206-21 SCREW, TAPPING, P2 (Black)
注意： 552番は,ヒメロンT0.25(3-076-631-01)を切って使用
してください。
CAUTION : For the part of 552, cut NON WOVEN (T0.25) (3-076-
631-01) into the desired length and use it.
