HVR-Z5C/Z5E/Z5J/Z5N/Z5P/Z5U

Fig. 6-1-1 (1)

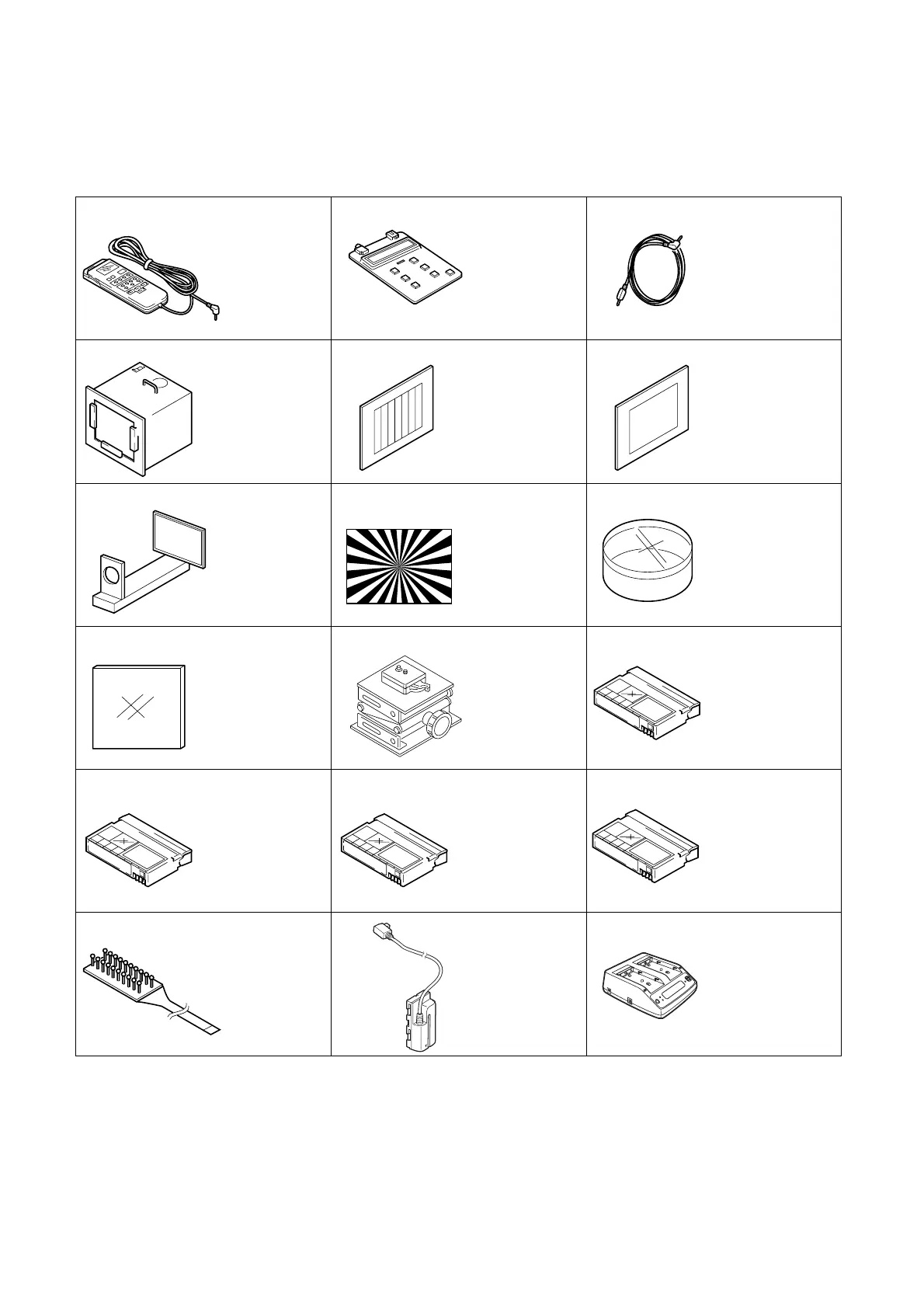

1-2. List of service tools

• Oscilloscope • Color monitor • Regulated power supply

• Digital voltmeter • Frequency counter • Audio level meter

• Balanced audio generator

• Calculating machine capable of calculating hexadecimal numbers

J-13

Tracking standard

(XH2-1A1)

8-967-999-03

J-14

SW/OL standard

(XH2-3)

8-967-997-11

J-15

Audio operation check

for NTSC (XH5-3)

8-967-997-51

for PAL (XH5-3P)

8-967-997-55

J-10

J-9J-7

Small pattern box

PTB-1450

J-6082-557-A

J-4

Color bar chart

For PTB-1450:

J-6082-559-A

J-5

Clear chart

For PTB-1450:

J-6082-560-A

J-6

Siemens star chart

J-6080-875-A

Filter for color

temperature correction

(C14)

J-6080-058-A

J-11

ND filter 1.0

J-6080-808-A

ND filter 0.4

J-6080-806-A

ND filter 0.1

J-6080-807-A

J-8

Flange back

adjustment jig

J-6082-563-A

J-12

Camera table

J-6082-384-A

J-1

Adjustment remote

commander

(RM-95)

J-6082-053-B

J-16

System operation check

for NTSC (XH5-5)

8-967-997-61

for PAL (XH5-5P)

8-967-997-66

J-18

J-3

LANC cable

J-6082-442-A

J-2

Adjustment remote

commander

(NEW LANC JIG)

J-6082-565-A

CPC-13 jig

J-6082-443-A

J-17

AC Adaptor/Charger

(AC-VQ1050)

1-479-580-12

Connecting Cord

(DK-415)

1-782-361-15
