DISASSEMBLY AND PARTS LIST
18
1-2. KD-49X Series
KD-43X720F&KD-49X720F&KD-49X725F&KD-49X727F&KD-55X720F&KD-55X725F&KD-55X727F
1
4-734-425-01 SCREW M4x16 4
REF. No. PART No. DESCRIPTION REMARK
1 A-2216-829-A STAND ASSY L for all region
A-2216-831-A STAND ASSY R for all region
2 4-737-534-01 LABER SIDE IO for all region
3 4-737-535-01 LABER REAR IO for UC2 region
4-737-536-01 LABER REAR IO for LA1/LA8/AR4/CO1 region
4 4-737-537-01 LABER BOTTOM IO for UC2/LA1 region
4-737-538-01 LABER BOTTOM IO for LA8/AR4/CO1 region

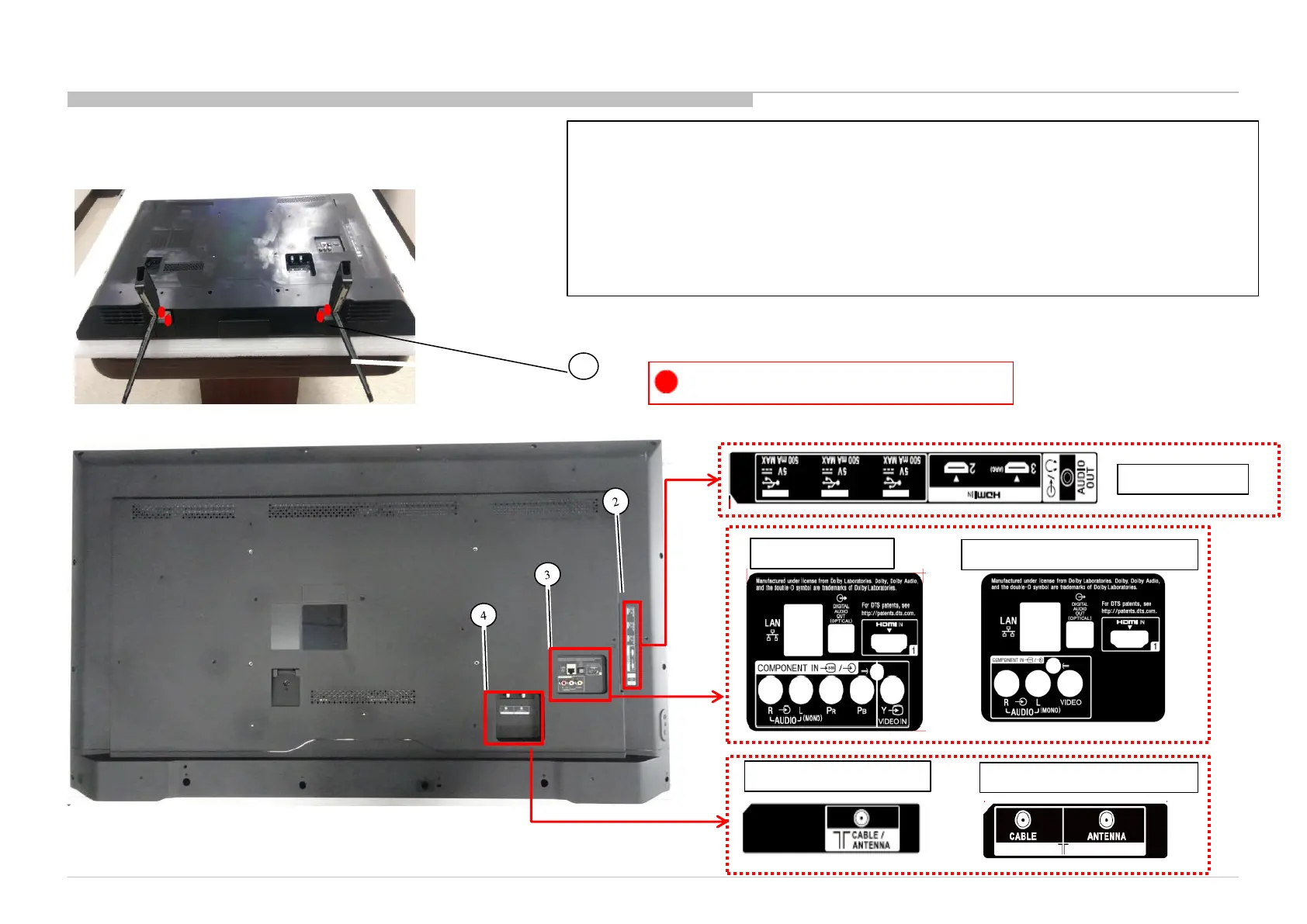

1-2-1. BASE STAND
For all region
For UC2 region
For LA1/LA8/AR4/CO1 region
For UC2/LA1 region
For LA8/AR4/CO1 region
