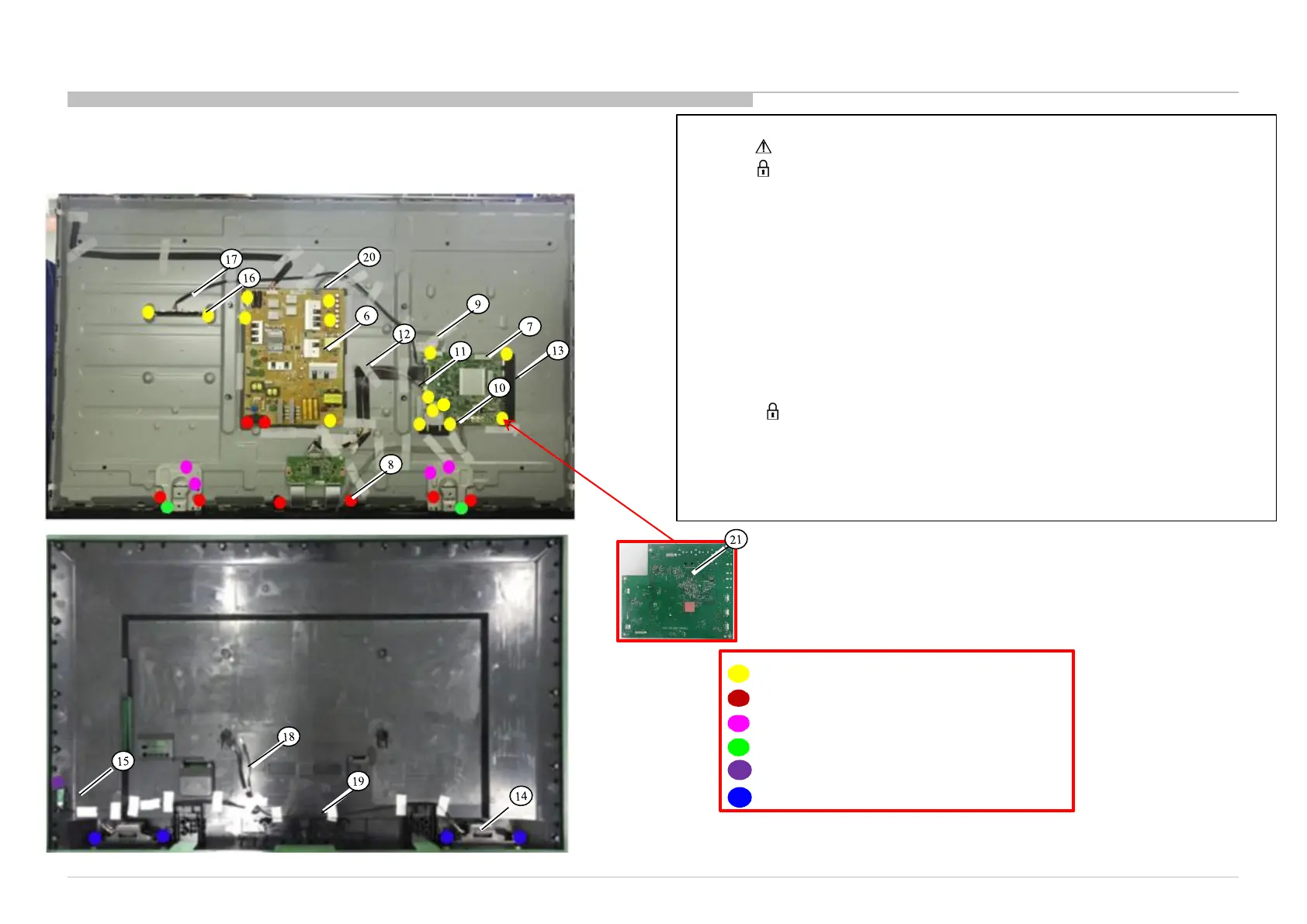

DISASSEMBLY AND PARTS LIST
1-3-3. POWER BOARD, A BOARD ,H BOARD,KEY
BOARD,SPEAKER AND WIFI ANTENNA
1-3. KD-55X Series
KD-43X720F&KD-49X720F&KD-49X725F&KD-49X727F&KD-55X720F&KD-55X725F&KD-55X727F
4-595-216-01 SCREW M3x6 15
4-595-217-01 SCREW M3x8 8
4-734-425-01 SCREW M4x10 4
7-685-646-79 SCREW T3x8 2
4-739-674-01 SCREW T4x10 4
2-345-219-11 SCREW T3x6 1
REF. No. PART No. DESCRIPTION MARK
6 1-493-497-11 MOUNTED PWB POWER UNIT (PSU)
7 1-897-301-11 MOUNTED PWB A (MB) for UC2 region
1-897-299-11 MOUNTED PWB A (MB) for LA1 region
1-897-297-11 MOUNTED PWB A (MB) for LA8 region
1-897-296-11 MOUNTED PWB A (MB) for AR4 region
1-897-295-11 MOUNTED PWB A (MB) for CO1 region
8 1-897-276-11 MOUNTED PWB H (IR)
9 1-910-113-29 CONINECTOR ASSY 16P (MB-PSU)
10 1-910-113-36 CONINECTOR ASSY 16P (MB-IR-KEY)
11 1-910-113-34 CONINECTOR ASSY 4P (MB-SP)
12 1-910-113-42 LVDS CABLE(MB-Panel)
13 4-737-482-01 BRACKET SIDE IO
14 1-859-295-11 LOUDSPEAKER(10W)
15 1-895-957-11 MOUNTED PWB KEY (UNDER KEY MODULE)
16 1-897-294-11 WIFI MODULE(WITH ANTENNA)
17 1-910-113-04 CONNETOR ASSY 8P(MB-WIFI)
18 1-910-113-37 CONINECTOR ASSY 16P (MB-IR-KEY)
19 1-910-113-33 CONINECTOR ASSY 4P (MB-SP)
20 4-737-523-01 SHEET, INSULATION
21 4-739-673-01 THERMAL PAD
