9

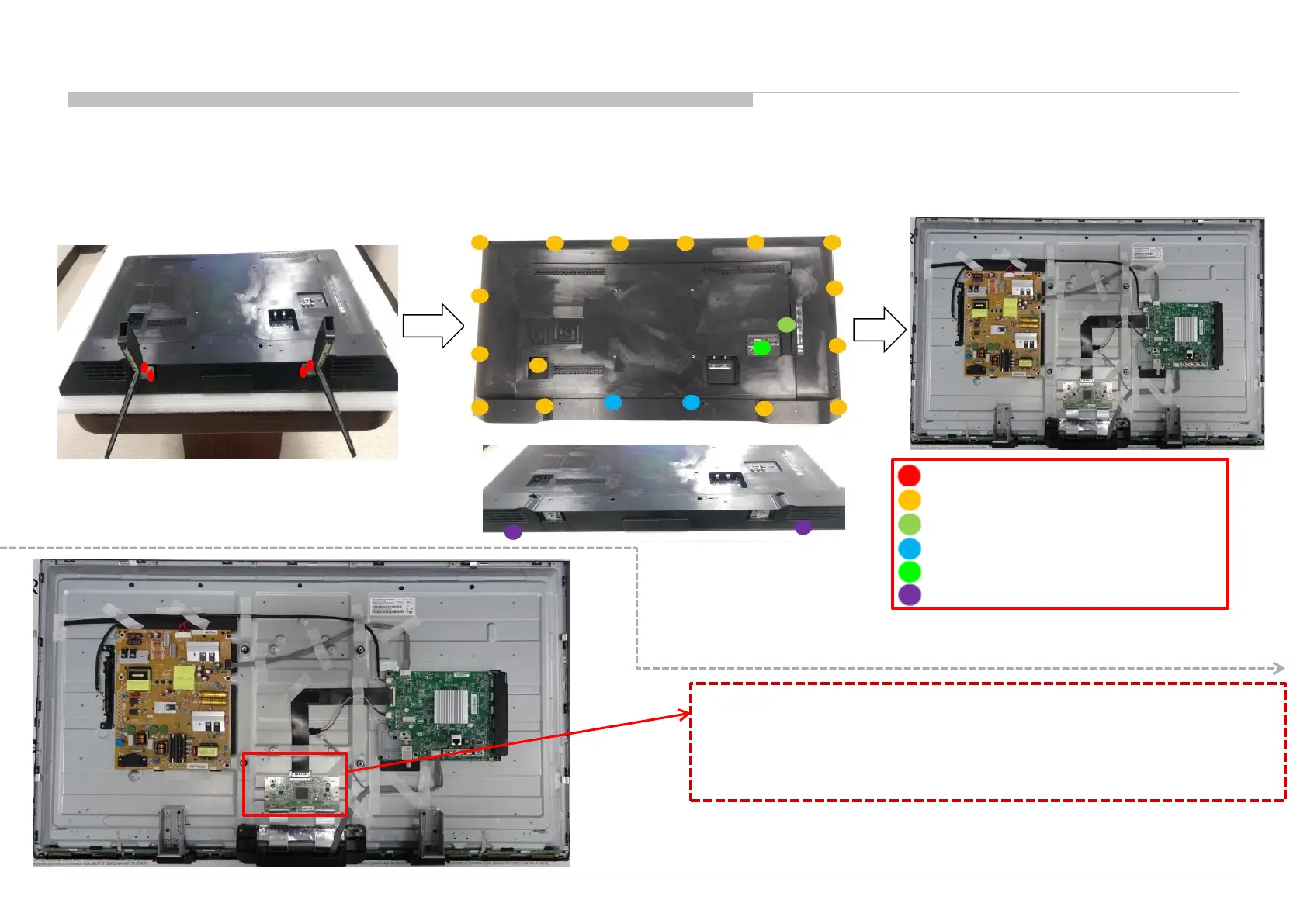

SERVICE POSITION
2. Remove all screws on the Rear Cover to
Bezel & Main Board & Bracket (21 screws)
1. Remove all screws on the Stand
to main unit (4 screws)
3. After removing rear cover , lie down the main unit
to a surface for following test/repair.
As for this model, the bottom of rear cover is installed between the stand assy and the panel.
Therefore according to the following procedure when performing adjustment and operation check after the part replacement.
Note: Remove rear cover, then assemble the stand to main unit. This
will cause the stand with main unit fit closely, scratch or deformation
may occurred easily on the stand or bezel deco.
Attention: This photo is based on Sony criteria for appearing standing
the main unit after removing back cover and assembling the stand. But
considering mechanical design of the models and normal service
process, it is not recommended to keep main unit standing by this
status for repairing/testing at repair center. Please pay attention for
avoiding possible scratch/deformation occurred.
<KD-43X SERIES>
KD-43X720F&KD-49X720F&KD-49X725F&KD-49X727F&KD-55X720F&KD-55X725F&KD-55X727F
4-734-425-01 SCREW M4x16 4
7-682-903-19 SCREW M3x6 15
7-682-247-09 SCREW M3x6 1
4-595-221-01 SCREW T3x8 2
4-734-427-01 SCREW T3x6 1
4-734-427-01 SCREW T3x6 2
