24
DISASSEMBLY
AND PARTS
LIST
1-3
--

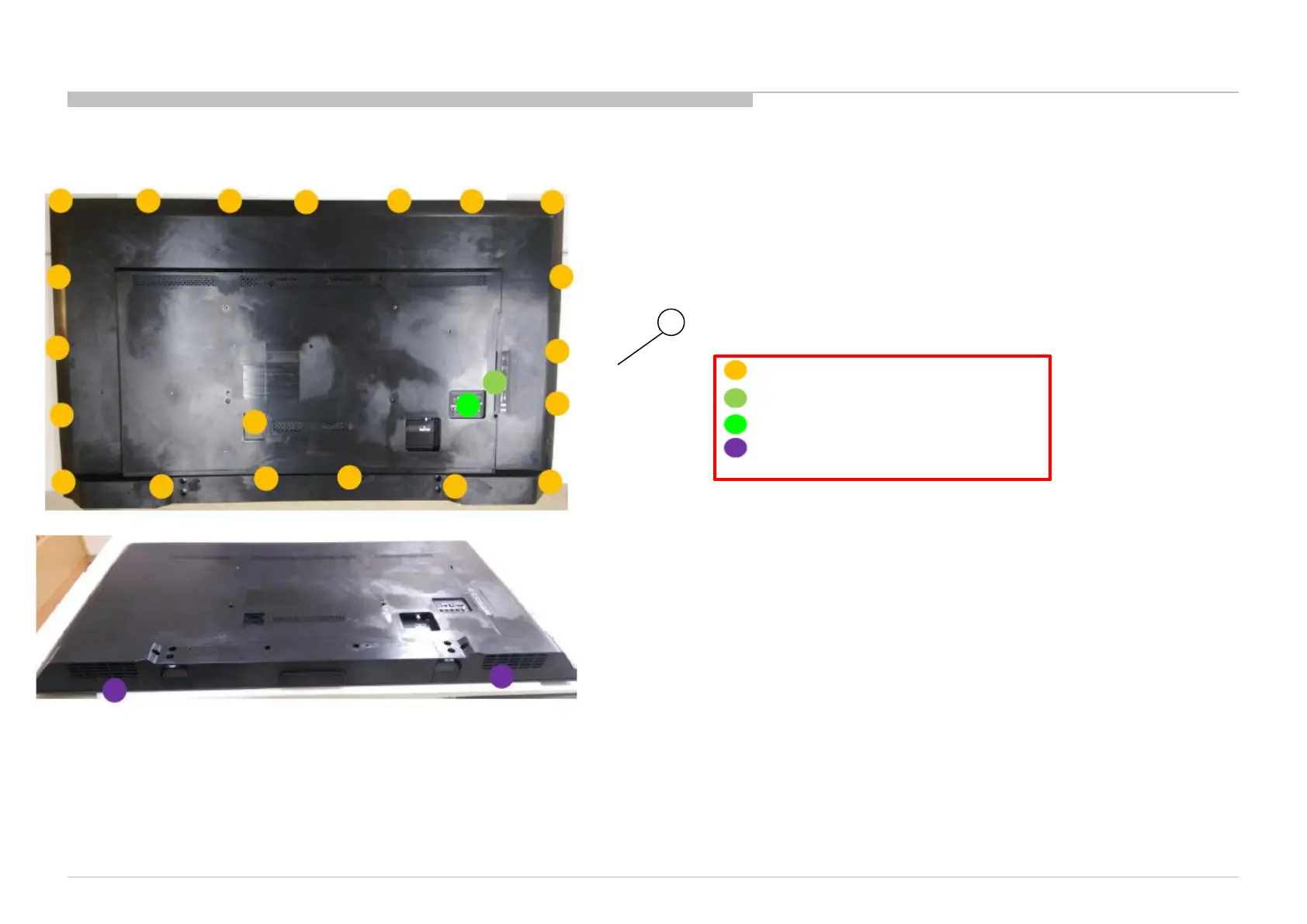

2. REAR COVER
1-3. KD-55X
Series
KD
-43X
720F&KD-49X
720F&KD-49X725F&KD-49X727F&KD-55X720F&KD-55X725F&KD-55X72
7F
5
7-682-903-19 SCREW M3x6 20
7-682-247-09 SCREW M3x6 1
4-695-267-01
SCREW
T3x
8 1
4-734-427-01 SCREW
T3x
6 2
REF. No.
PART No.
DESCRIPTION
REMARK
5 4-737-481-01 COVER REAR for all region
23
25
Table of Contents
Table of Contents
3
Warnings and Cautions
4
Use Caution When Handling the Lcd Panel
5
Safety Check-Out
6
Self Diagnosis Function
8
Service Position
9
Sec 1. Disassembly and Parts List
12
Kd-43X Series
13
Base Stand
13
Rear Cover
14
Power Board, a Board and Speaker
15
LCD PANEL and COVER, BOTTOM
16
1-1-5.Miscellaneous
17
Kd-49X Series
18
Base Stand
18
Rear Cover
19
Power Board, a Board and Speaker
20
LCD PANEL and COVER, BOTTOM
21
1-2-5.Miscellaneous
22
Kd-55X Series
23
Base Stand
23
Rear Cover
24
Power Board, a Board and Speaker
25
LCD PANEL and COVER, BOTTOM
26
1-3-5.Miscellaneous
27
How to Disassemble Rear Cover [KD-43X Series]
28
How to Disassemble Rear Cover [KD-49X Series]
29
How to Disassemble Rear Cover [KD-55X Series]
30
Assembly the PSU Support Pin(KD-43X Series)
31
Assembly the PSU Support Pin(KD-49X Series)
32
Assembly the PSU Support Pin(KD-55X SERIES )
33
How to Disassemble LVDS Cable(KD-43X SERIES)
34
How to Disassemble LVDS Cable(KD-49X SERIES)
35
How to Disassemble LVDS Cable(KD-55X SERIES)
36
How to Disassemble H Board
37
How to Disassembly KEY Board
38
How to Disassembly WIFI Board
39
How to Disassembly TUNER
40
How to Disassembly and Assemble the Front Bezel
41
1-18.How to Assemble the Rattle-Noise Countermeasure (43)
44
1-19.How to Assemble the Rattle-Noise Countermeasure (49)
51
1-20.How to Assemble the Rattle-Noise Countermeasure (55)
58
Sec 2.Adjustment
67
Sec 3. Diagrams and Chassis Structure
72
Block Diagram
72
Connector Diagram
75
Circuit Boards Location
76
Tape Location(43)
79
Tape Location(49)
80
Tape Location(55)
81
APPENDIX-1 Trouble Analysis Flow
82
APPENDIX-2 Software Data Update
83
APPENDIX-3 Service Mode
85
APPENDIX-4 Assembly Parts
93
