KF-42E200A/42E201A/50E200A/50E201A
KF-42E200A/42E201A/50E200A/50E201A
25

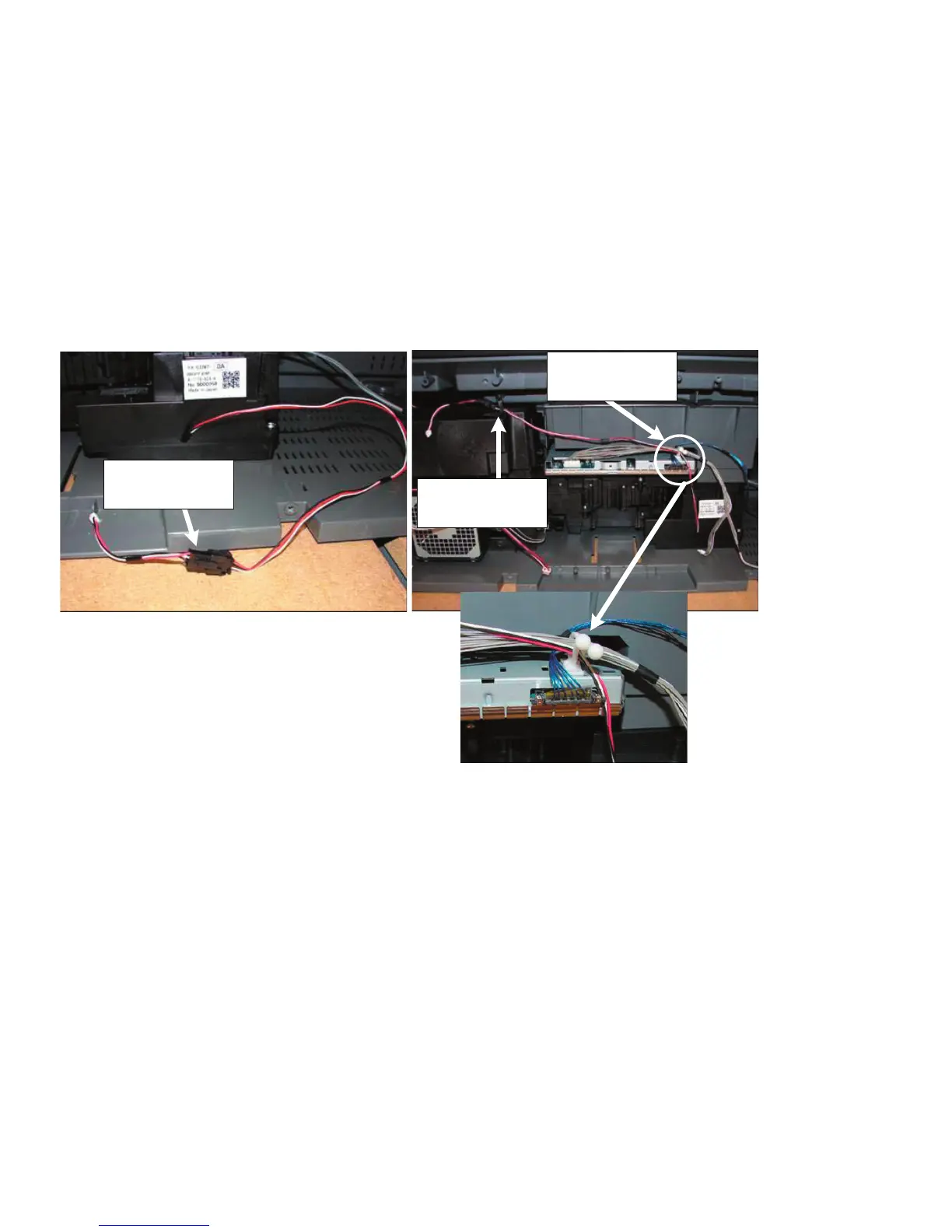

Install Conn Assy
1-910-024-21 to "FAN1"
Optical Block Fan.
Dress 15P CN9000 [C]
LVDS Connector and Fan
Connector to Purse Lock
on [C] Shield
Route Optical Block Fan
to Wire Holder to avoid
being “Pinched” when [G]
Shield is installed
C BLOCK WIRE DRESSING
